Description
1. Product Overview

High-Precision Polarization-Maintaining Fiber Optic Patch Cord (PM Fiber Patchcord)

GRACYFIBER's PM Fiber Patchcord is a high-precision interconnect designed for extremely demanding polarization state preservation and low-loss optical transmission requirements.

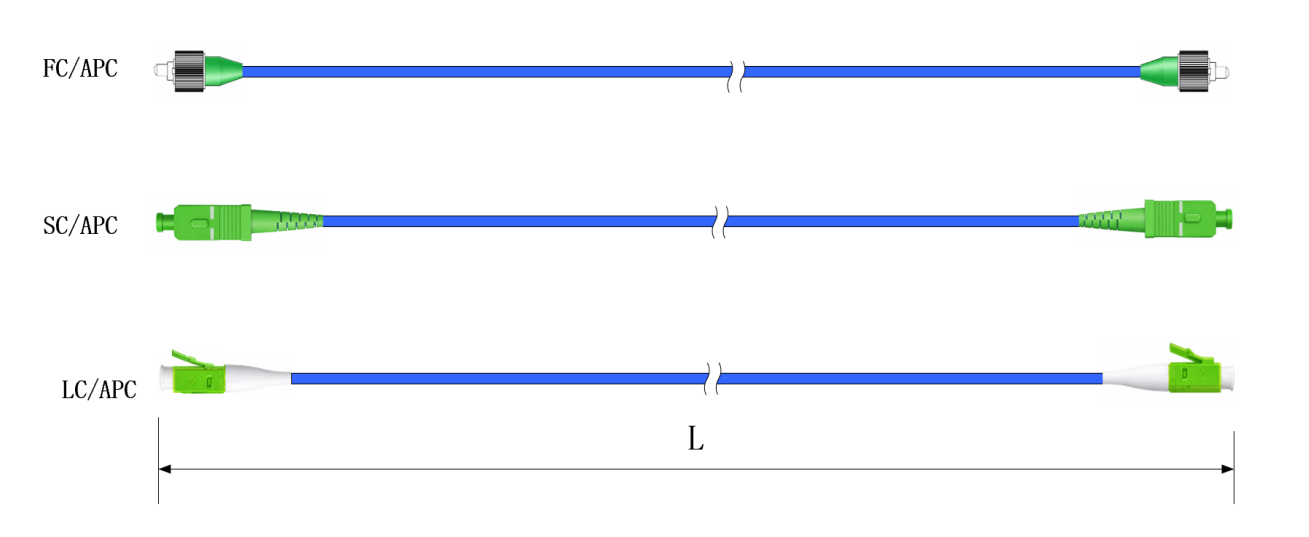

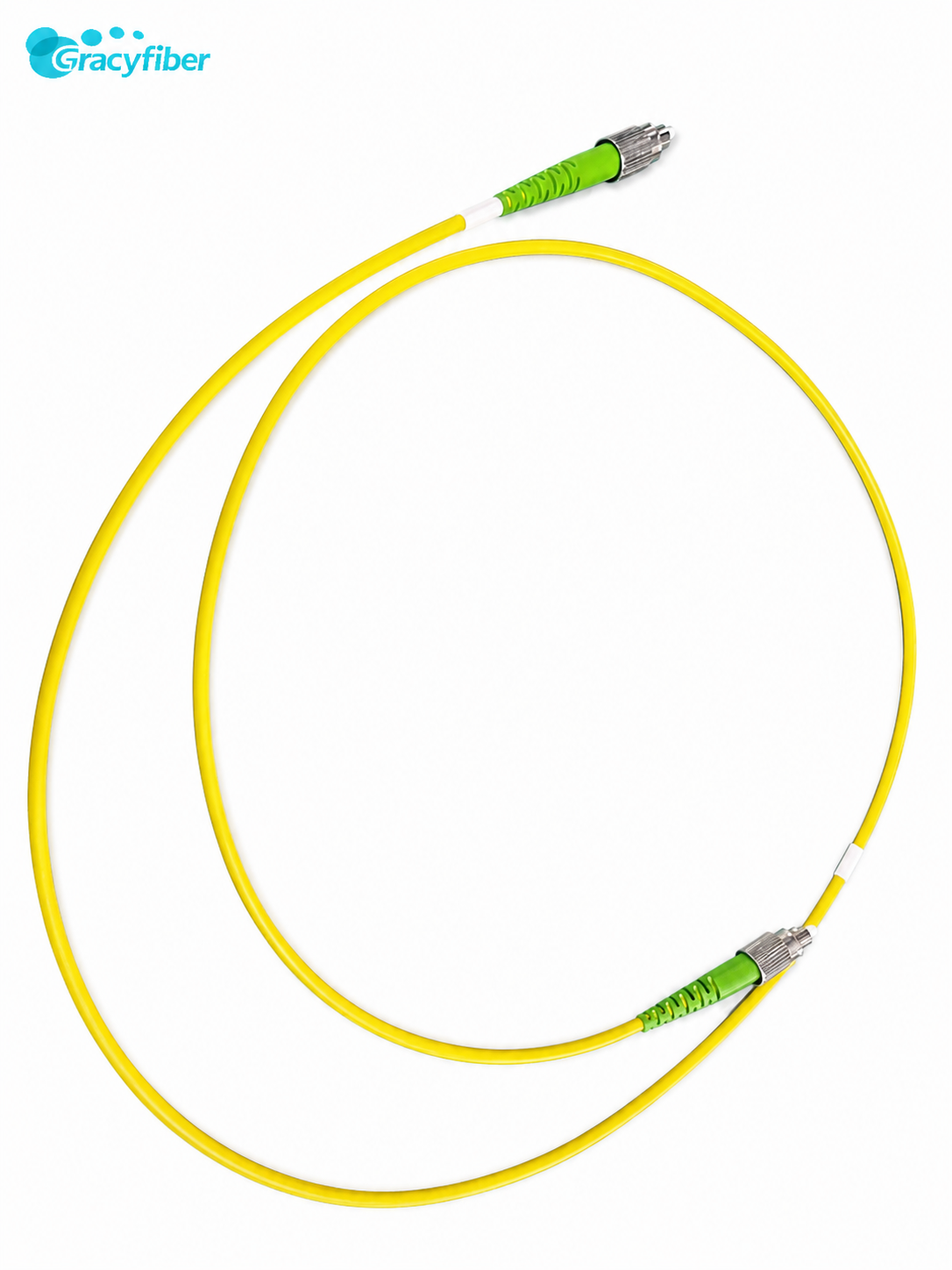

High Precision Polarization Maintaining Fiber Optic Patch Cord , PM Fiber PatchcordHigh Precision Polarization Maintaining Fiber Optic Patch Cord , PM Fiber Patchcord

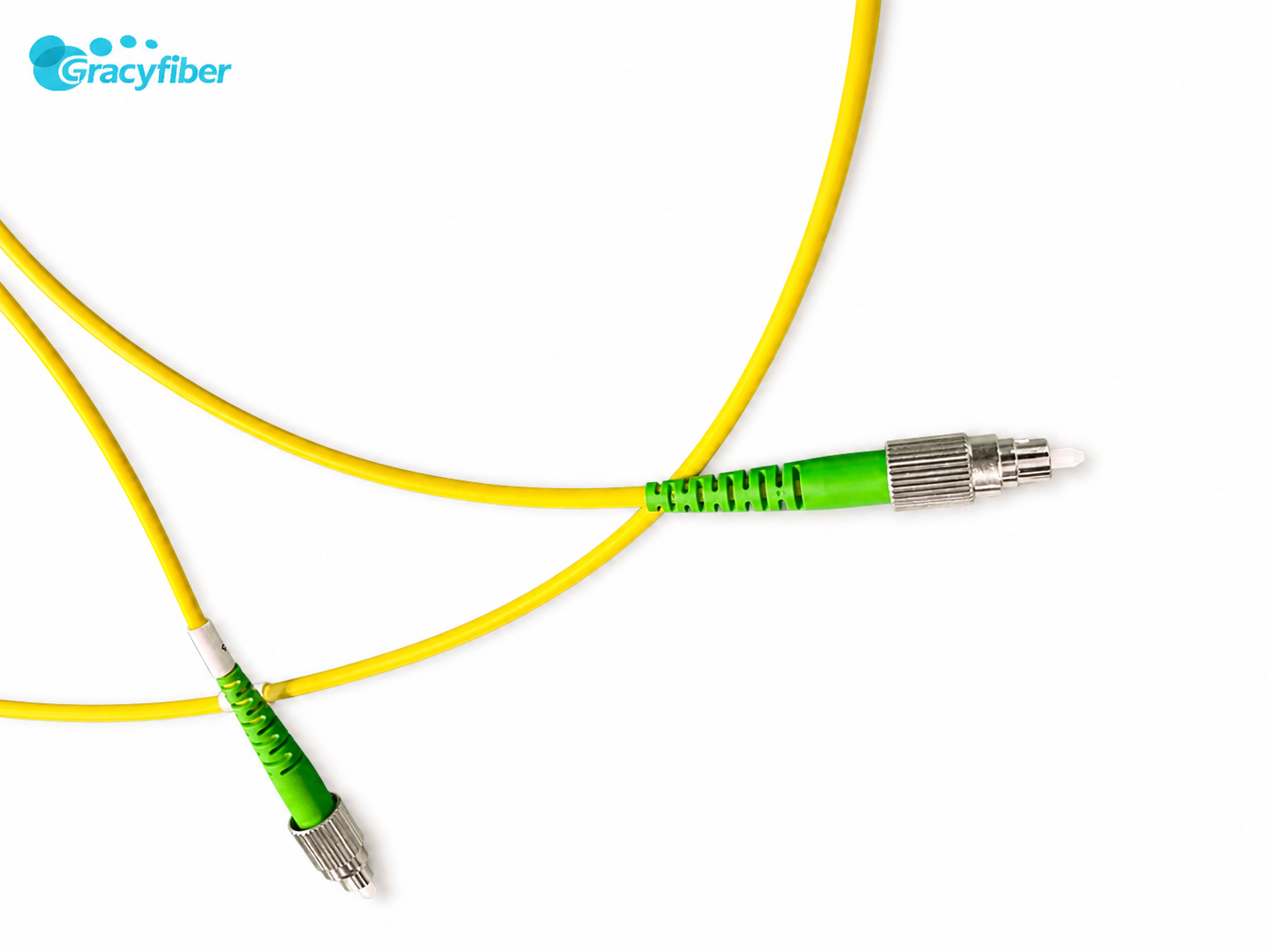

High Precision Polarization Maintaining Fiber Optic Patch Cord , PM Fiber Patchcord

2. Product Features
Parameter Unit Value
Channel Configuration - 1Core,2Core
Operating Wavelength nm 1310/1480/1550 980/1064 780/850 650 460 405
Operating Wavelength Range nm 1270～1625 970～1550 770～1100 620～850 460~700 400~680
Insertion Loss Max dB 0.5 0.6 1.0 1.5 2.5 2.5
Extinction Ratio Min dB 22 22 20 20 18 15
Core NA - 0.12 0.12 0.12 0.12 0.12 0.12
Mode Field Diameter Min µm 9.3±0.5 @1300 6.6±0.5 @980 5.3±1.0 @850 4.5±0.5@630 3.3 ± 0.5@ 515 3.3 ± 0.5@405
Return Loss (Min) Min dB 45 @ PC, 55 @ APC
Power Handing (Max) mW 500 300 300 100 100 100
Fiber Type - PM1300 /PM1550 PM980 PM780 PM630 PM460 PM405
Fiber Coating µm 250 µm / 900 µm Blue loose tube
Fiber Length m 1,2,3,5,10,15
Connector - FC/ SC/LC/ST/E2000,or Customized
Operating Temperature °C -5~65
Storage Temperature °C -40~85


Features: Extreme polarization extinction ratio (ER ≥ 23 dB) and precise axial alignment.


Features: Ultra-low insertion loss (≤0.3 dB) and high return loss protection

Features: Flexible working axis customization (Slow / Fast Axis)


Features: Exceptional industrial-grade environmental stability


3. Applications:

Our PM fiber optic patch cords serve as the "super interconnecting nerves" of high-precision optoelectronic systems: Fiber Lasers: Used for stable polarization beam distribution within high-power continuous or pulsed lasers.

4. Part Number Configuration
Patch Cord - 1 3 4 4 5 - 8 9
- Working Wavelength Fiber Type Fiber core Count Jacket Type Fiber Length - Connector Type Working Axis
- XX XXX XX XX XX - X X
PM FP
40=405nm P40=PM405 1C=Sigle Core 02=Barefiber 05=0.5m
1=FC/UPC B=Dual Axis
78=780nm P78=PM780 2C=Daul Core 06=0.6mm Loose Tube 10=1.0m 2=FC/APC S=Slow Axis
98=980nm P98=PM980 XX= Customized 09=0.9mm Loose Tube 30=3.0m 3=SC/UPC F=Fast Axis
13=1310nm P13=PM1300
20=2.0mm PVC Tube XX= Customized 4=SC/APC X= Customized
15=1550nm P15=PM1550
30=2.0mm PVC Tube
5=LC/UPC
XX= Customized XXX= Customized
XX= Customized
6=LC/APC





X= Customized







Example Part Number
PMFP-13P131C0910-2S
PM Patch cord ,Work Wavlelength 1310nm, Fiber is PM1300nm,
Fiber length 1 m with 0.9mm Blue Losse Tube ,FC/APC Connector, slow axis aligned to key.
