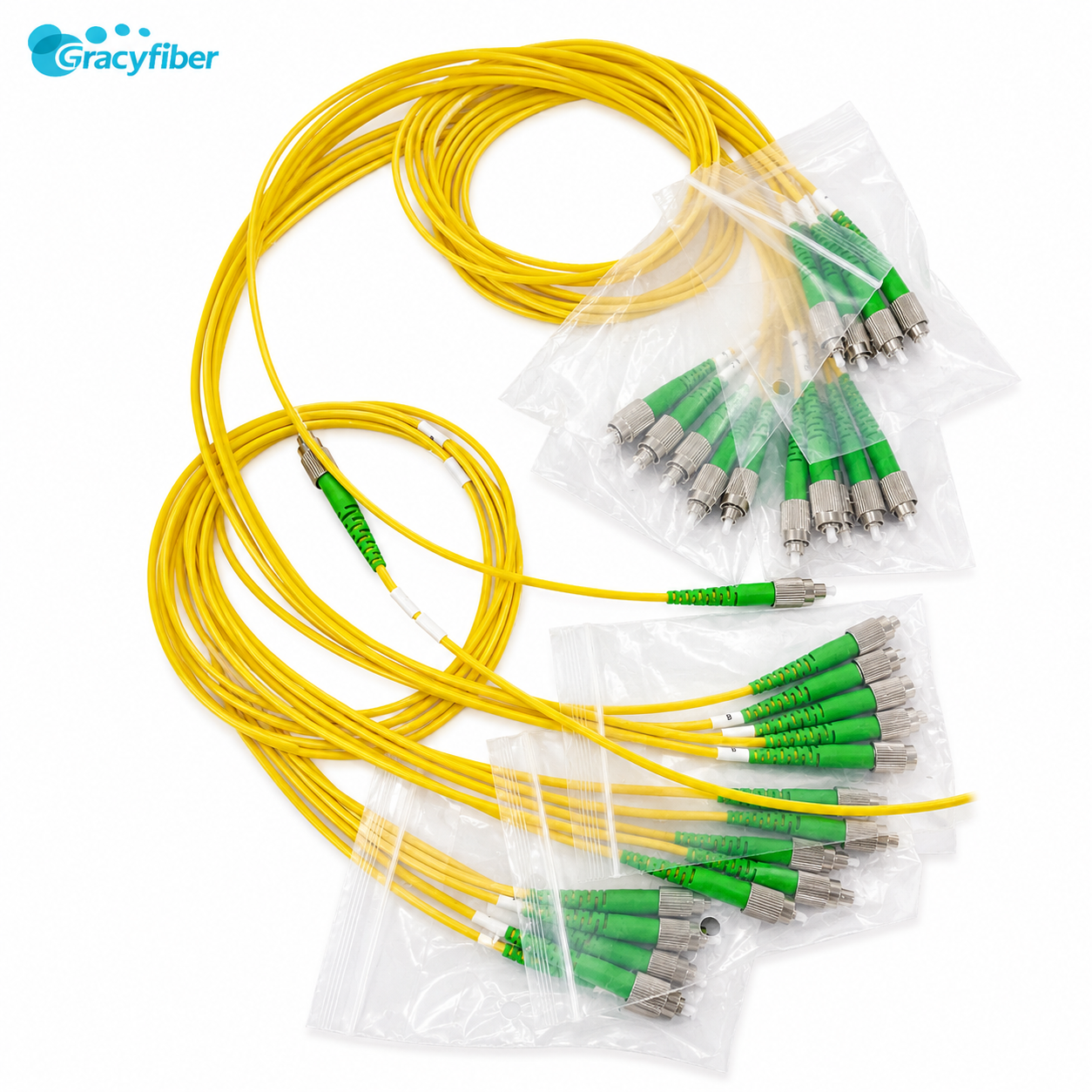

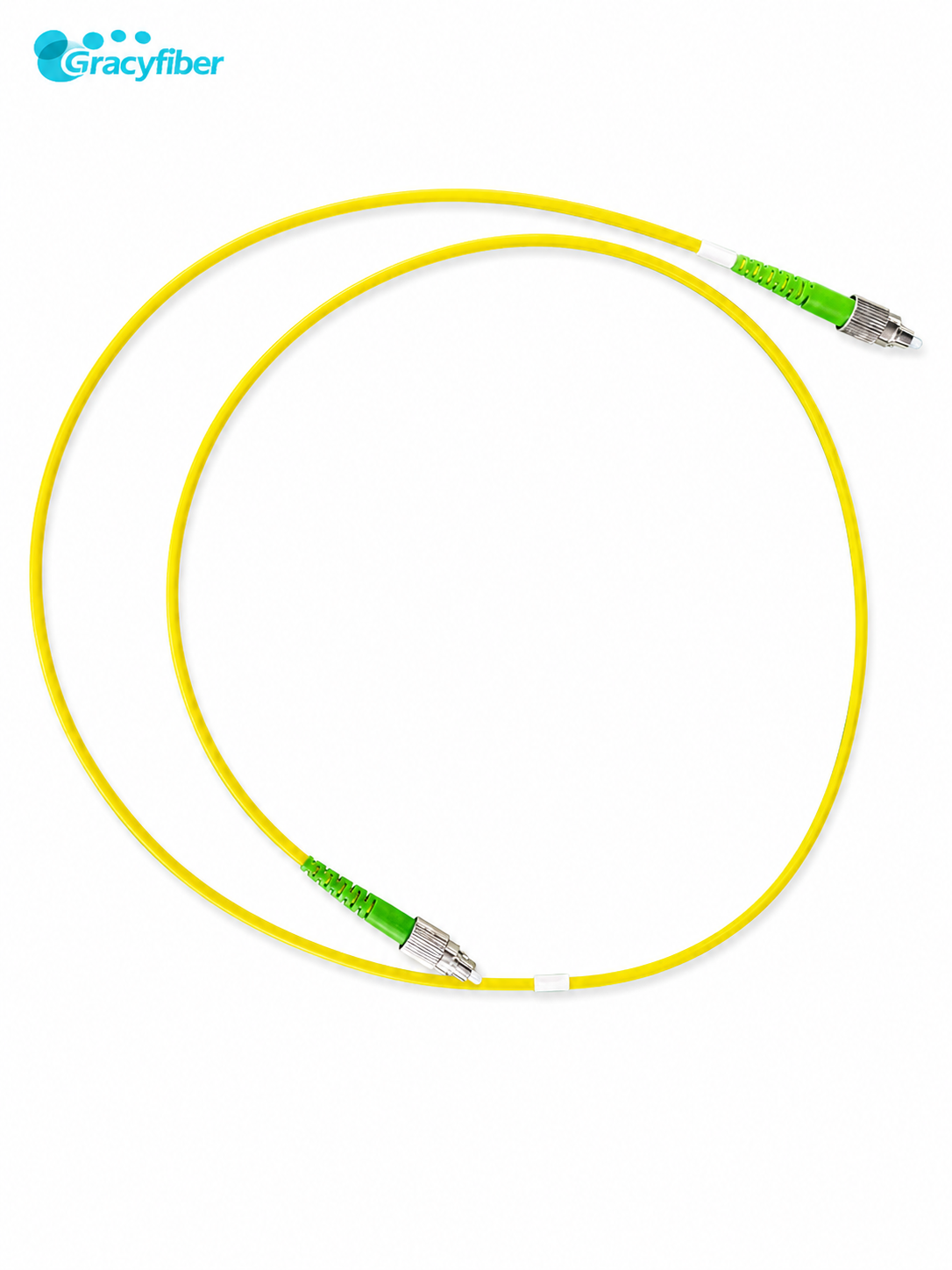

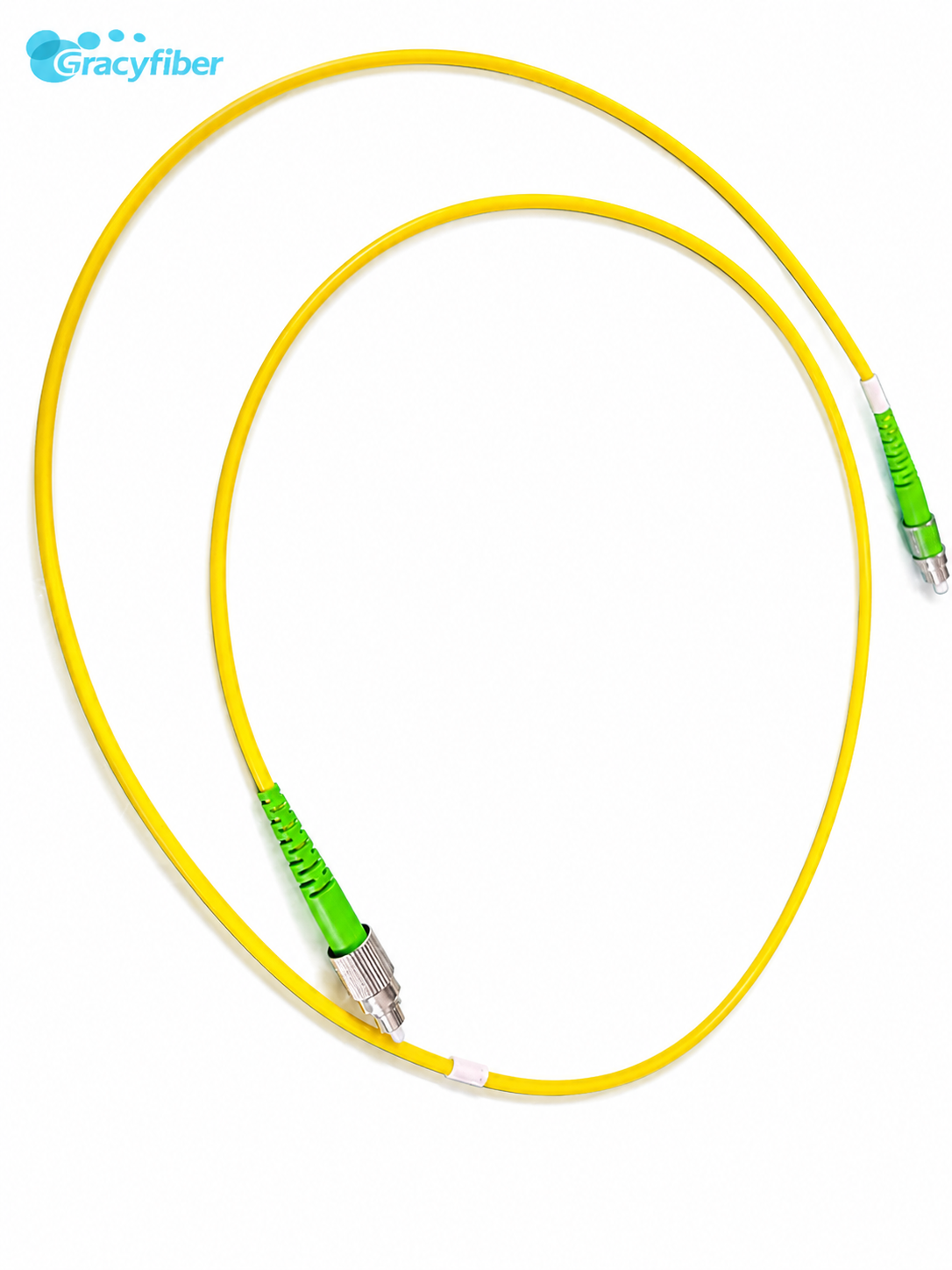

PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
Specifications
Model Number :
PMPC-155SA0910-22
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C, T/T
Name :
Polarization Maintaining Patch Cable
Connector Type :
FC/APC
Wavelength :
1550nm
Fiber Type :
PM1550 (Corning Panda)
Insertion Loss :
≤0.3dB
Return Loss :
≥55dB
Extinction Ratio :
≥23dB
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Description

PM1550nm Patch Cord Polarization Maintaining Fiber Optic Patch Cord FC APC Low Insertion Loss High Return Loss For Fiber Laser Amplifier And Optical Test

1. Product Introduction

This PM1550nm polarization-maintaining fiber optic patch cord is specifically designed for 1550nm band fiber optic systems with stringent polarization requirements.

PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return LossPM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss

2. Product Features

Parameter Value
Connector Type / FC/APC
Wavelength nm 1550
Insertion Loss dB ≤0.3
Return loss UPC Type dB ≥50
APC type ≥55
Extinction Ratio 23℃ dB ≥23
Fiber Type / PM1550(Corning Panda)
Fiber Length cm 100±5
Key Orientation / Slow Axis
Axis Alignment deg ±3

3. Applications

  • Polarization-maintaining fiber laser systems (intracavity or extracavity connections)
  • Fiber optic amplifier systems and testing
  • Precision optical testing instruments and measurement terminals
  • Optical experimental platforms for coherent detection, interferometry, and polarization analysis
  • Short-distance system interconnection between modules, cabinets, and between equipment and benchtop instruments.

PM1550nm Polarization Maintaining Patch Cable FC APC Low Insertion Loss High Return Loss
