PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
Specifications
Model Number :
PMPC-155SA0910-22
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C, T/T
Fiber Type :
PM1310, PM1550, PM980, PM850
Coating Diameter :
245 µm
Polarization Mode Dispersion :
≤ 0.5 ps/km
Beat Length :
3.5 mm
Numerical Aperture :
0.12
Cladding Diameter :
125 µm
Name :
PM Fiber Patch Cord
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Description

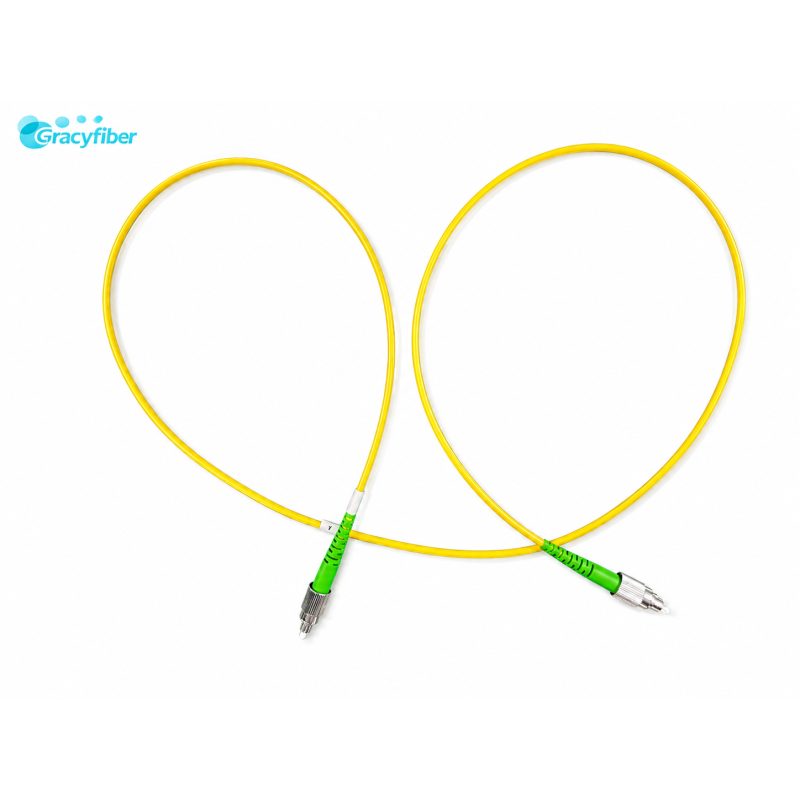

Polarization Maintaining Fiber Patchcord PM Fiber Patch Cord FC APC FC UPC SC LC 1310 1480 1550 980 1064 850nm for Fiber Laser Amplifier Testing Instrument

1. Product Overview

This product is a Polarization Maintaining Fiber Patchcord, used to achieve highly stable, high extinction ratio optical signal connections and extensions in various polarization-maintaining fiber systems.

PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nmPM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm

2. Product Advantages
  • Low Insertion Loss, Lower Link Loss


  • High Return Loss and High Extinction Ratio


  • Multi-wavelength, multi-fiber type coverage


  • Slow Axis Alignment, Controllable Polarization Direction


  • Flexible Length, Customizable


  • High Stability and Environmental Adaptability

3. Product Features (Key Features)
Parameter Value
Connector Type / FC/UPC, SC/UPC,LC/UPC,FC/APC, SC/APC,
Wavelength nm 1310,1480, 1550 980, 1064, 850
Insertion Loss dB ≤0.3 ≤0.5 ≤0.8
Return loss UPC Type dB ≥50
APC type ≥55
Extinction Ratio 23℃ dB ≥23 ≥23 ≥22


4. Applications
  • Fiber Laser
  • Testing Instrument
  • Fiber Amplifier
  • Optic Lab Use

PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm
