Perkins Engine 2000KVA Open Diesel Generator Set Copy Stamford
Perkins Engine 2000KVA Open Diesel Generator Set Copy Stamford
Perkins Engine 2000KVA Open Diesel Generator Set Copy Stamford
Perkins Engine 2000KVA Open Diesel Generator Set Copy Stamford
Specifications
Brand Name :
Perkins
Model Number :
GP P1600
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Model :
4016TAG2A/1766
Rated Voltage (V) :
400/230
Rated Current (A) :
2880
Speed Governing :
Electronic
Open Type-Weight (kg) :
9500
Open Type-Dimension (L*W*H) (mm) :
4800*1700*2550
Rated Frequency (Hz) :
50
Description

Perkins engine 4016TAG2A 50HZ 2000KVA diesel generator set with stamford / copy stamford

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Meccalte, Stanform, GP...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Generator data

Diesel Generator GPP1600 (three phase)

Prime Power (kw/kva)

1600/2000

Standby Power (kw/kva)

1760/2200

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

2880

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Open Type-Dimension (L*W*H) (mm)

4800*1700*2550

Open Type-Weight (kg)

9500

Soundproof Type- Dimension (L*W*H) (mm)

/

Soundproof Type-Weight (kg)

/

Fuel Tank Capacity(L)

/

Continuous Running Time(hr.)

6

Engine data

Model 4016TAG2A

Engine brand

Perkins

Output Power (kw)

1766

Cylinder No. & Config.

16 in “V”

Combustion System

direct injection

Compression Ratio

13.6:1

Displacement (L)

61.123

Bore X Stroke (mm)

160*190

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

316

Fuel Consump. (g/kw·h)

209

Oil Capacity (L)

237.2

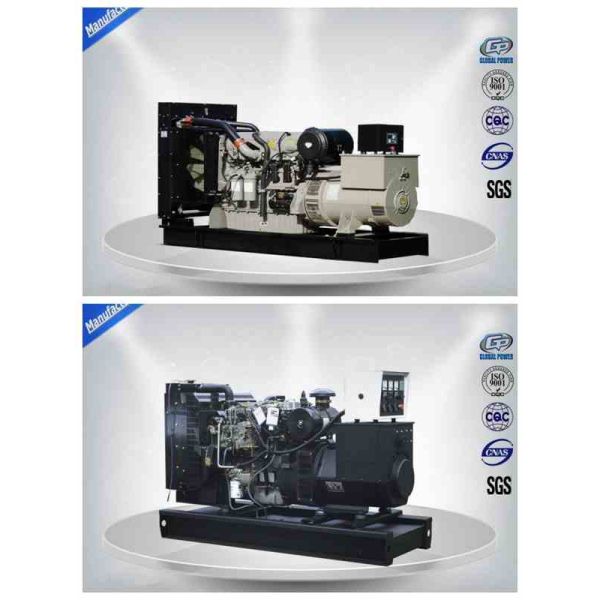

Our Picture :

Perkins Engine 2000KVA Open Diesel Generator Set Copy Stamford

Competitive service:

1) More than 15 years advanced production experience.

2) As OEM factory, we have obvious competitive in price and leading times.

3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.

5) 1000 hours warranty on the spare parts free provide & technical support in machine life.

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.
