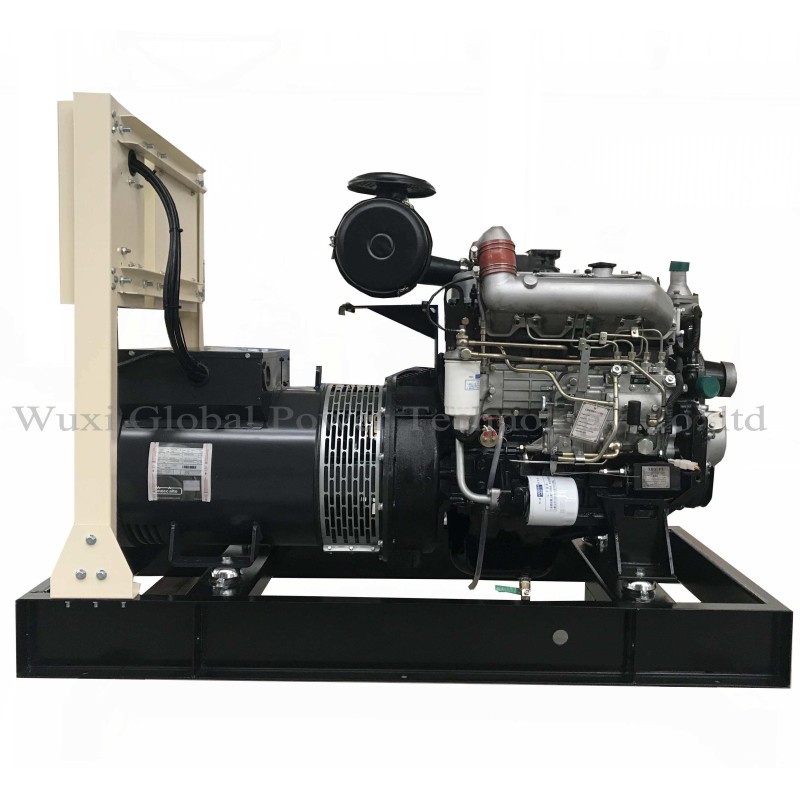

24KW / 30KVA Open Diesel Generator Set Powered by Yanmar 4TNV88-GLE sea water cooled


Global Power generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.

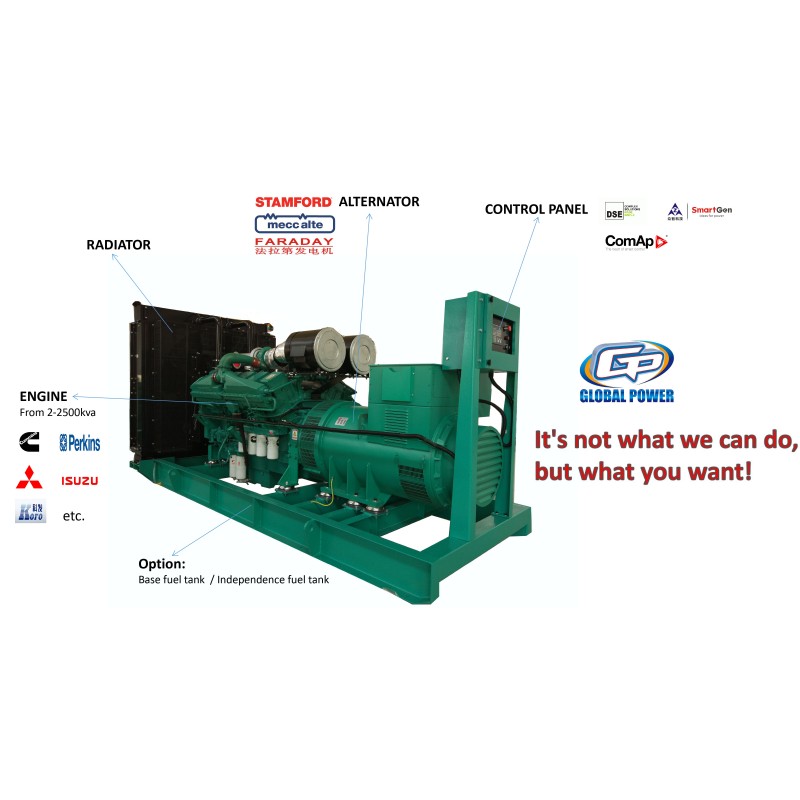

Generator Sets Standard and Optional Features

Engine:

1. 4-stroke, water-cooled diesel engine
2. Standard air filter
3. Standard fuel filter
4. Standard oil filter
5. Oil temperature sensor
6. Low coolant level sensor
7. 24V electrical system
8. Radiator with blowing fan
9. Industrial silence
10. Fuel water separator (optional)
11. Water jacket heater (optional)

12. Model 4TNV88-GLE

    Engine brand	YAMMAR
    Output Power (kw)	28
    Cylinder No. & Config.	4, in-line
    Combustion System	direct injection
    Aspiration type	Turbocharged
    Displacement (L)	2.19
    Bore X Stroke (mm)	88*90
    Engine Speed (r/min)	1500
    Starting System	24V DC Electric
    Filter System	Dry oil filter/Fuel filter/Oil filter
    Cooling system	Water-cooled
    Fuel Consump. (g/kw·h)	≤210

Alternator:

1. Class H insulation
2. IP23 Protection
3. Automatic Voltage Regulator (AVR)
4. PMG excitation
5. Single bearing alternator
6. Stamford alternator

7. Model GPI184G

   Alternator brand	Global Power
   Rated Power (kw)	25
   Excitation System	Brushless, self-exciting
   Voltage Regulation Mode	AVR
   Connection Type	3phase,4wires,”Y” connection
   Pole No.	4
   Rotation Speed (r/min)	1500
   Temperature Rise (℃)	125
   Insulation class	H
   Voltage Regulation (0 load)	≥95%～105%
   Voltage accuracy	≤±1%
   Protection Grade	IP23
   Telephone Influence Factor	TIF＜50
   Harmonic Coefficient	THF＜2%

Electrical system:

1. Maintenance-free and anti-explosion battery
2. Standard breaker
3. ABB breaker (optional)
4. ATS (optional)
5. Battery charger (optional)
6. GMS monitoring (optioanl)

Packing:

1. Engine manual
2. Alternator manual
3. Gensets operation and maintenance manual
4. Tool kit

Baseframe:

1. Forklift pockets
2. Pulling slots
3. Earth wire protection
4. Built-in anti vibration mountings
5. Fuel outlet value
6. Standard 8 hours fuel tank
7. Enlarged 24 hours fuel tank (optional)
8. Separated fuel tank (optional)

Canopy:

1. Weatherproof & sound-attenated canopy
2. Sound-absorbing material
3. Lifting lug
4. Emergency stop button
5. Inside silencer
6. Trailer generator (optional)
