50Hz 3 Phase 20KW 25KVA Small Open Diesel Generator With ComAp Controller
50Hz 3 Phase 20KW 25KVA Small Open Diesel Generator With ComAp Controller
50Hz 3 Phase 20KW 25KVA Small Open Diesel Generator With ComAp Controller
50Hz 3 Phase 20KW 25KVA Small Open Diesel Generator With ComAp Controller
Specifications
Product Name :
Small Diesel Generator
Output Type :
AC Three Phase
Rated Voltage: :
400/230V
Prime Power (kw/kva) :
20/25
Standby Power(kw/kva) :
22/28
Engine Model :
LOVOL 1003G
Alternator Brand :
Global Power GPI 184FS
Frequency :
50Hz
Weight(kg) :
600
Dimension Size(L*W*H/mm) :
1675*688*1100
Package :
Plastic Foam or Plywood Case
Control Module Brand :
DeepSea,Comap,Smartgen
Brand Name :
Global Power
Model Number :
GPL20
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negoation
Payment Terms :
T/T or LC
Supply Ability :
2,000sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF,CIF,EXW…
Description

50Hz 3 Phase 20KW / 25KVA Open Diesel Generator ,Water-cooled with ComAp Controller Diesel Generator

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door

Generator data

Diesel Generator GPL20 (three phase)

Prime Power (kw/kva) 20/25
Standby Power (kw/kva) 22/28
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 36
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 1675*688*1100
Open Type-Weight (kg) 600
Soundproof Type- Dimension (L*W*H) (mm) 2150*890*1280
Soundproof Type-Weight (kg) /
Fuel Tank Capacity(L) 120
Continuous Running Time(hr.) 8

Engine specifications

Engine

Main features:

  1. Three-cylinder, water-cooled, in line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

Model 1003G

Engine brand LOVOL
Output Power (kw) 28
Cylinder No. & Config. 3, in-line
Combustion System direct injection
Air Intake System Naturally aspirated
Displacement (L) 2.99
Bore X Stroke (mm) 100*127
Engine Speed (r/min) 1500
Speed Governing Mechanical
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Fuel Consump. (g/kw·h) ≤208
Oil Consump.(g/kw.h) ≤2.5

Alternator specifications

Alternator

Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

Model GPI 184FS

Alternator brand Global Power
Rated Power (kw) 20
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

Control system

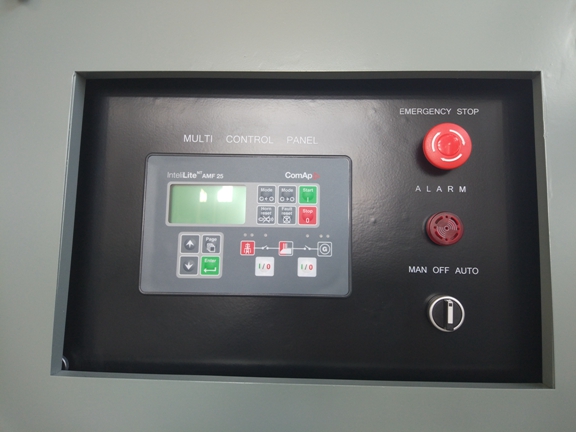

ComAp controller
