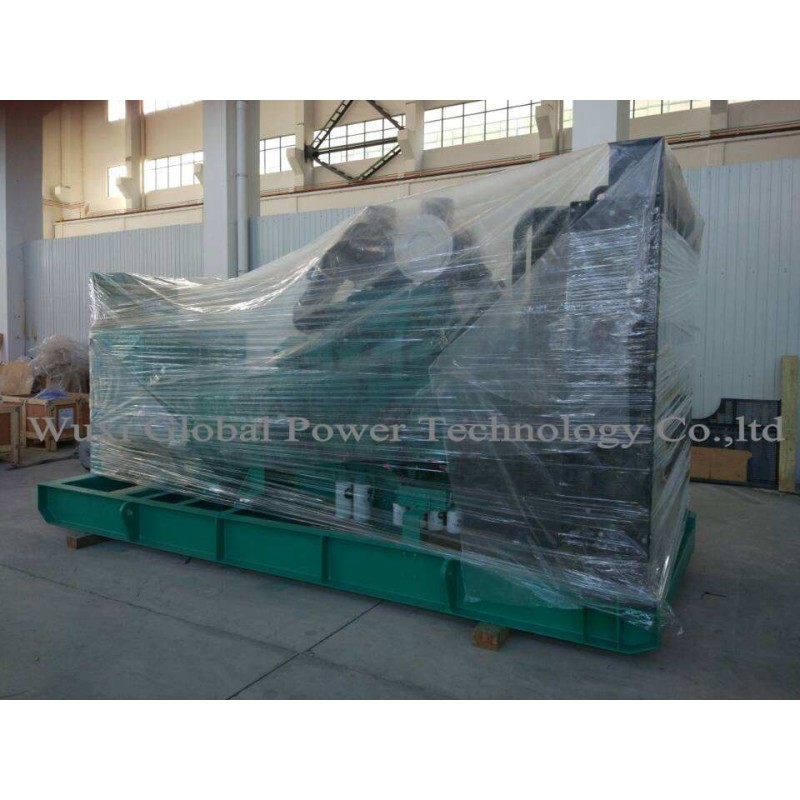

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6
470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6
470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6
470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6
Specifications
Brand Name :
Global Power
Model Number :
GPC470
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 Working Days after Received Down-payment
Packaging Details :
Plastic Foam or Plywood Case Packing
Product Name :
Compact Diesel Generator Set
Prime Power :
470 KW / 588 KVA
Stanby Power :
517 KW / 646 KVA
Rated Frequency :
50 HZ
Open Type-Dimension (L*W*H) (mm) :
3570*1550*2160
Open Type-Weight (kg) :
4050
Fuel Consumption :
208.5 g/kw.h
Description

470KW/588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins KTAA19-G6

The power ranges of Cummins series from 18Kw to 1200Kw. Features of low fuel consumption, low emission, low noise; high precision voltage regulation, good dynamic performance, compact structure, long service life; start quickly, and it can soon reach full power.

Diesel Generator GPC470 (three phase)

Prime Power (kw/kva) 470/588
Standby Power (kw/kva) 517/646
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 847
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah

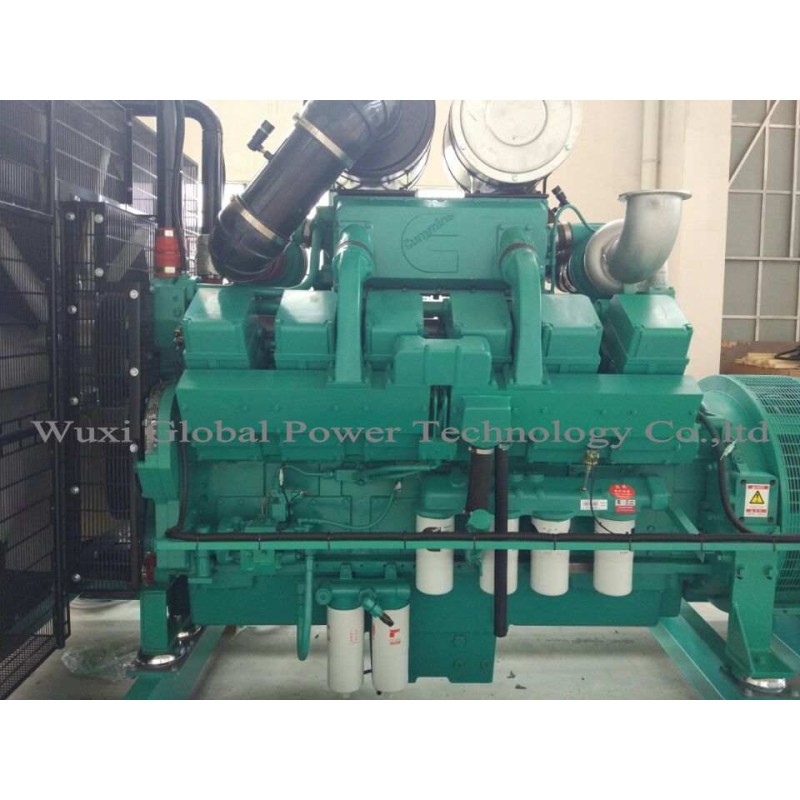

ENGINE SPECIFICATION

Model KTAA19-G6

Engine brand Cummins
Output Power (kw) 470
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 13.5:1
Displacement (L) 19
Bore X Stroke (mm) 159*159
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 96
Fuel Consump. (g/kw·h) 208.5
Oil Capacity (L) 50

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6

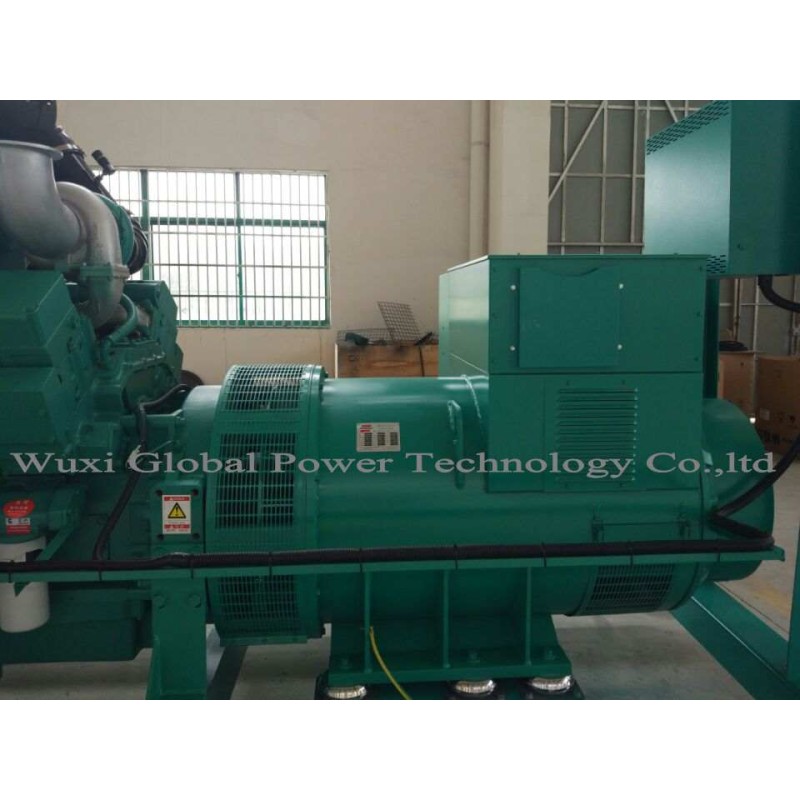

ALTERNATOR SPECIFICATION

Model GPI 5E

Alternator brand Global Power
Rated Power (kw) 480
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6

Fuel System

  • Fuel filter with integral water separator

Starting / Charging System

  • 24V starting motor(s)
  • Batteries with rack and cables
  • Battery charger

Cooling System

  • 40℃ radiator with guard size

HGM6110 controller

Main features:

  • Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  • Security password-protected programming levels
  • All parameters use digital modulation, with higher reliability and stability
  • Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  • Power supply range is wide, accommodating to different starting battery voltage environment
  • Built-in watch dog can never be dead halt, ensuring smooth program execution
  • Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
