60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2
60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2
60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2
60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2
Specifications
Brand Name :
Global Power
Model Number :
GP C470
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
$4870-$6800
Payment Terms :
T/T or LC
Supply Ability :
2,000sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF,CIF,EXW…
Product Name :
Open Diesel Generator Genset
Output Type :
AC Three Phase
Rated Voltage: :
440/254V
Prime Power (kw/kva) :
720/900
Standby Power(kw/kva) :
800/1000
Engine Model :
Cummins, KTA38-G2
Alternator Brand :
Meccalte, ECO40-VL4A
Weight(kg) :
6500
Dimension Size(L*W*H/mm) :
4450*1650*2400

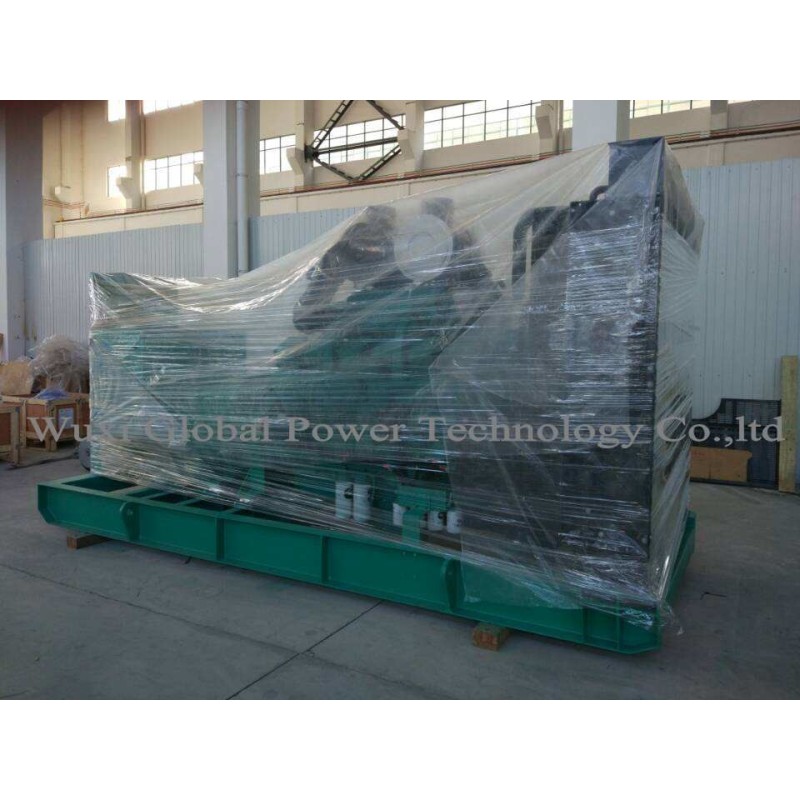

Package :
Plastic Foam or Plywood Case
Control Module Brand :
DeepSea,Comap,Smartgen
Description

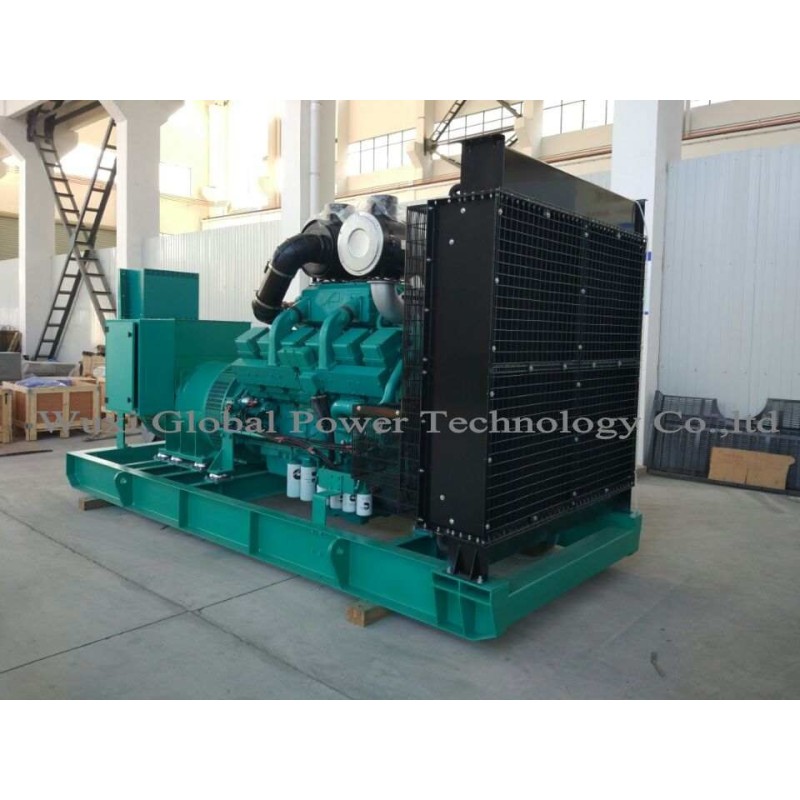

60Hz 3 Phase 720KW / 900KVA Open Diesel Generator Cummins KTA38-G2 with Burshless Alternator

Model: GP1C720

Generator data

Diesel Generator GP1C720 (three phase)

Prime Power (kw/kva) 720/900
Standby Power (kw/kva) 800/1000
Rated Voltage (V) 440/254
Voltage Recovery Time ≤1S
Rated Current (A) 1181
Rated Frequency (Hz) 60
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Open type) 115
Battery capacity (V-Ah) 24V 100Ah
Open Type-Dimension (L*W*H) (mm) 4450*1650*2400
Open Type-Weight (kg) 6500
Soundproof Type- Dimension (L*W*H) (mm) 20ft container
Soundproof Type-Weight (kg) 18300
Fuel Tank Capacity(L) 1200
Continuous Running Time(hr.) 6

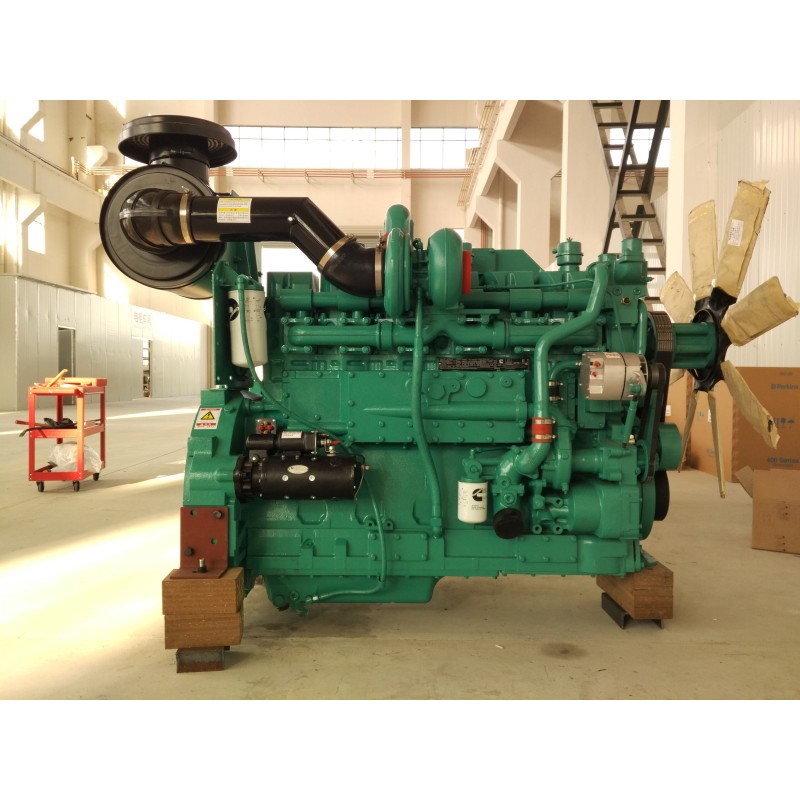

Engine specifications

Engine

Main features:

  1. Twelve-cylinder, water-cooled, in “V” diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2

Technical data

KTA38-G2

Engine brand Cummins
Output Power (kw) 809
Cylinder No. & Config. 12, in “V”
Combustion System direct injection
Compression Ratio 14.5:1
Displacement (L) 37.8
Bore X Stroke (mm) 159*159
Engine Speed (r/min) 1800
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant Capacity (L) 194
Fuel Consump. (g/kw·h) 214
Oil Capacity (L) 135

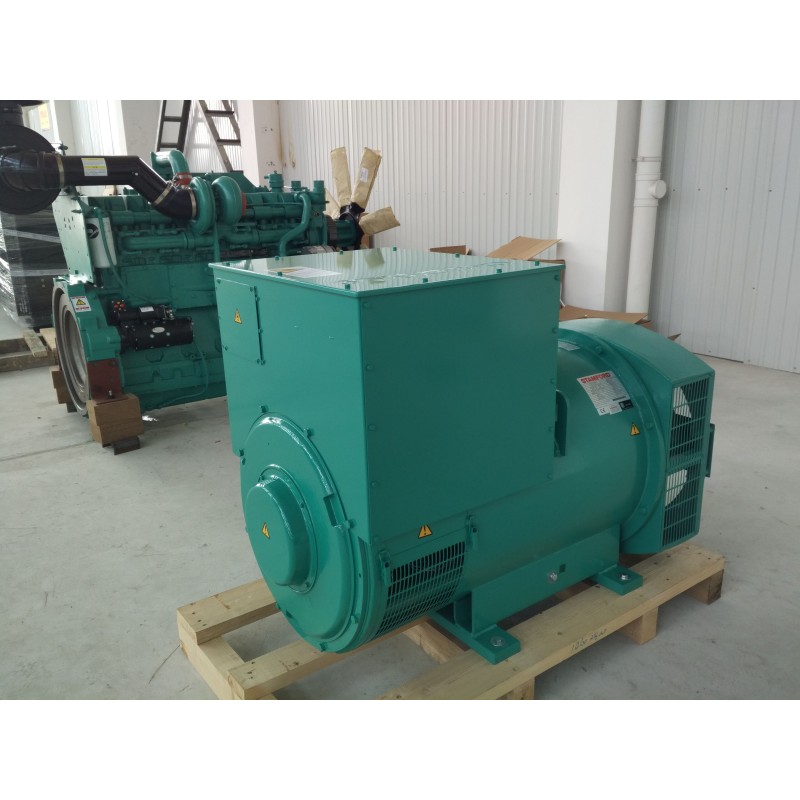

Alternator specifications

Alternator

Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2

Technical data

ECO40-VL4A

Alternator brand Meccalte
Rated Power (kw) 740
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1800
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%

60Hz 3 Phase 720KW 900KVA Open Diesel Dg Set With 12 Cylinder Diesel Engine Cummins KTA38-G2
