Specifications
Brand Name :
Ricardo
Model Number :
GP K70
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
Negociable
Payment Terms :
T/T or LC at sight
Supply Ability :
2,000sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF,CIF,EXW…
Prime Power (kw/kva) :
70/100
Standby Power (kw/kva) :
77/110
Rated Voltage (V) :
400/230
Frequency :
50HZ/60HZ available
Genset Type :
Open,Silent, Trailer.container.
Package :
Plastic Foam Packing or Plywood Case
Control Module Brand :
DeepSea,Comap,Smartgen
Color :
Customized
Description

With Stamford / Copy Stamford / Meccalte Alternator Domestic Brand Ricardo / VMAN Engine 100kw

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature
  3. up to 40℃ and altitudes up to 1000m)
  4. Self-diagnostic capability simplifies troubleshooting
  5. LCD display shows system status and setup information
  6. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and
  7. unstable power quality
  8. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  9. Enclosed muffler for added quietness
  10. Service and maintenance accessible through easy-latch side service door

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Technical Specifications:

Diesel Generator GPK70 (three phase)

Prime Power (kw/kva)

70/100

Standby Power (kw/kva)

77/110

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

126

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

2300*700*1450

Open Type-Weight (kg)

1470

Soundproof Type- Dimension (L*W*H) (mm)

3000*1190*1690

Soundproof Type-Weight (kg)

2420

Fuel Tank Capacity(L)

420

Continuous Running Time(hr.)

8

Model R6105ZDS

Engine brand

Kofo

Output Power (kw)

84

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Aspiration type

Turbo charged

Displacement (L)

6.4

Bore X Stroke (mm)

105*125

Engine Speed (r/min)

1500

Speed Governing

Mechanical / Electric

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

23

Fuel Consump. (g/kw·h)

≤227

Oil Capacity (L)

17

Product superiority:

  1. Economical fuel consumption system, to make sure excellent fuel atomization, effective combustion control and extremely low fuel consumption
  2. Low emission contamination
  3. Reliable power and tight compact structure
  4. Excellent loading response specification: high impact load, primary load exceeds 70%, perfect startup performance
  5. Easy to install and maintain
  6. Full storage of accessories and more than 4000 service networks worldwide

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

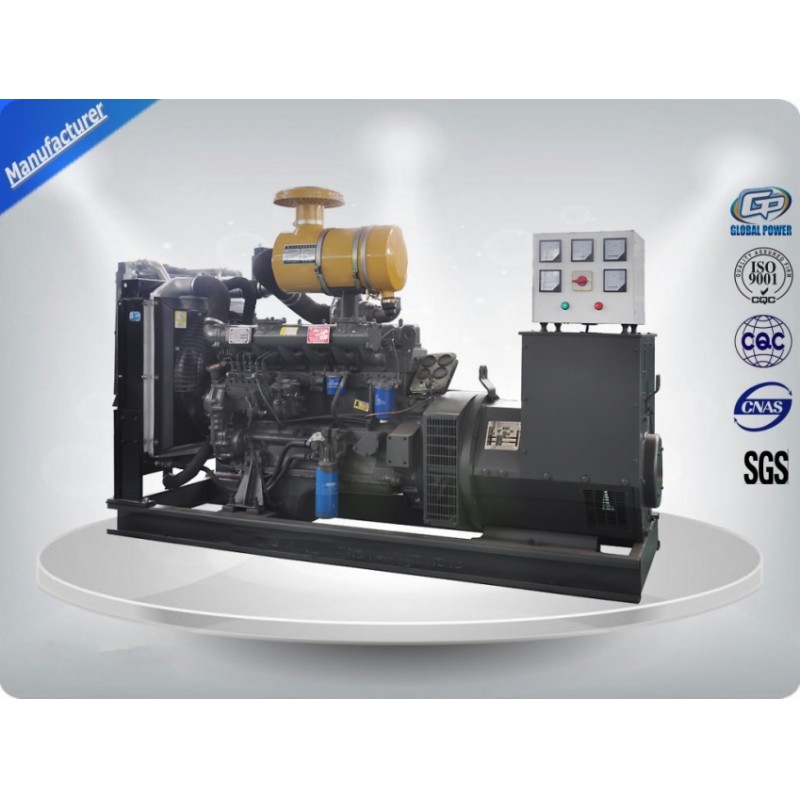

Photos of product :

LCD Display Genset 100 Kva Tightly Structure Excellent Design And Craft
