Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel
Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel
Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel
Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel
Specifications
Rated Power :
1368kw 1710kva
Standby Power :
1509kw 1886kva
Frequency :
50/60 Hz
Excited Way :
Self excited
Engine Cylinder :
12
Cooling Method :
by radiator
Regulation :
AVR
Spped :
1500/1800 rpm
Brand Name :
Global Power
Model Number :
GP P1368
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel


Test before shippment:

  • Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload
  • Noise level shall be tested.
  • All of the meters on the control panel shall be tested.
  • The appearance of the Set and the label, nameplate shall be tested. "
  • Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.


Guarantee for Our Generators:

  • Guarantee Period: One year or 1000hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
  • 24 hours service hot-line is available for customers.


Technical Specifications :
Genset:

Prime Power (kw/kva) 1368/1710
Standby Power (kw/kva) 1509/1886
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 2462
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 24V 100Ah
Open Type-Dimension (L*W*H) (mm) 4800*1700*2550
Open Type-Weight (kg) 9500
Soundproof Type- Dimension (L*W*H) (mm) /
Soundproof Type-Weight (kg) /
Fuel Tank Capacity(L) /
Continuous Running Time(hr.) 6

Engine:
Model 4012-46TAG3A

Engine brand Perkins
Output Power (kw) 1500
Cylinder No. & Config. 12 in “V”
Combustion System direct injection
Compression Ratio 13.6:1
Displacement (L) 45.842
Bore X Stroke (mm) 160*190
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 207(Temp.) / 210(Trop.)
Fuel Consump. (g/kw·h) 208
Oil Capacity (L) 177

Alternator:
Model PI734D

Alternator brand Stamford
Rated Power (kw) 1320
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%



Control System:
Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

  • automatic cutter which is suitable for the generator power
  • urn on key
  • A device to measure the generators speed
  • Counter for measuring the Operating hours
  • Device to measure the current overload with a switched current
  • A device to measure the battery voltage
  • Voltmeter with a voltage exchanger
  • A device to measure the frequency
  • Thermostat to regulate the voltage
  • A device to measure the oil pressure
  • Alerting lamps indicating low and high temperature
  • Controller of the current increase and short circuit
  • Emergency stop button

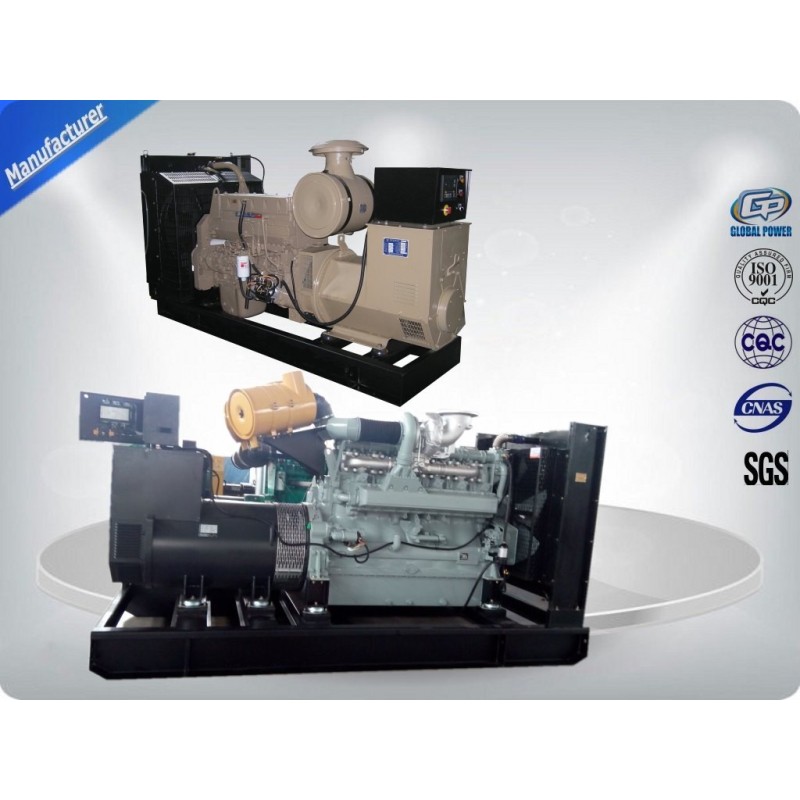

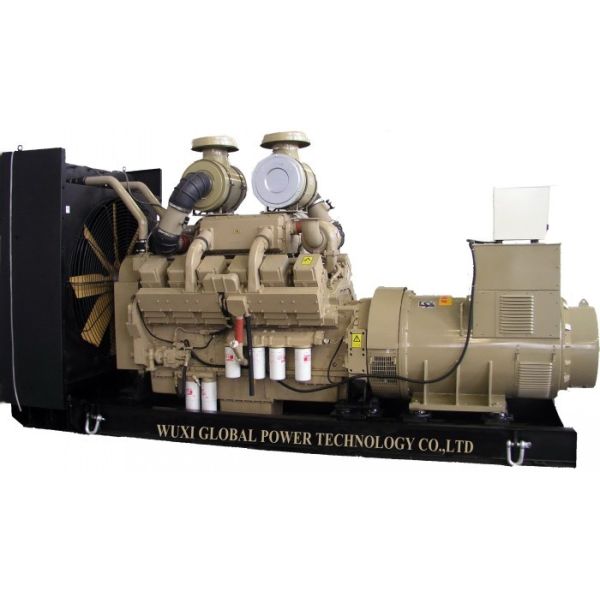

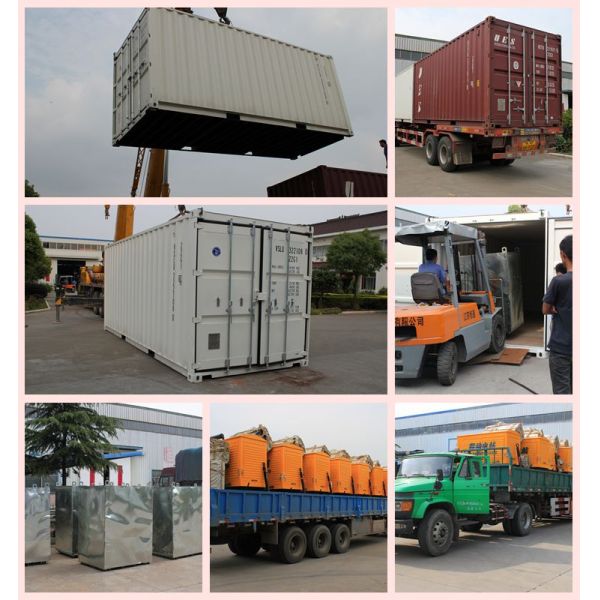

Our Picture :
Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel
Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Standard Supply Scope:

  • Diesel engine with Alternator
  • Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
  • Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
  • Radiator is standard , Strat battery and charger


Select Supply Scope:

  • Silent ,Mobile,Container,weatherproof types canopy and trailer
  • Connect to main ,all panels:Circut Breaker,ATS,etc
  • Water & oil heater, oil-water separator, air breaker, base fuel tank.


Genset Construction :

  • All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings.
  • The fuel tank is fabricated of mild steel and is incorporated into the base frame.
  • The size of the tank is dependent on the size of the generator.
