Diesel Generators For Home Use With 100 Kw / 125 Kva Prime Power 6 Cylinder In-Line
Diesel Generators For Home Use With 100 Kw / 125 Kva Prime Power 6 Cylinder In-Line
Specifications
Prime Power :
100kw
Engine :
Kofo R6105BZLDS
Alternator :
Global Power GPI 274ES
Standby Power :
100 Kw / 125 Kva
Rated Current :
180
Start Way :
Electric
Coolong System :
Water-cooled
Displacement :
7L
Brand Name :
Global Power
Model Number :
GP K100
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2500 sets / year
Delivery Time :
25-35 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

Weichai / Kofo / Ricardo Open Diesel Gen Set 100 Kw / 125 Kva Prime Power 6 cylinder in-line

Our advantages :


1) Engine low fuel consumption.

2) All orignal engines and alternators.

3) The components we use are in high quality.

4) The canopy design is user friendly, and easy for maintenance.

5) Pre and after sales service is provided.

6) Fast response for the inquires, service, etc.


Technical Specifications :
Genset:

Prime Power (kw/kva)

100/125
Standby Power (kw/kva)

110/138
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 180
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm)

2300*700*1450
Open Type-Weight (kg) 1700
Soundproof Type- Dimension (L*W*H) (mm)

2850*850*1600
Soundproof Type-Weight (kg) 2650
Fuel Tank Capacity(L) 420
Continuous Running Time(hr.) 8

Engine brand Kofo Alternator brand

Global Power
Model

R6105BZLDS

 Model

GPI 274ES
Output Power (kw)

132

 Rated Power (kw)

100
Cylinder No. & Config.

6, in-line

 Excitation System

Brushless,

self-exciting
Combustion System

direct injection

 Voltage Regulation Mode

AVR
Compression Ratio

15.0:1

 Connection Type

3phase,4wires,

”Y” connection
Displacement (L)

7.0

 Pole No.

4
Bore X Stroke (mm)

105*135

 Rotation Speed (r/min) 1500
Engine Speed (r/min)

1500

 Temperature Rise (℃)

125
Speed Governing

Mechanical / Electric

 Insulation class H
Starting System

24V DC Electric

 Voltage Regulation (0 load)

≥95%～105%
Filter System

Dry oil filter/Fuel filter/Oil filter

 Voltage accuracy

≤±1%
Cooling system

Water-cooled

 Protection Grade

IP23
Coolant capacity (L)

23

 Telephone Influence Factor

TIF＜50
Fuel Consump. (g/kw·h)

≤218

 Harmonic Coefficient

THF＜2%

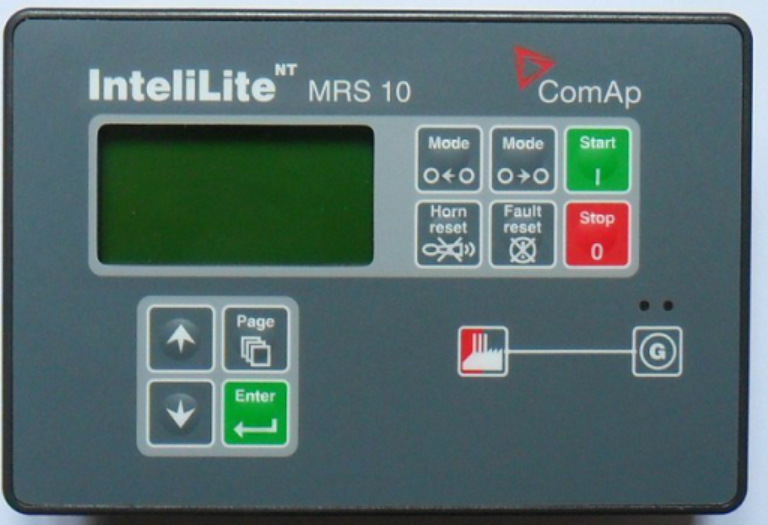

Control System:

Diesel Generators For Home Use With 100 Kw / 125 Kva Prime Power 6 Cylinder In-Line

ATS

1) Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

2) Our normal ATS is bulit inside,but outside ATS box is optional

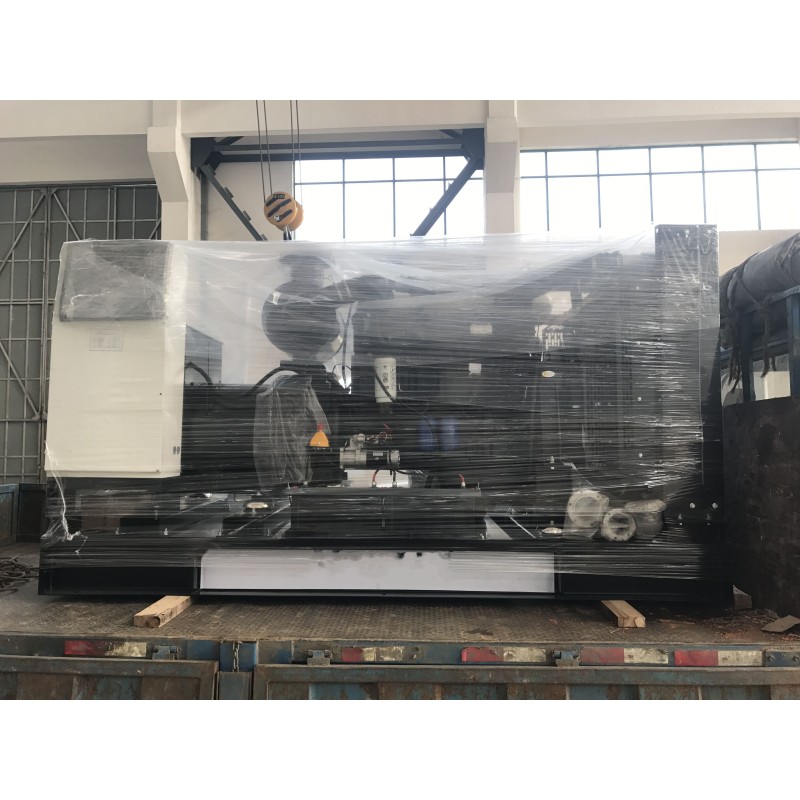

Our Picture :

Diesel Generators For Home Use With 100 Kw / 125 Kva Prime Power 6 Cylinder In-Line

Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
