Low Noise Weichai / Kofo / Ricardo Open Diesel Gen Set 250 Kw / 313 Kva Prime Power With ATS
Low Noise Weichai / Kofo / Ricardo Open Diesel Gen Set 250 Kw / 313 Kva Prime Power With ATS
Specifications
Brand Name :
Global Power
Model Number :
GP K250
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2500 sets / year
Delivery Time :
25-35 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Prime Power :
250kw
Engine :
Kofo WT12D-308
Alternator :
Wattek WHI4DC
Standby Power :
250 Kw / 313 Kva
Rated Current :
451
Start Way :
Electric
Coolong System :
Water-cooled
Displacement :
11L
Description

Low Noise Weichai / Kofo / Ricardo Open Diesel Gen Set 250 Kw / 313 Kva Prime Power With ATS

Our advantages :


1) Engine low fuel consumption.

2) All orignal engines and alternators.

3) The components we use are in high quality.

4) The canopy design is user friendly, and easy for maintenance.

5) Pre and after sales service is provided.

6) Fast response for the inquires, service, etc.


Technical Specifications :
Genset:

Prime Power (kw/kva) 250/313
Standby Power (kw/kva) 280/350
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 451
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 2880*1000*1700
Open Type-Weight (kg) 2400
Soundproof Type- Dimension (L*W*H) (mm) 3950*1400*1950
Soundproof Type-Weight (kg) 6100
Fuel Tank Capacity(L) 600
Continuous Running Time(hr.) 8

Engine brand Kofo Alternator brand

Wattek
Model WHI4DC Model

WHI 4DC
Output Power (kw)

284

 Rated Power (kw)

250
Cylinder No. & Config.

6, in-line

 Excitation System

Brushless,

self-exciting
Combustion System

direct injection

 Voltage Regulation Mode

AVR
Compression Ratio

15.0:1

 Connection Type

3phase,4wires,

”Y” connection
Displacement (L)

10.8

 Pole No.

4
Bore X Stroke (mm)

125*147

 Rotation Speed (r/min) 1500
Engine Speed (r/min)

1500

 Temperature Rise (℃)

125
Speed Governing

Electronic

 Insulation class H
Starting System

24V DC Electric

 Voltage Regulation (0 load)

≥95%～105%
Filter System

Dry oil filter/Fuel filter/Oil filter

 Voltage accuracy

≤±1%
Cooling system

Water-cooled

 Protection Grade

IP23
Coolant capacity (L)

61

 Telephone Influence Factor

TIF＜50
Fuel Consump. (g/kw·h) 188 Harmonic Coefficient

THF＜2%

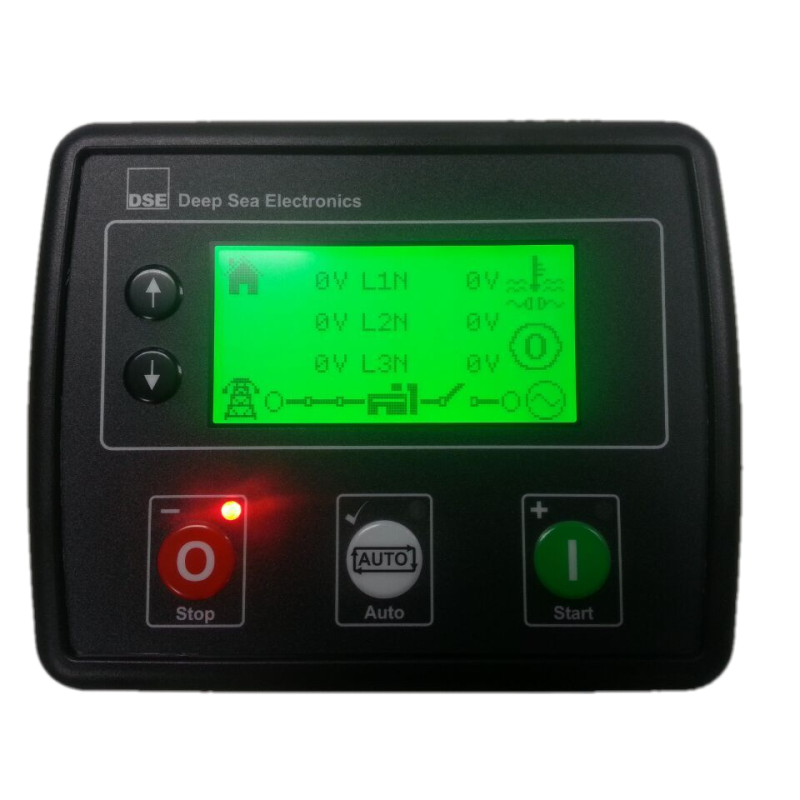

Control System:

Low Noise Weichai / Kofo / Ricardo Open Diesel Gen Set 250 Kw / 313 Kva Prime Power With ATS

ATS

1) Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

2) Our normal ATS is bulit inside,but outside ATS box is optional

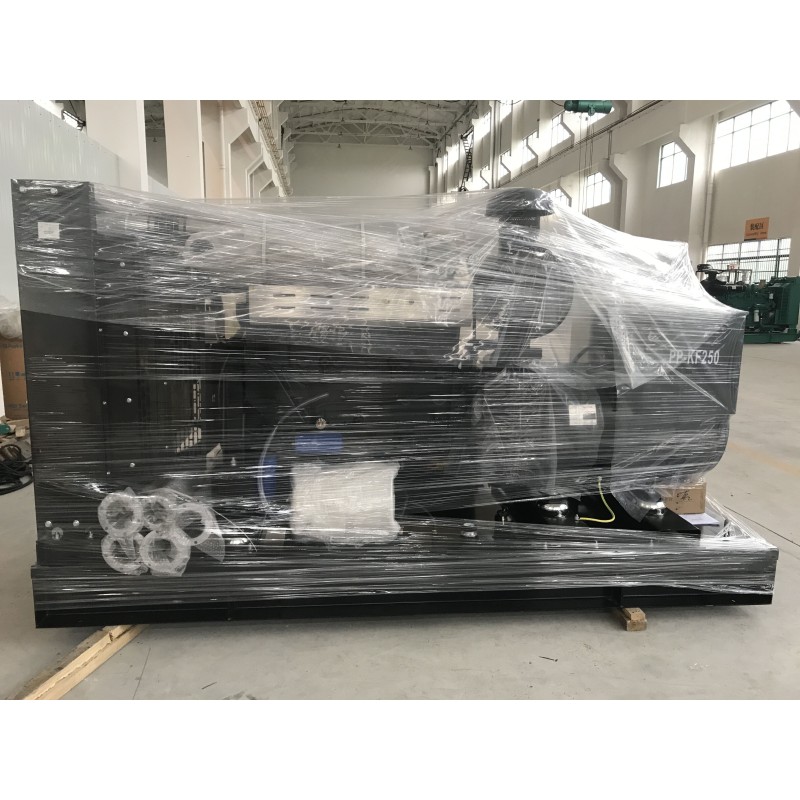

Our Picture :

Low Noise Weichai / Kofo / Ricardo Open Diesel Gen Set 250 Kw / 313 Kva Prime Power With ATS

Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
