500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
Specifications
Brand Name :
Global Power
Model Number :
GP C500
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Product Name :
500KW Diesel Generator
Prime Power :
500KW / 625KVA
Standby Power :
550KW / 688KVA
Engine Brand :
CUMMINS
Engine Model :
KTAA19-G6A
Alternator Brand :
STAMFORD
Alternator Model :
HCI544FS
Dimension(L*W*H) :
3570*1550*2160 MM
Weight :
4200KG
Description

500 KW Open Diesel Generator Set Powered by Cummins KTAA19-G6A And STAMFORD HCI544FS


Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.


500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set

Genset Model GPC500

Standby Power

 kVA 688
kw 550

Prime Power

 kVA 625
kw 500
Frequency Hz 50
Voltage V 400/230
Rated speed rpm 1800
Fuel Consumption 100% Load L/Hr 129.2
Fuel Consumption 75% Load L/Hr

96.9
Fuel Consumption 50% Load L/Hr 64.36

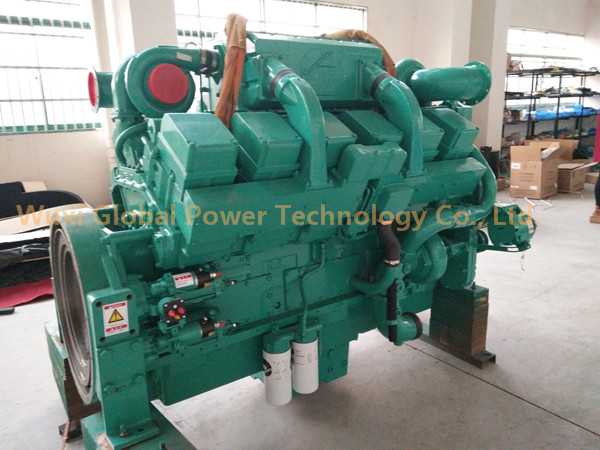

Cummins engine Model: KTAA19-G6A

Cummins Engine: KTAA19-G6A
Cylinder arrangement 6 in V
Displacement 19L
BorexStroke 159x159mm
Compression ratio 13.0:1
Rated RPM 1500
Max. standby power at rated RPM 527kW
Governor type Electronic
Exhaust temperature 600℃
Total coolant capacity 116.5L
Total oil capacity 50L


Stamford Alternator Model: HCI544FS

Stamford Alternator: HCI544FS
Number of phase 3
Connecting type 3 Phase 4 Wire, “Y” type connecting
Number of bearing 1
Protection grade IP23
Exciter type Brushless, self-exciting
Insulation class, Temperature rise H/H
Telephone Influence Factor (TIF) <50
THF <2%
Voltage Regulation, Steady state ≤±1%
Alternator capacity 500KW
Alternator efficiencies 93.5%


500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set

Generator Sets Standard and Optional Features

Engine:

  1. 4-stroke, water-cooled diesel engine
  2. Standard air filter
  3. Standard fuel filter
  4. Standard oil filter
  5. Oil temperature sensor
  6. Low coolant level sensor
  7. 24V electrical system
  8. Radiator with blowing fan
  9. Industrial silence
  10. Fuel water separator (optional)
  11. Water jacket heater (optional)

Alternator:

  1. Class H insulation
  2. IP23 Protection
  3. Automatic Voltage Regulator (AVR)
  4. PMG excitation
  5. Single bearing alternator
  6. Stamford alternator


Electrical system:

  1. DSE 7320 control module
  2. Maintenance-free and anti-explosion battery
  3. Standard breaker
  4. ABB breaker (optional)
  5. ATS (optional)
  6. Battery charger (optional)
  7. GMS monitoring (optioanl)

Packing:

  1. Engine manual
  2. Alternator manual
  3. Gensets operation and maintenance manual
  4. Tool kit

Baseframe:

  1. Forklift pockets
  2. Pulling slots
  3. Earth wire protection
  4. Built-in anti vibration mountings
  5. Fuel outlet value
  6. Standard 8 hours fuel tank
  7. Enlarged 24 hours fuel tank (optional)
  8. Separated fuel tank (optional)


Canopy:

  1. Weatherproof & sound-attenated canopy
  2. Sound-absorbing material
  3. Lifting lug
  4. Emergency stop button
  5. Inside silencer
  6. Trailer generator (optional)

500KW KTAA19-G6A STAMFORD HCI544FS Cummins Generators Diesel Generator Set
