Specifications
Brand Name :
Global Power
Model Number :
GP C50
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
4BTA3.9-G2
Engine Output :
50kw
Type :
Open
Alternator :
Stamford / Meecalt / copy Stamford
Canopy Size (l*w*h/mm) :
2320*1000*1400
Canopy Weight(KG) :
1970
Control Module :
DeepSea , Comap , Smartgen.
Cooling System :
Water-cooled
Speed Governing :
Electronic
Description

4BT3.9-G2 Cummins Engine Open Diesel Generator Set Water- cooled 50kw / 63kva

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Technical Specifications :

Genset

Prime Power (kw/kva)

50 / 63

Standby Power (kw/kva)

55 / 69

Voltage Recovery Time

≤1S

Rated Current (A)

90

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Fuel Tank Capacity(L)

100

Engine

Engine brand

Cummins

Output Power (kw)

50

Cylinder No. & Config.

4, in-line

Combustion System

direct injection

Compression Ratio

16.5:1

Displacement (L)

3.9

Bore X Stroke (mm)

102*120

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday…

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%~105%

Protection Grade

IP23

Control system

Brand: DeepSea,Comap,Smartgen

feature:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

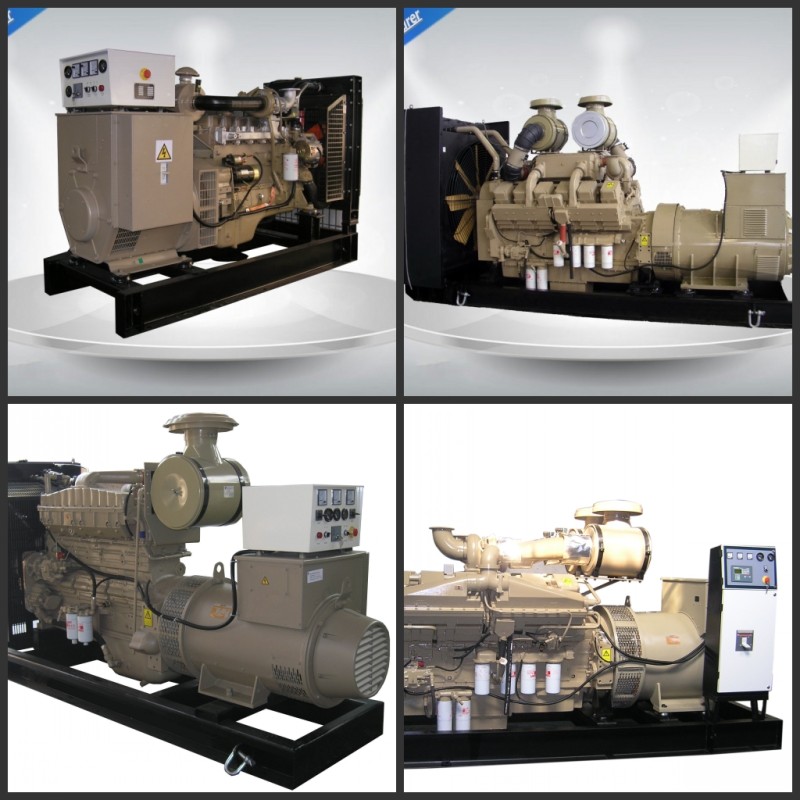

Our Factory :

4BT3.9-G2 Cummins Engine Open Diesel Generator Set with Stamford alternator Water- cooled 50kw / 63kva

Guarantee;
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
