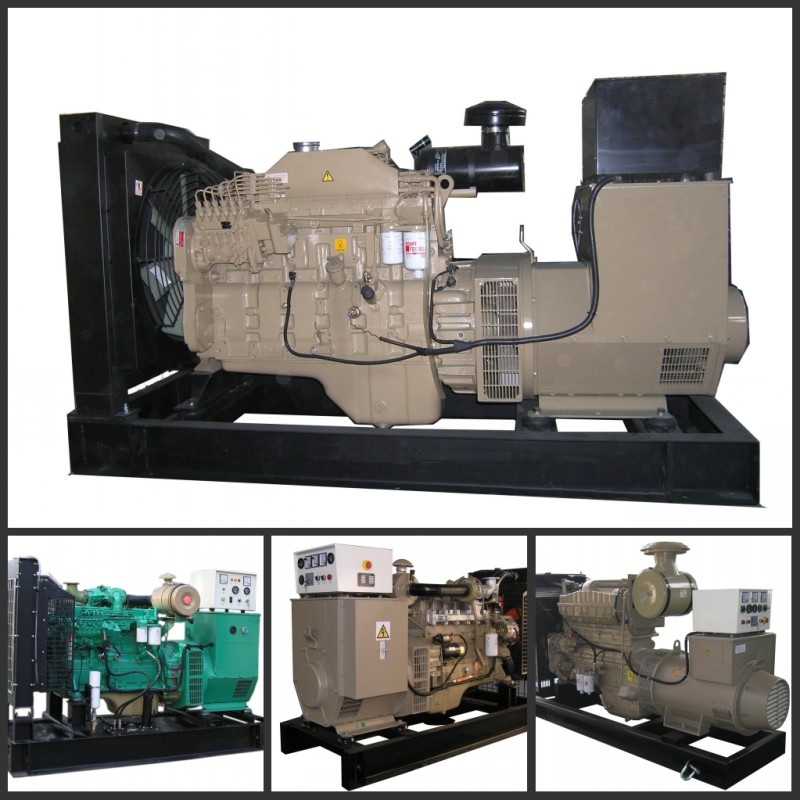

50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering，water cool
50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering，water cool
50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering，water cool
50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering，water cool
Specifications
Output Type :
AC Three Phase
Rated Voltage: :
400/230V
Prime Power (kw/kva) :
30/37.5
Standby Power(kw/kva) :
33/42
Engine Model :
Cummins -4BT3.9-G/36
Alternator Brand :
Stamford,Mecc-alte, Faraday, copy stamford
Frequency :
50Hz
Weight(kg) :
700
Dimension Size(L*W*H/mm) :
1770*750*1130
Package :
Plastic Foam or Plywood Case
Control Module Brand :
DeepSea,Comap,Smartgen
Brand Name :
Global Power
Model Number :
GP C30
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
$4870-$6800
Payment Terms :
T/T or LC
Supply Ability :
2,000sets/year
Delivery Time :
25 working days after received down-payment
Packaging Details :
FOB, CRF,CIF,EXW…
Description

50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Technical Specifications:

Genset

Prime Power (kw/kva)

30/37.5

Voltage Recovery Time

≤1S

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

12V 100Ah

Open Type-Dimension (L*W*H) (mm)

1770*750*1130

Open Type-Weight (kg)

 700

Soundproof Type- Dimension (L*W*H) (mm)

2500*1000*1300

Soundproof Type-Weight (kg)

1120

Fuel Tank Capacity(L)

120

Engine

Engine brand

Cummins

Output Power (kw)

36

Cylinder No. & Config.

4, in-line

Combustion System

direct injection

Compression Ratio

16.5:1

Displacement (L)

3.9

Bore X Stroke (mm)

102*120

Engine Speed (r/min)

1500

Speed Governing

Mechanical

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday…

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3 phase,4 wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23


Control system

Brand: DeepSea,Comap,Smartgen

feature:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Our Factory :
50Hz 3 Phase Open Diesel Generator Durable With Electronic Speed Govering，water cool

Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
