Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​
Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​
Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​
Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​
Specifications
Brand Name :
Global Power
Model Number :
GP C1005
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
KTA50-G3
Engine Power :
1005kw
Alternator :
Stamford / Meecalt / copy Stamford
Rated Voltage :
400 / 230 V
Dimension (l*w*h/mm） :
5100*2000*2500
Weight(KG) :
10700
Control Module :
DeepSea , Comap , Smartgen.
Description

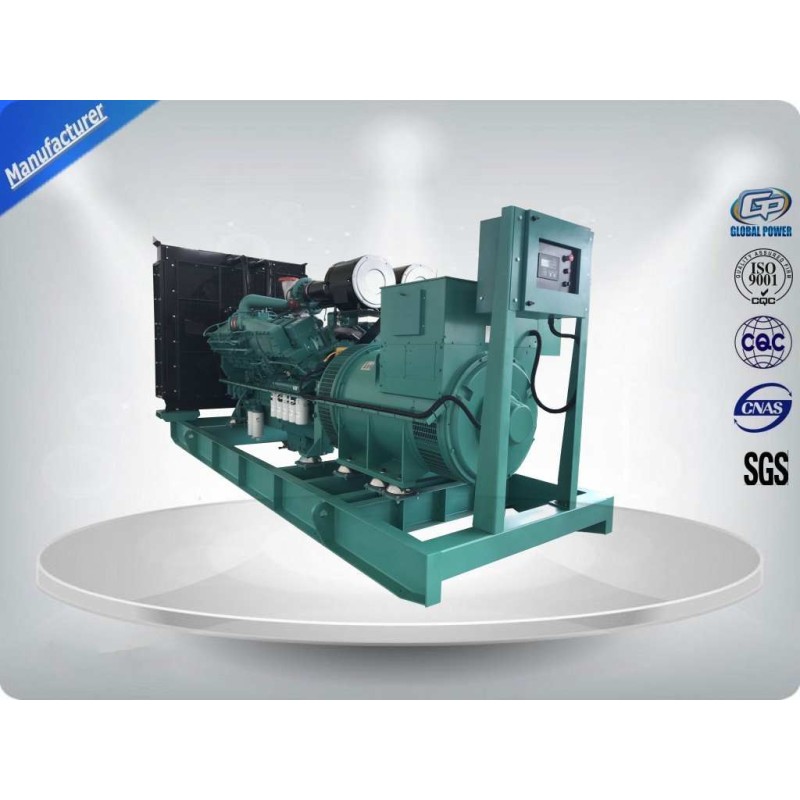

1005Kw Open Type water cool Genset / Cummins Diesel Generator Set with copper bar & PMG​

Technical Specifications :

Genset

Prime Power (kw/kva)

1005/1256

Standby Power (kw/kva)

1120/1400

Voltage Recovery Time

≤1S

Rated Current (A)

1803

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m

115

Battery capacity (V-Ah)

24V 100Ah

Fuel Tank Capacity(L)

/

Engine

Engine brand

Cummins

Output Power (kw)

1087

Cylinder No. & Config.

16, in 'V'

Combustion System

direct injection

Compression Ratio

13.9:1

Displacement (L)

50.3

Bore X Stroke (mm)

159*159

Engine Speed (r/min)

1500

Speed Governing

Electronical

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday…

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Protection Grade

IP23

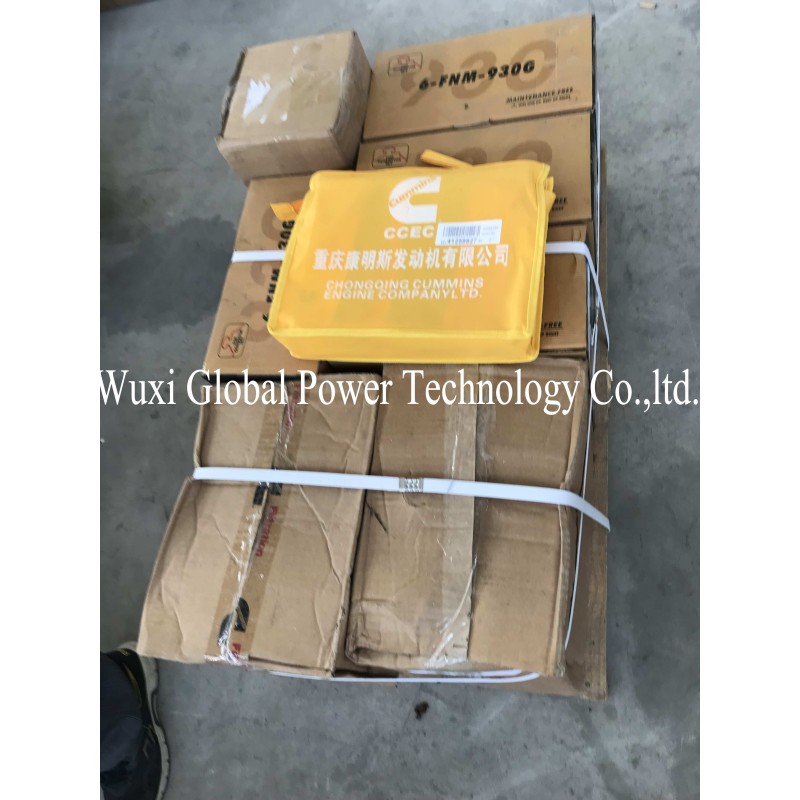

Our Accessories :

Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​

Details :

Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG​

Our Features :

  • Universal design and manufacture
  • Engineers are familiar with diesel generators powered by Cummins engine
  • You could find spare-parts easily.
  • Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  • Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  • Enclosed muffler for added quietness
  • Service and maintenance accessible through easy-latch side service door
