Specifications
Brand Name :
Global Power
Model Number :
GP P16
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Prime Power :
16KW / 20KVA
Rated Voltage :
400V / 230V

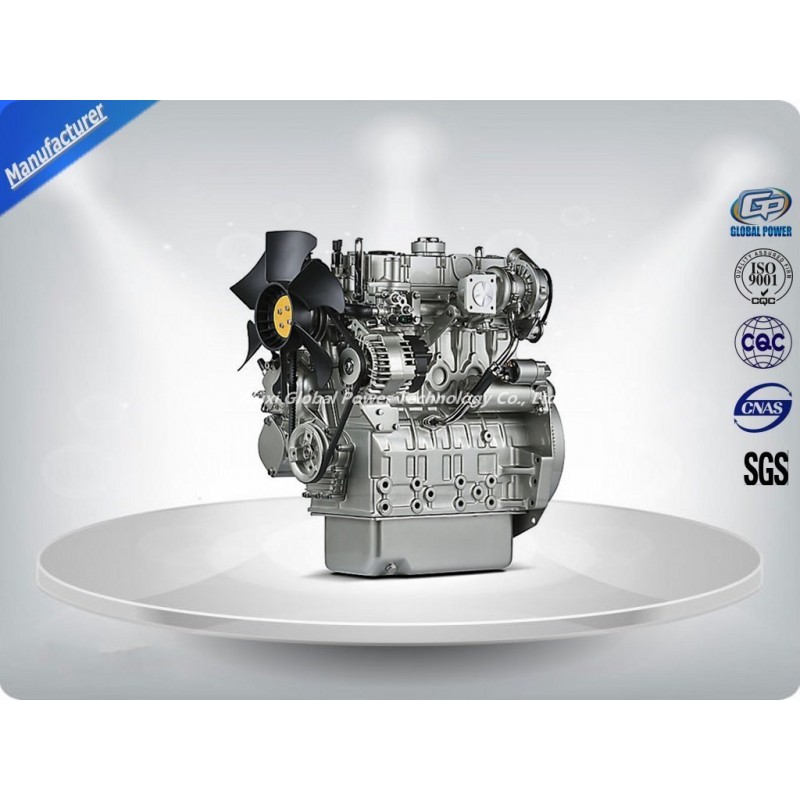

Engine :
Perkins 404A-22G1
Alternator :
STAMFORD PI144D
Connection Type :
3 phase,4wires,”Y” connection
Control Panel :
HGM410
Dimension :
1500*550*1000 MM
Weight :
600 KG
Description

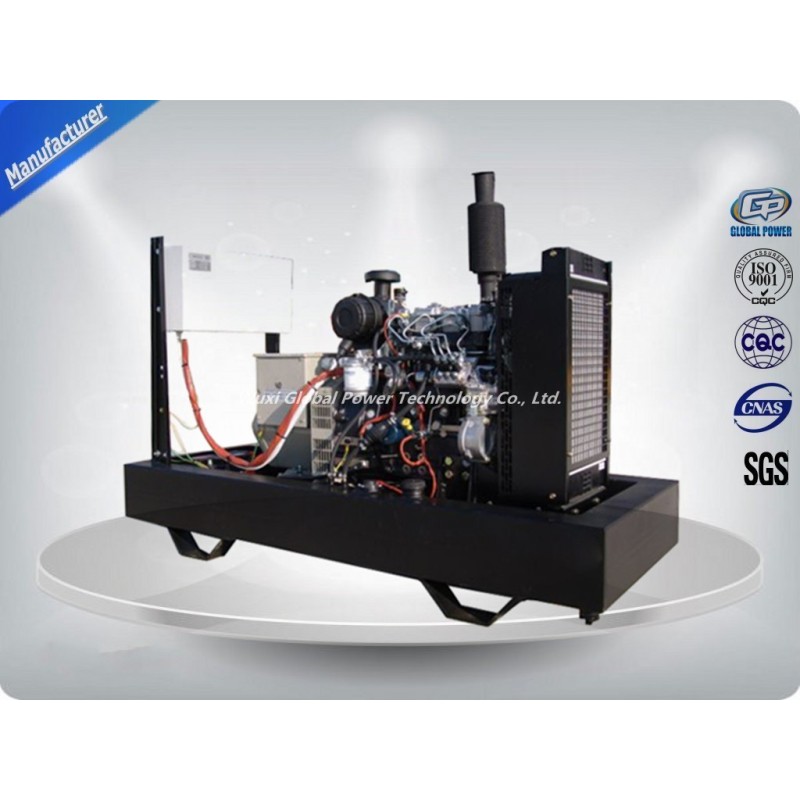

20 KVA / 16 KW Water cooled Open Diesel Generator Set Powered by Perkins Engine

Applications: Home, Buildings, Hospitals, Train station,Bank, Telecom, Mining, Military, Outdoor projects, etc.

Generator Set Specification GPP16
Type Open type
Connect method between engine and alternator Single bearing by elastic steel disc plate
Base fuel tank volume For 8 hours running use
Generator set color As per request
Painting Ground paint & surface paint for anti-rust
Engine basic parameters
Model 404A-22G1
Continuous power/speed 16kw / 20 kva1500rpm
Intake method Naturally aspirated
Rated Fuel Consumption at 100% load 237 g/kw.h
Starting method 12V electric start
Alternator basic parameters
Brand Stamford
Type Brushless, 100% copper wires stator & rotator
Copper wires vernished times 3 times
Rated output power 16kw
Voltage Regulate method Adjusted automatically by AVR
Protection class / Insulation Class IP21 / H
Total offer list

1) Diesel engine ( corrugated tube, silencer, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover,high quality sensors, tool case, free spare parts, catalogue & manual)

2) Alterantor (air breaker, AVR, instruction manual)

3) Alternator cabinet( DELEX brand voltage/current/HZ meter, Schneider breaker, Omron relay)

4) Base steel frame ( industrial shock absorbers, forklift work hole)

5) Free-maintenance battery (include connecting cables, switch)(lead-acid)

6) Strong woodcase packing.

20 KVA / 16 KW Water cooled Open Diesel Generator Set Powered by Perkins Engine

Optional configuration:

1.ATS control cabinet
2.Water separator
3.Oil heater
4.Move the trailer
5.Fuel tank
6.Anti - condensation heater
7.Water jacket heater
8.Low noise box

20 KVA / 16 KW Water cooled Open Diesel Generator Set Powered by Perkins Engine

Shipping:

Dispatch will be arranged within 30 days once your payment is verified. Package will be shipped from Shanghai Port, reaching most of the countries all over the world. Please be advised that international delivery highly depends on destination, local customs, post service and other factors.

20 KVA / 16 KW Water cooled Open Diesel Generator Set Powered by Perkins Engine

Company Information

Wuxi Global Power Technology Co.,LTD is located in Wuxi City, Jiangsu Province, which is the central part of manufacturing industrial zone in Southeast China. Global Power manufactures OEM generator powered by USA brand,UK brand, Deutz, Volvo, MTU, Doosan , Shangchai ,Yuchai ,Weichai engines with Stamford, Leroy Somer, Mecc Alte or ZC brand alternators. Global Power Genset ranges from 2kva to 2500kva, 50Hz or 60Hz frequency, can be open type, silent type, trailer type or container type, etc. All products are manufactured in accordance with the ISO8528 production standard and Europe CE certificate to assure them of best quality and acceptable for the international market.

We devotes ourselves to researching, manufacturing, and installing of Diesel Generator Set in the recent decades. With convincing quality, our products endue generators made in China with a new implication of European quality with competitive price. Global Power generators are exported to dozens of countries all over the world, bringing wind of China to global diesel generators business and customers.
