Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Global Power 12 Cylinder In V 600KW Cummins Generator Set Low Fuel Consumption
Specifications
Brand Name :
Global Power
Model Number :
GP C600
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Product Name :
Backup Power Generator
Prime Power :
600KW / 750KVA
Standby Power :
660KW / 825KVA
Engine Brand :
CUMMINS
Engine Model :
KTA38-G2
Alternator Brand :
FARADAY
Alternator Model :
FDI6B
Dimension(L*W*H) :
4450*1650*2400 MM
Weight :
6500KG
Description

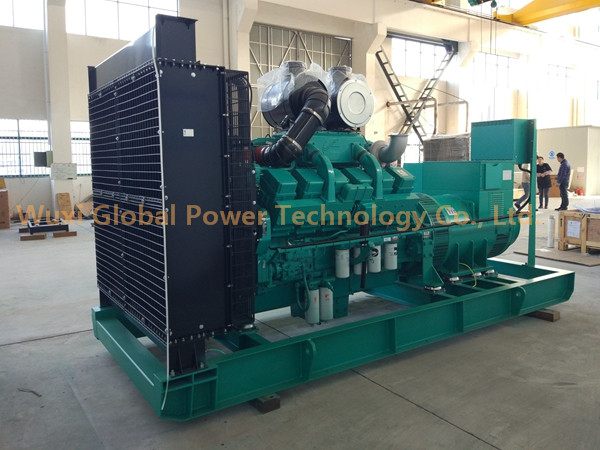

Global Power 12-Cylinder in "V" 600 KW Cummins Generator Set Low Noise Low Fuel Consumption


Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.


Global Power 12 Cylinder In

Genset Model GPC600

Standby Power

 kVA 825
kw 660

Prime Power

 kVA 750
kw 600
Frequency Hz 50
Voltage V 400/230
Rated speed rpm 1800
Fuel Consumption 100% Load L/Hr 111.6
Fuel Consumption 75% Load L/Hr 83.7
Fuel Consumption 50% Load L/Hr 55.8



Cummins engine Model: KTA38-G2

Cummins Engine: KTA38-G2
Cylinder arrangement 12 in V
Displacement 38L
BorexStroke 159x159mm
Compression ratio 14.5:1
Rated RPM 1500
Max. standby power at rated RPM 664kW
Governor type Electronic
Exhaust temperature 600℃
Total oil capacity 30L
Total coolant capacity 194L
Total oil capacity 135L


Faraday Alternator Model: FDI6B

Faraday Alternator: FDI6B
Number of phase 3
Connecting type 3 Phase 4 Wire, “Y” type connecting
Number of bearing 1
Protection grade IP23
Exciter type Brushless, self-exciting
Insulation class, Temperature rise H/H
Telephone Influence Factor (TIF) <50
THF <2%
Voltage Regulation, Steady state ≤±1%
Alternator capacity 730KW
Alternator efficiencies 93.5%


Global Power 12 Cylinder In

Generator Sets Standard and Optional Features

Engine:

  1. 4-stroke, water-cooled diesel engine
  2. Standard air filter
  3. Standard fuel filter
  4. Standard oil filter
  5. Oil temperature sensor
  6. Low coolant level sensor
  7. 24V electrical system
  8. Radiator with blowing fan
  9. Industrial silence
  10. Fuel water separator (optional)
  11. Water jacket heater (optional)

Alternator:

  1. Class H insulation
  2. IP23 Protection
  3. Automatic Voltage Regulator (AVR)
  4. PMG excitation
  5. Single bearing alternator
  6. Stamford alternator


Electrical system:

  1. DSE 7320 control module
  2. Maintenance-free and anti-explosion battery
  3. Standard breaker
  4. ABB breaker (optional)
  5. ATS (optional)
  6. Battery charger (optional)
  7. GMS monitoring (optioanl)

Packing:

  1. Engine manual
  2. Alternator manual
  3. Gensets operation and maintenance manual
  4. Tool kit

Baseframe:

  1. Forklift pockets
  2. Pulling slots
  3. Earth wire protection
  4. Built-in anti vibration mountings
  5. Fuel outlet value
  6. Standard 8 hours fuel tank
  7. Enlarged 24 hours fuel tank (optional)
  8. Separated fuel tank (optional)


Canopy:

  1. Weatherproof & sound-attenated canopy
  2. Sound-absorbing material
  3. Lifting lug
  4. Emergency stop button
  5. Inside silencer
  6. Trailer generator (optional)
