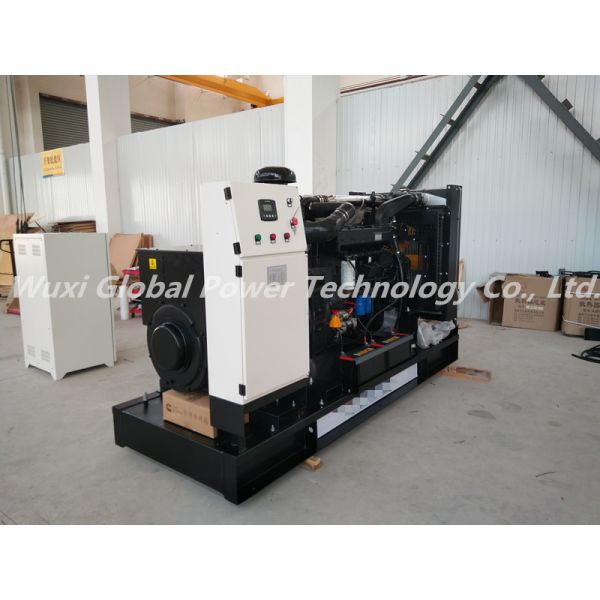

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
Specifications
Brand Name :
Global Power
Model Number :
GP K250
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Product Name :
Open Diesel Generator
Prime Power :
250KW / 313KVA
Rated Voltage :
400V / 230V
Engine :
KOFO WT 12D-308E
Alternator :
Copy Stamford GPI 4DC
Connection Type :
3 phase,4wires,”Y” connection
Control Panel :
HGM410
Dimension :
3000*1150*1800 MM
Weight :
2550 KG
Description

Chinese Diesel Generator Sets Global Power 313 KVA 400 V 50 HZ 3 PHASE Price Cheap for Sale

This Chinese KOFO Powered diesel generator is suitable for continuous use and has plenty of power to the plant, hospital, outdoor project, . This unit operates at 1500-1800 RPM and with its deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet.

Genset Model GPK250
Prime Output (KW / KVA) 250 KW / 313 KVA
Standby Output (KW / KVA) 275 KW / 344 KVA
Voltage, Phase and Wire 400 V / 3 Phase / 4 Wires
Maximum Output Current 451 AMP
Engine Brand and Model KOFO WT 12D-308E
Alternator Brand and Model WATTEK WHI4DC
Engine Speed RPM 1500
Frequency 50 HZ

Ratings at 0.8 power factor

Rating definitions

50HZ 1500m: (Operation at altitude ≤1500m, Ambient temperature ≤40℃) if altitude higher than 1500m, each 100m will cause additional de-rating 1%

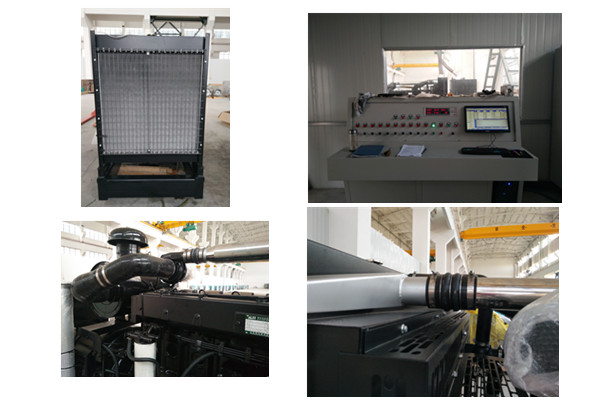

Factory Test

Each our generating sets must be got through 1h load test for running 0%, 25%, 50%, 75%, 100% and 110% load before dispatch. All protective devices, control functions are simulated and its system checked, proved and then passed for dispatch. A test certificate can be provided upon request.

ENGINE SPECIFICATION

Engine Model KOFO WT 12D-308E
Engine Type Water-cooled, 6 cylinders in line, direct injection
Maximum Output 288 KW
Aspiration Turbocharged
Bore x Stroke 125*147 mm
Displacement 14 L
Compression Ration 16:1
Fuel Consumption 188 g/kw.h
Lube-oil Pan Capacity 16.4 L
Cooling Water Capacity 24 L
Voltage for Start 24 V
Instrument for Adjusting Speed Electronic
Noise Level (A) 7 m ≤115 db (Open type), ≤75 db (Silent type)

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator

ALTERNATOR SPECIFICATION

Alternator Model Copy Stamford GPI4DC
Excitation Brushless, self-excited
Insulation Class H
Project Class IP23
Connection Type Re-connectable
Voltage Regulation ≥95%～105%
Waveform ≤5%, sine wave
Distortion THF / TIF THF<50, TIF<2%

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator

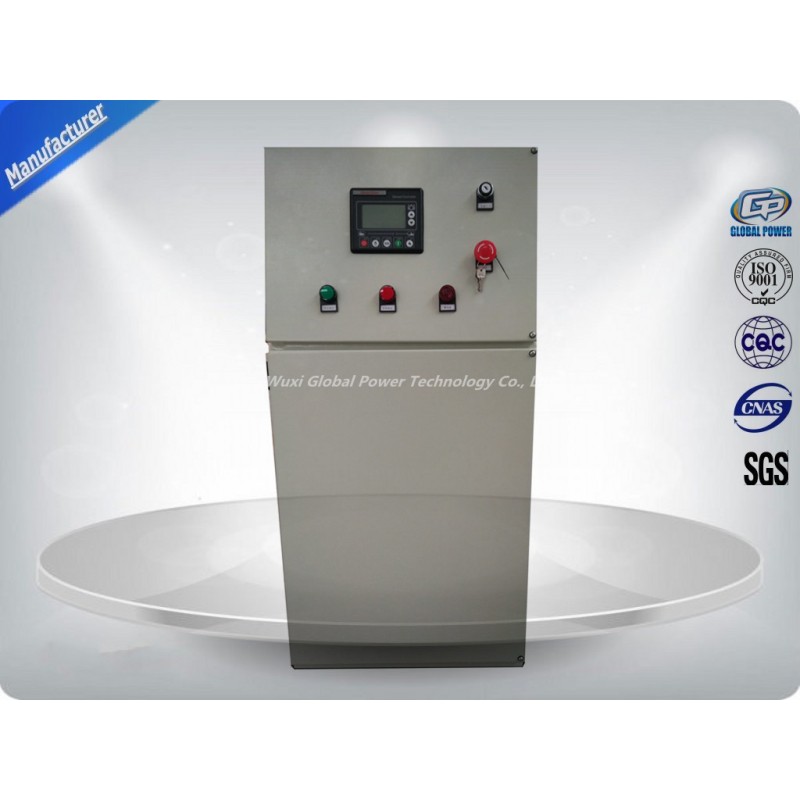

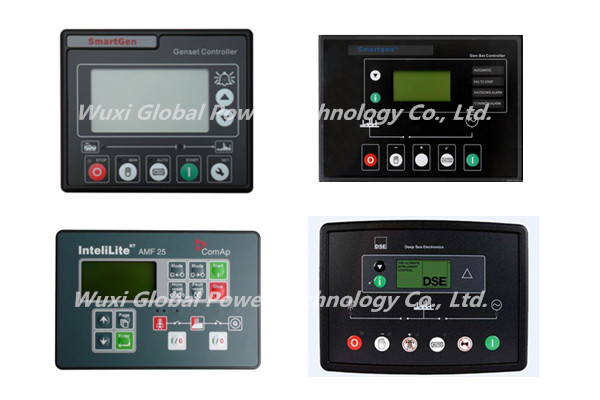

GENERATOR SET CONTROL PANEL

AC/DC control panel with communication interface

Emergency stop button

Controller with selection for auto-start, HGM6110 monitoring and with following (and not restricted to) features:

  • Start / Stop button
  • Hour run meter
  • Monitor engine temperature and provides shutdown protection
  • Monitor oil pressure and provides shutdown protection
  • Alarm output for abnormal operation

Standard Features

Control System: HGM control panel with communication interface

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
