Specifications
Brand Name :
Global Power
Model Number :
GP C128
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand :
Cummins
Engine Model :
6BTAA5.9-G12
Output Power :
140 kw
Type :
Open
Alternator :
Stamford / Meecalt / copy Stamford
Fuel Tank Capacity :
250 L
Rated Voltage :
400 / 230 V
Dimension (l*w*h/mm) :
Dimension
Weight :
3450 KG
Control Module :
DeepSea , Comap , Smartgen.
Description

Cummins Open Diesel Generator

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Technical Specifications :

Genset

Prime Power (kw/kva)

128 / 160

Standby Power (kw/kva)

141 / 176

Voltage Recovery Time

≤1S

Rated Current (A)

231

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Fuel Tank Capacity(L)

250

Engine

Engine brand

Cummins

Output Power (kw)

140

Cylinder No. & Config.

4, in-line

Combustion System

direct injection

Compression Ratio

17:1

Displacement (L)

8

Bore X Stroke (mm)

112*135

Engine Speed (r/min)

1500

Fuel Consumption (g/kw·h)

208

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Alternator

Alternator brand

Stamford, Mecc-alte,Faraday…

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%~105%

Protection Grade

IP23

Control system

Brand: DeepSea,Comap,Smartgen

feature:

  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Our Picture :

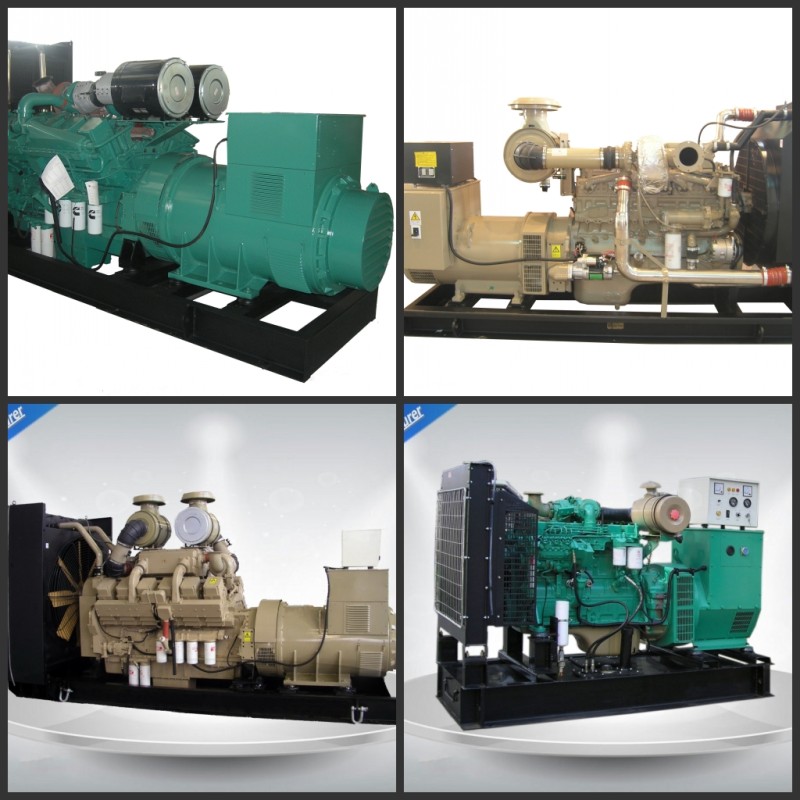

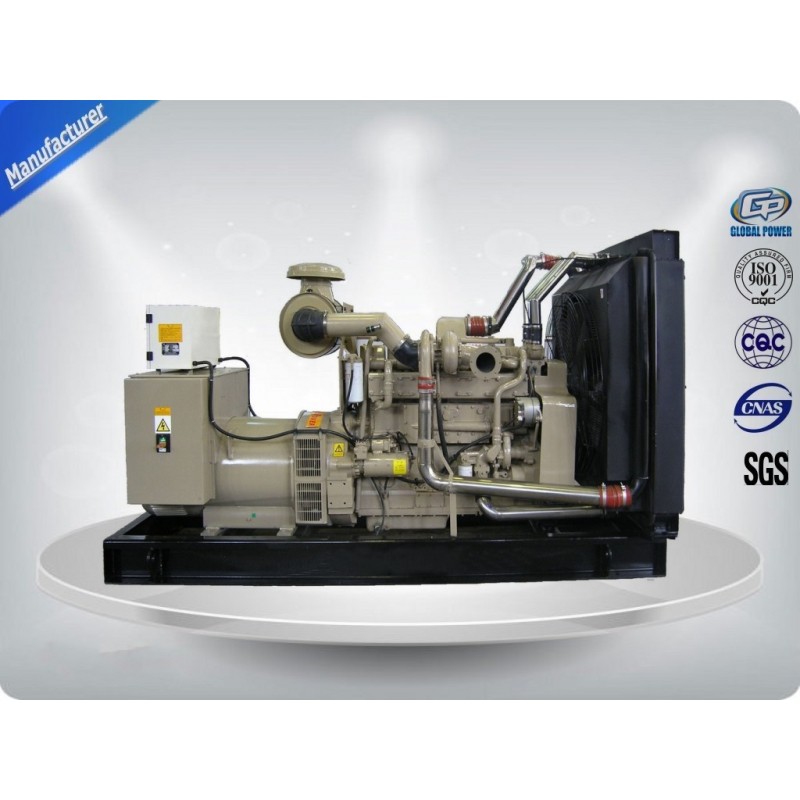

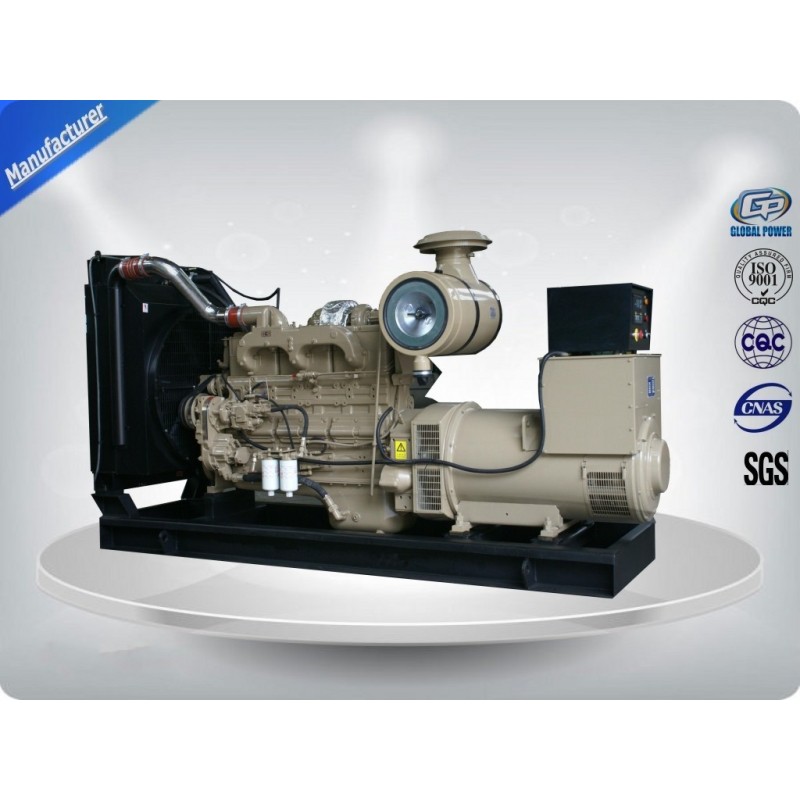

140KW 175KVA Cummins Open Diesel Generator

Guarantee;
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
