Specifications
Payment Terms :
T/T
Max Grip Force (Power Grasp) :
78 N (17.5 lbf)
Water Resistance :
IP64
Axial Load Capacity :
45.4 kg (100 lb)
MOQ :
1
Price :
US $4850.00 - 5300.00/ Set
Place of Origin :
China
Supply Ability :
3000 sets per year
Max Speed :
462 °/s (Fingers), 1848 °/s (Thumb)
Packaging Details :
Cardboard box/Wooden crate
Max Grip Force (Key Grasp) :
17 N (3.8 lbf)
Brand Name :
PSYONIC
Delivery Time :
6-8 weeks
Finger Closing Speed :
0.2s
Thumb Load Capacity :
27.2 kg (60 lb)
Max Grip Force (Pinch Grasp) :
8 N (1.8 lbf)
Description
PSYONIC Ability Hand Product Description
Product Overview
  1. Advanced multi-articulated myoelectric bionic prosthetic hand, designed for individuals with congenital or acquired upper limb differences to restore daily living functionality.
  2. Built-in touch sensing system with proportional haptic vibration feedback, delivering real-time pressure perception via high-precision fingertip sensors.

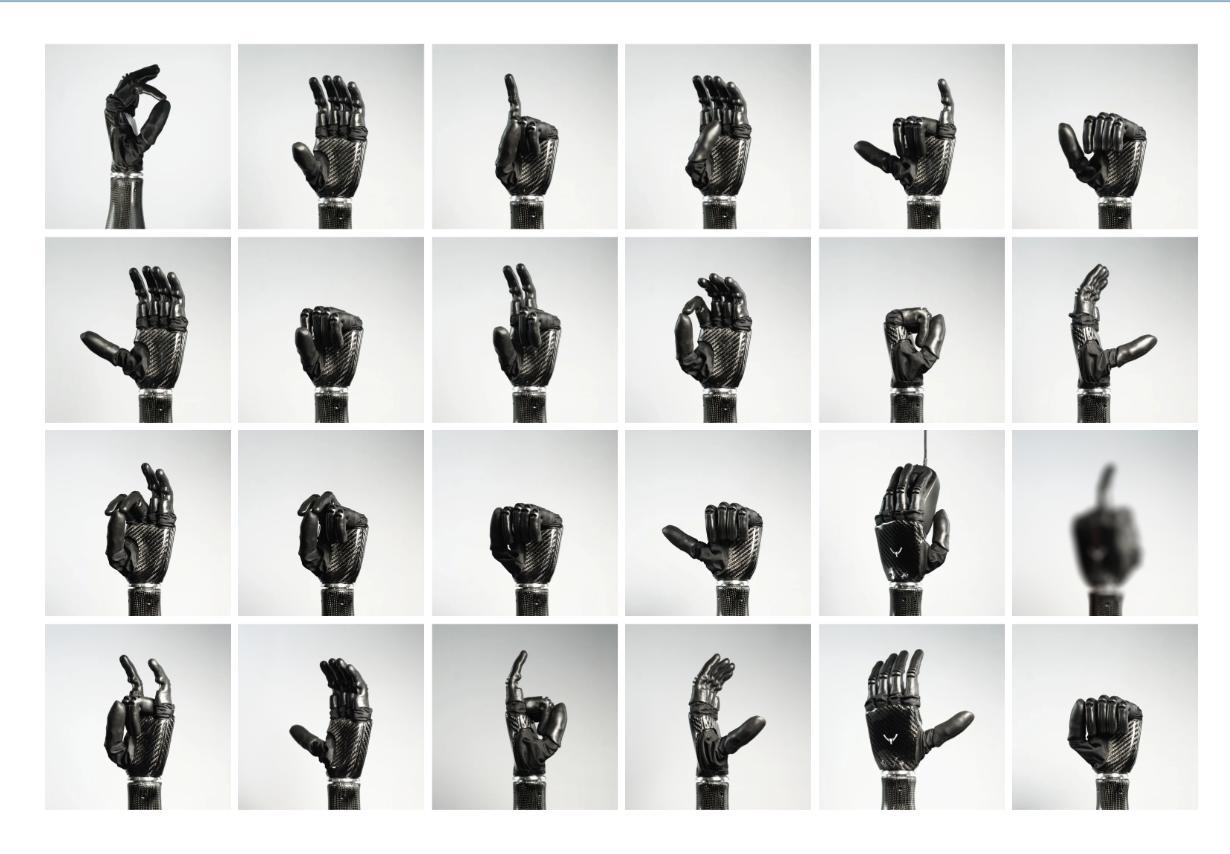

  3. Supports 31 grip patterns (20 preset + 11 customizable), compatible with EQD and Short Wrist connections for flexible prosthetic fitting.
Technical Specifications
Parameter Official Specification
Core Model PSYONIC Ability Hand (EQD / Short Wrist, Large / Small)
Weight (Large with EQD) 500 g / 1.10 lb
Max Power Grasp Force 78 N (17.5 lbf)
Finger Closing Speed 0.2 seconds
Waterproof Rating IP64 (splash-proof, non-submersible)
Battery Specs 7.4V DC, 2200 mAh lithium-ion battery
Full Charge Time 1 hour (30W USB-C fast charging)
Grip Patterns 31 total (20 preset + 11 user-customizable)
Operating Temperature -20°C to 45°C (-4°F to 113°F)
Safety Standard IEC 62113 lithium-ion battery safety certified

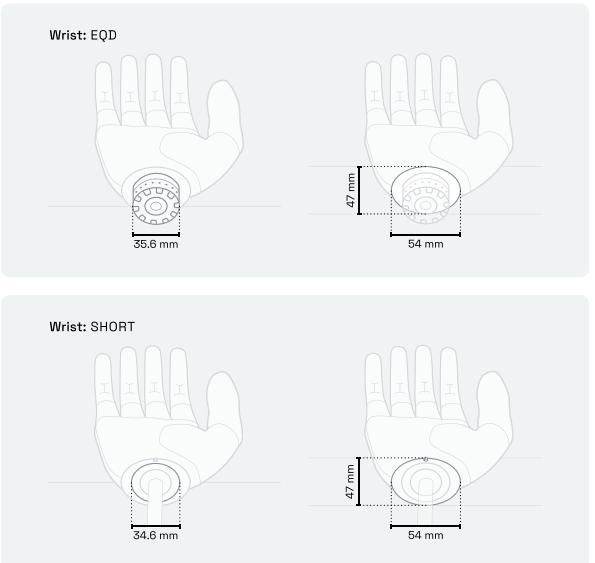

Wrist Options Electronic Quick Disconnect (EQD) / Short Wrist
Application Industry
  1. Prosthetic Clinics & Fitting Centers: Ideal for professional prosthetists to customize upper limb prosthetic solutions for amputee patients.
  2. Rehabilitation & Medical Institutions: Used in hospital rehabilitation departments to support upper limb function recovery and daily living training.
  3. Personal Home Use: Suitable for individuals with upper limb differences to complete daily activities (ADLs) independently.
Common Problems & Solutions

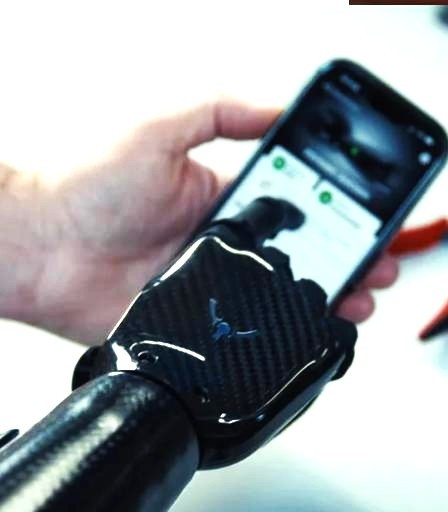

  1. Positioning deviation / calibration failure: Run auto-recalibration through the official mobile app; check the alignment of the wrist coupling shaft.
  2. Charging no response / LED off: For fully depleted batteries, wait 5 minutes after plugging in; use the official 30W USB-C charger and check port contact.
  3. Red blinking error indicator: Inspect the coaxial plug connection for looseness; contact a certified prosthetist for professional diagnosis.
Replacement Models
  1. Ability Hand EQD Small: Same electronic quick-disconnect structure in smaller size, designed for users with smaller hand dimensions.
  2. Ability Hand Short Wrist Large: Compact short wrist configuration, optimized for users with distal amputation levels, with 90° pronation/supination.
  3. Ability Hand Short Wrist Small: Low-profile short wrist version in small size, prioritizes minimal overall length for better cosmetic fit.
Why Buy From Us
  1. 100% original authentic PSYONIC products, with complete factory certification documents and standard 2-year limited warranty.
  2. Professional technical team with prosthetic industry experience, providing pre-sales model selection guidance and after-sales troubleshooting support.
  3. Mature international trade service, supporting EXW, FOB, CIF and other trade terms, with full set of export customs clearance documents.
Stock & Delivery Time
  1. Standard model (Ability Hand EQD Large) is kept in local warehouse, ready for shipment within 5 working days after payment confirmation.
  2. Bulk orders of 5 units and above: 8-10 working days preparation lead time, with reinforced export packaging for safe transit.
  3. International express delivery (DHL/FedEx/UPS) takes 6-10 working days to most regions; sea freight is available for large-volume orders.
