550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
Specifications
Brand Name :
ruiting
Model Number :
RTFQ-550
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
550KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
220V
Dimension(l*w*h) :
1200*1200*1400mm
Product name :
3550 Kraft Paper Paper Slitter Rewinder Machine With Magnetic Clutch Brake
Speed :
120m/min
Precision :
±0.1mm
Max.rewind diameter :
450mm
Max unwinding diameter :
500mm
Description

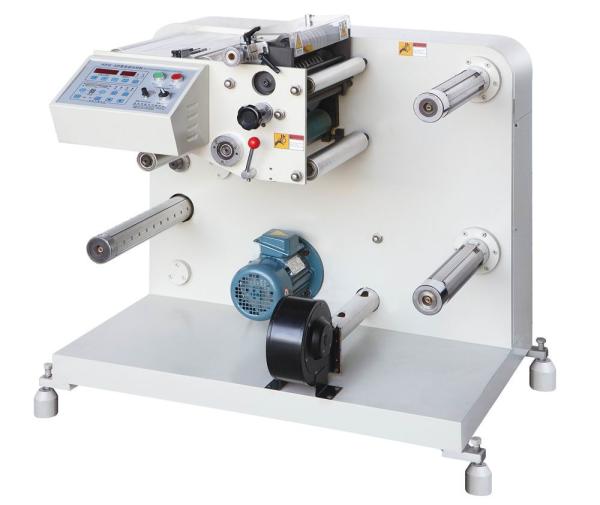

550 Kraft Paper Paper Slitter Rewinder Machine With Magnetic Clutch Brake

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

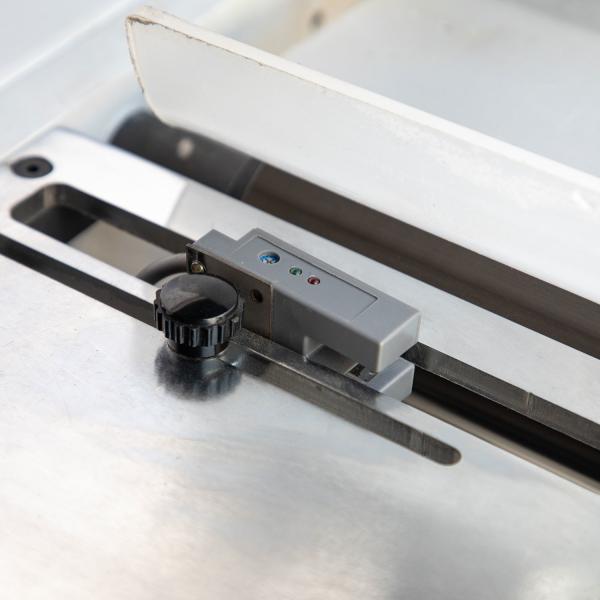

- Have 1 photo electric eyes for web guide

- Have meter counting

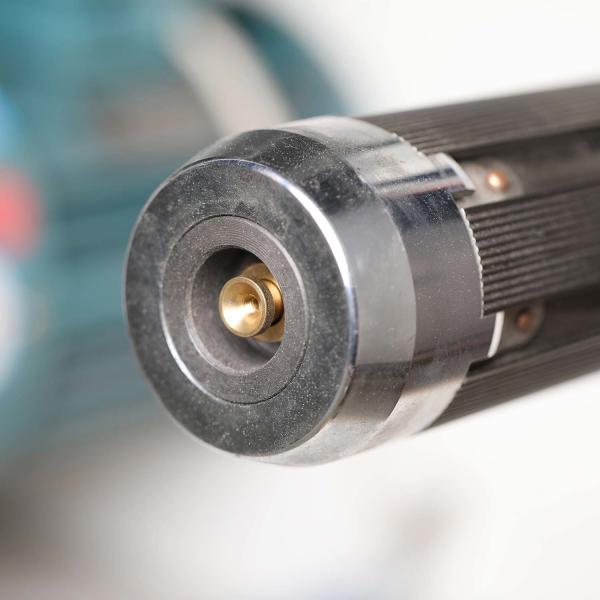

- Use 3 inch air shaft(Φ76mm) for rewinding and unwinding

- Have one wasting fan

-Have 8 sets knife

Main Technical Specification:

Cutting speed 5-120(m/min)
Max web width 550mm
Max unwinding diameter 500mm
Max rewinding diameter 450mm
Min. width after slitting 20mm
Slitting precision 0.2mm
Total power 2kw
Power supply voltage 220V
Overall diameters 1.2 (L)*1.2 (W)*1.4 (H)
Machine weight (about)550kg

550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake

550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake

550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake

550mm Kraft Paper Slitting Machine With Magnetic Clutch Brake
