Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
Specifications
Brand Name :
ruiting
Model Number :
RTFQ-420
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
500KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
220V
Dimension(l*w*h) :
1200*1200*1200mm
Product name :
320 Simple Adhesive Paper Label Slitting Machine
Speed :
120m/min
Precision :
±0.1mm
Max.rewind diameter :
500mm
Max unwinding diameter :
300mm
Description

420 Auto Paper Roll Slitter Machine With Turrent Rewind

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

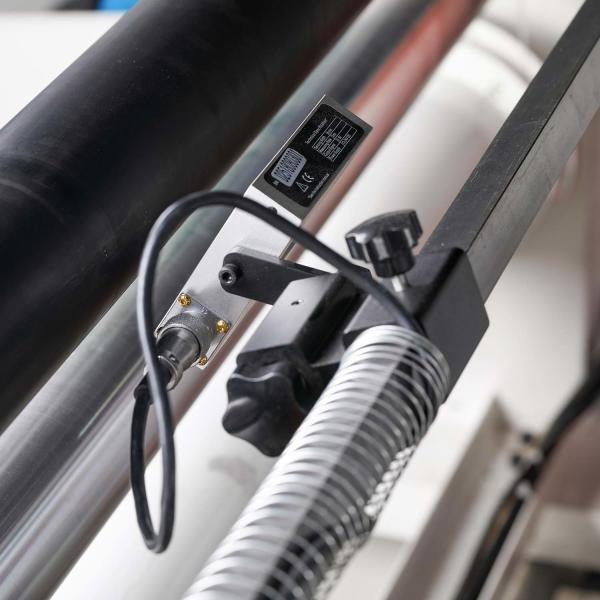

- Have 1 photo electric eyes for web guide

- Have meter counting

- Frequency inverter control system

- Use 3 inch air shaft(Φ76mm) for unwind (also can make according to your request)

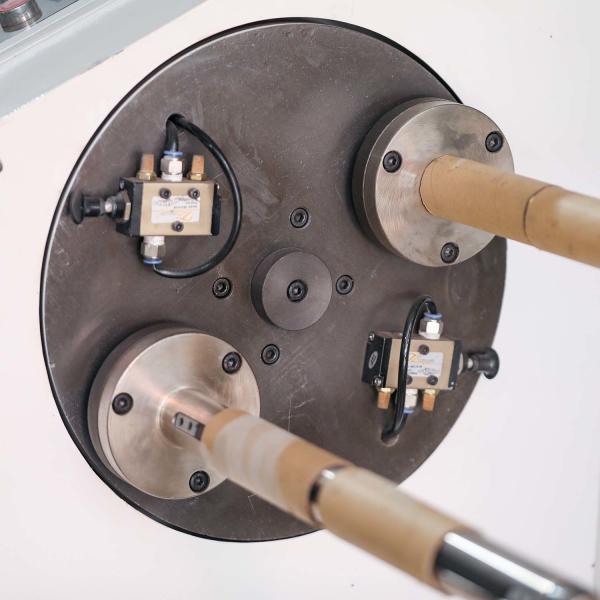

- Use turrent rewind, 1 pcs 3 inch air shaft and 1 pcs 1 inch air shaft.

- With touch screen control panel

- With auto taper tension control

- Have one wasting fan

- Have 8 sets knife

Main Technical Specification:

Cutting speed 5-180(m/min)
Max web width 420mm
Max unwinding diameter 500mm
Max rewinding diameter 300mm
Min. width after slitting 20mm
Slitting precision 0.2mm
Total power 1.5kw
Power supply voltage 220V ( can make as your request)
Overall diameters 1.2 (L)*1.2 (W)*1.2 (H)
Machine weight (about)500kg

Paper Roll Slitter Rewinder 420mm with Frequency inverter control systemPaper Roll Slitter Rewinder 420mm with Frequency inverter control system

Paper Roll Slitter Rewinder 420mm with Frequency inverter control system

Paper Roll Slitter Rewinder 420mm with Frequency inverter control system

Paper Roll Slitter Rewinder 420mm with Frequency inverter control system
