Specifications
Brand Name :
ruiting
Model Number :
RTFQ-320
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
450KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
220V
Dimension(l*w*h) :
1200*800*1400mm
Product name :
320 Simple Adhesive Paper Label Slitting Machine
Speed :
120m/min
Precision :
±0.1mm
Max.rewind diameter :
450mm
Max unwinding diameter :
500mm
Description

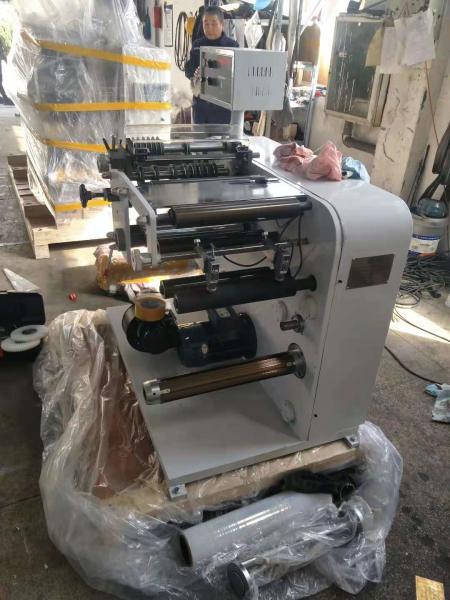

320 Simple Adhesive Paper Label Slitting Machine

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

- Have 1 photo electric eyes for web guide

- Have meter counting

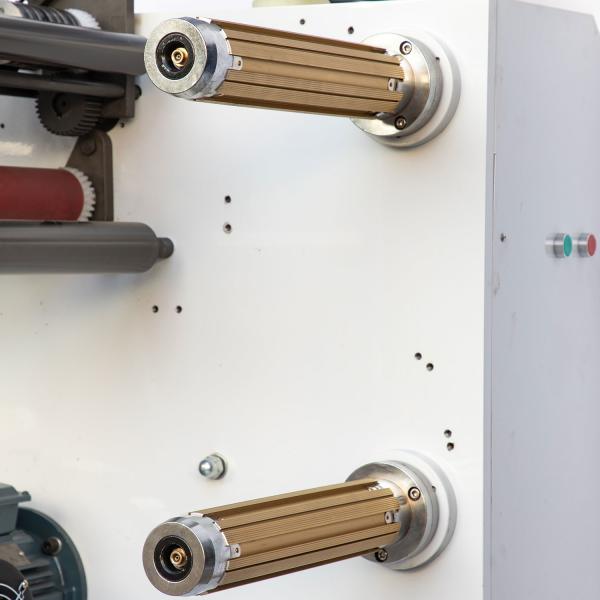

- Use 3 inch air shaft(Φ76mm) for rewinding and unwinding

- Have one wasting fan

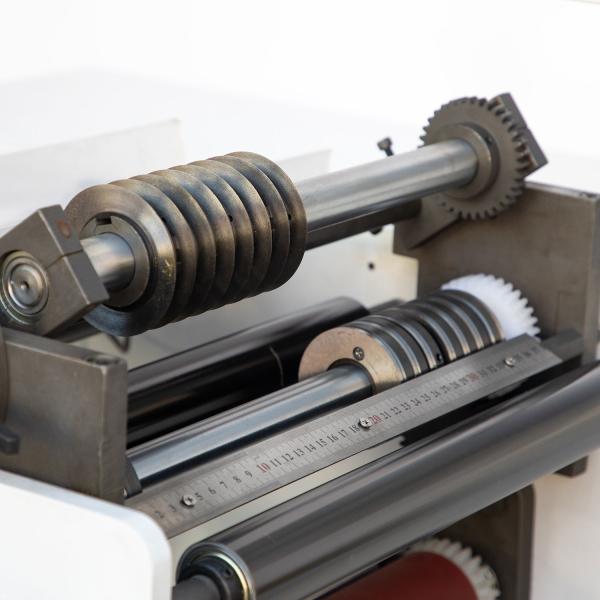

-Have 8 sets knife

Main Technical Specification:

Cutting speed 5-120(m/min)
Max web width 320mm
Max unwinding diameter 500mm
Max rewinding diameter 450mm
Min. width after slitting 20mm
Slitting precision 0.2mm
Total power 1.5kw
Power supply voltage 220V
Overall diameters 1.2 (L)*0.8 (W)*1.4 (H)
Machine weight (about)450kg
