Specifications
Brand Name :
ruiting
Model Number :
RTFQ-1600
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
2900KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V
Dimension(l*w*h) :
2400*3000*1700mm
Product name :
1600 Touch Screen Control Wide Paper Roll Slitter And Rewinder Machine
Speed :
200m/min
Precision :
±0.1mm
Max.rewind diameter :
500mm
Max unwinding diameter :
1000mm
Description

1600 Touch Screen Control Wide Paper Roll Slitter And Rewinder Machine

Product Description

This machine slitting material from jumbol wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material. The machine can use both round knife, razor knife.

Main features

1) Meter counting

2) One photoelectric eye for web guide

3) 8 sets rotary blade for slit paper(If you need also slit film, can add 8 sets straight knife)

4) 3 inch air shaft for both unwinding and rewinding

5) Automatic loading

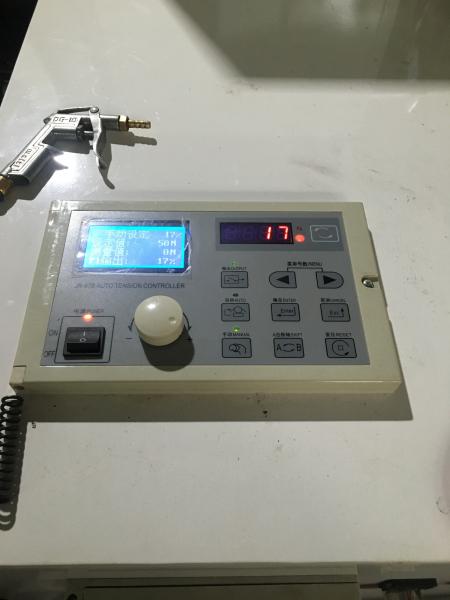

6) Auto tension control

7) Max unwinding diameter 1000mm

8) Max rewinding diameter 600mm

Main Technical Specification:

Max web width 1600mm
Max rewinding diameter 500mm
Max. unwinding diameter 1000mm
Min width 25mm
Power Supplier AC380V, 3 phase
Cutting precision 0.2mm
Cutting speed 10-200m/min
Overall dimensions(L*W*H) 2.4*3.0*1.7m
Machine weight 2900kg

380V Slitter And Rewinder Machine 1600mm Touch Screen Control

380V Slitter And Rewinder Machine 1600mm Touch Screen Control

380V Slitter And Rewinder Machine 1600mm Touch Screen Control

380V Slitter And Rewinder Machine 1600mm Touch Screen Control

380V Slitter And Rewinder Machine 1600mm Touch Screen Control

380V Slitter And Rewinder Machine 1600mm Touch Screen Control
