Specifications
Brand Name :
ruiting
Model Number :
RTFQ-900A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
1000KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
220V/380V
Dimension(l*w*h) :
2200*1700*1400mm
Product name :
900 Auto Plastic Film Slitting Machine With Seperate Unwind Max. Diameter 1000mm
Speed :
150m/min
Max.rewind diameter :
500mm
Max unwinding diameter :
1000mm
Description

900 Auto Plastic Film Slitting Machine With Seperate Unwind Max. Diameter 1000mm

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

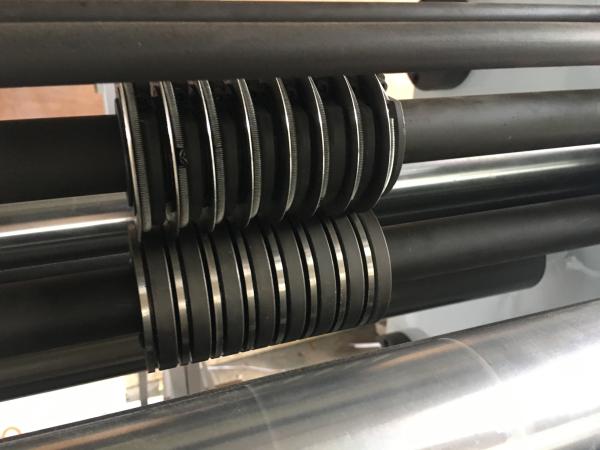

1) 8 sets of round knife in the machine

2) Unwinding and rewinding controlled by magnetic powder brake and clutch

3) Use one photocell for web guide

4) Taper tension control

5) Have meter counting

6) Use frequency inverter to control the speed

Main Technical Specification:

Max web width 900mm
Max rewinding diameter 500mm
Max. unwinding diameter 1000mm
Min width 25mm
Power Supplier AC380V, 3 phase
Cutting precision 0.2mm
Cutting speed 10-150m/min
Overall dimensions(L*W*H) 2.2*1.7*1.4m
Machine weight 1000kg

Ruiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mm

Ruiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mmRuiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mmRuiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mm

Ruiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mm

Ruiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mm

Ruiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mm

Ruiting Paper Slitting Rewinding Machine , Plastic Film Slitting Machine 1000mm
