Specifications
Brand Name :
ruiting
Model Number :
RTFD-1100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Type :
Slitting Rewinder
Condition :
New
Computerized :
Yes
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V/50Hz
Product name :
1100 Model ATM Register Thermal Paper Roll Slitter Rewinder With Auto Core Loading
Speed :
160m/min
Max.rewind diameter :
120mm
Max unwinding diameter :
1100mm
Weight :
1500KGS
Description

1100 Model ATM Register Thermal Paper Roll Slitter Rewinder With Auto Core Loading

Product Description

This ATM register thermal paper slitting rewinding machine is mainly for slit ATM receipt. It also can rewind without paper core.

Main features

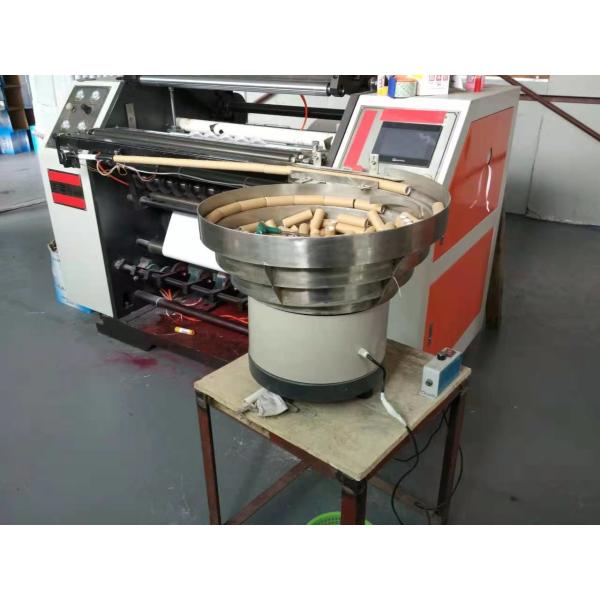

1.Unwind use hydraulic auto loading system

2.Slitting width: ≧30mm

3.Rewinding shaft inner diameter: can make according to your request or coreless

4.And will offer you total 4 pcs rewinding shaft

5.Max. Rewinding diameter: Φ120mm

6.Slitting knife: 16 sets

7.PLC language use both English and Chinese

8.Machine voltage: 380V, 3 phase

Main Technical Specification:

Max. web width 1065mm
Max. unwinding diameter Φ1100mm
Max. rewinding diameter Φ120mm
Slitting width ≥30mm
Unwinding shaft 3 inch (can make as your request)
Rewinding shaft 0.5inch, 1 inch( can make as your request) or coreless 8mm
Power supplier AC380V±10%50HZ
Slitting precision ±0.2mm
Total power 3KW
Cutting speed 5-160m/min
Overall dimensions(L*W*H) 2.2*2.1*2.05m

Material details:

Slitting material 50-400gsm thermal paper
cutting knife round knife as your request
Unwind put diameter can make machine according to your material max.size
Rewind diameter can customize
