380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
380V Paper Slitting Rewinding Machine , CE Narrow Aluminium Foil Slitting Machine
Specifications
Brand Name :
ruiting
Model Number :
RTFQ-300B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
500KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V/220V
Dimension(l*w*h) :
1100*1200*1300mm
Product name :
300B Narrow Alu Foil Roll Slitting Machinewith Auto Taper Tension Control
Speed :
160m/min
Precision :
±0.1mm
Max.rewind diameter :
400mm
Type :
paper slitting machine
Description

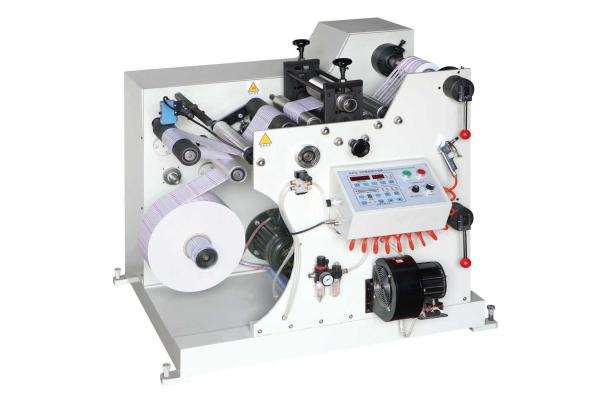

300B Narrow Alu Foil Roll Slitting Machine with Auto Taper Tension Control

Product Description

  • Use one photocell eye in the web guide system.
  • Have 8 sets slitting knife install in the machine
  • One blower fan for wasting
  • Unwinding use auto taper tension control
  • The unwind and rewind use 3 inch air shaft
  • Frequency converter

Main Technical Specification:

Max web width 300mm
Max rewinding diameter 400mm
Max. unwinding diameter 500mm
Slitting width 20mm
Power Voltage AC220V±10%
Cutting precision 0.2mm
Total Power 2KW
slitting peed 10-160m/min
Overall dimensions(L*W*H)

1.1*1.2*1.3m
Machine weight 500kg
