Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Ruiting Paper Slitting Rewinding Machine With Web Guide System
Specifications
Brand Name :
ruiting
Model Number :
RTFQ-800B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
1000KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V
Dimension(l*w*h) :
1800*1500*1500mm
Product name :
800B Jumbol Roll Slitting Machine With Web Guide System
Speed :
200m/min
Precision :
±0.1mm
Max.rewind diameter :
500mm
Max unwinding diameter :
600mm
Description

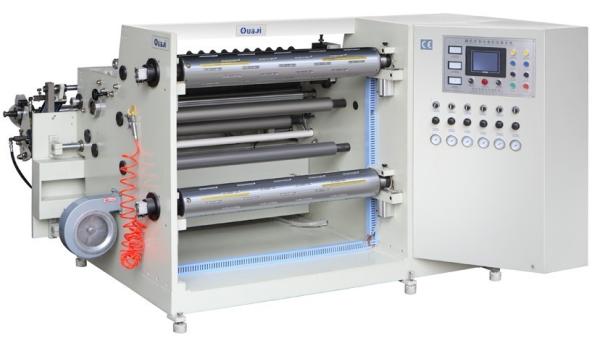

800B Jumbol Roll Slitting Machine With Web Guide System

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

1) 10 sets of round knife in the machine(If you slit film, we will offer you 10 sets straight knife)

2) Unwinding and rewinding controlled by magnetic powder brake and clutch

3) Use web guide system

4) Auto tension control

5) Have meter counting

6) Use frequency inverter to control the speed

7) PLC control system, touch screen operate

8) With auto loading system

Main Technical Specification:

Max. web width 800mm
Max. unwinding diameter 600mm
Max. rewinding diameter 500mm
Min. itemize width 20mm
Slitting precision ±0.2mm
Cutting speed 5-200m/min
Overall dimensions(L*W*H) 1.8*1.5*1.5m
Machine weight 1000kg

Ruiting Paper Slitting Rewinding Machine With Web Guide System

Ruiting Paper Slitting Rewinding Machine With Web Guide SystemRuiting Paper Slitting Rewinding Machine With Web Guide System

Ruiting Paper Slitting Rewinding Machine With Web Guide System

Ruiting Paper Slitting Rewinding Machine With Web Guide System

Ruiting Paper Slitting Rewinding Machine With Web Guide System

Ruiting Paper Slitting Rewinding Machine With Web Guide System
