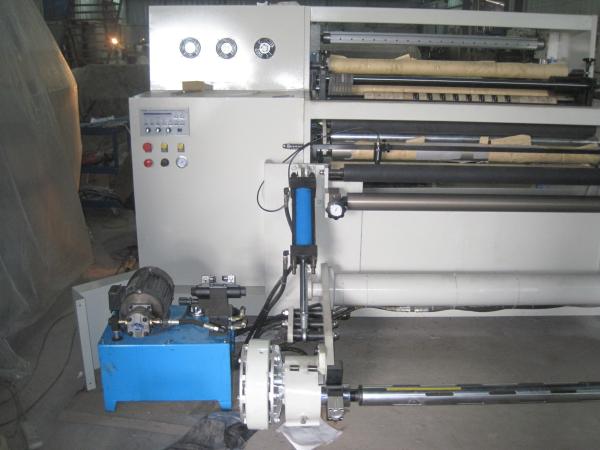

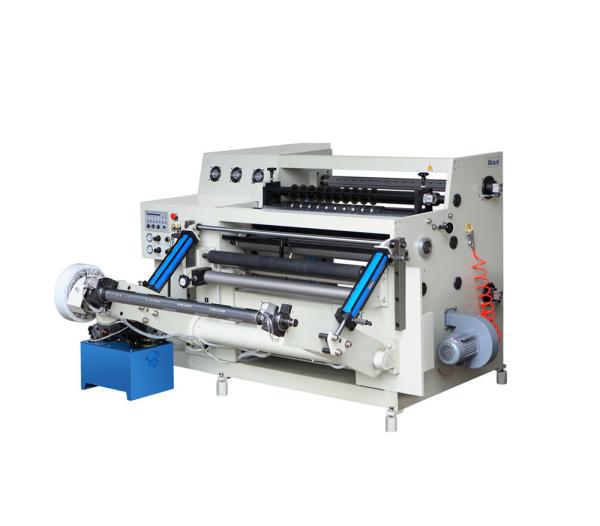

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
Specifications
Brand Name :
ruiting
Model Number :
RTFQ-1100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Weight :
2500KGS
Warranty :
1 Year
Computerized :
Yes
Voltage :
380V
Dimension(l*w*h) :
2400*2600*1700mm
Product name :
1100mm paper roll cutter machine with hydraulic loading
Speed :
220m/min
Precision :
±0.1mm
Max.rewind diameter :
600mm
Max unwinding diameter :
1000mm
Description

1100mm paper roll cutter machine with hydraulic loading

Product Description

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

1) 10 sets of round knife in the machine(If you slit film, we will offer you 10 sets straight knife)

2) Unwinding and rewinding controlled by magnetic powder brake and clutch

3) Use web guide system

4) Auto tension control

5) Have meter counting

6) Use frequency inverter to control the speed

7) PLC control system, touch screen operate

8) With auto loading system

Main Technical Specification:

Max. web width 1100mm
Max. unwinding diameter 600mm
Max. rewinding diameter 500mm
Min. itemize width 20mm
Slitting precision ±0.2mm
Cutting speed 5-220m/min
Overall dimensions(L*W*H) 2.4*2.6*1.7m
Machine weight 2500kg

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading

1100mm Paper Roll Cutter Machine PLC control system with hydraulic loading
