Specifications
Brand Name :
YuHong
Model Number :
ASTM 179
Certification :
ISO, ABS, BV, ISO, ASTM, SGS
Place of Origin :
China
MOQ :
200~500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
According to Clients' requirements
Delivery Time :
35-60 Days (Depend on Customer's Requirements)
Packaging Details :

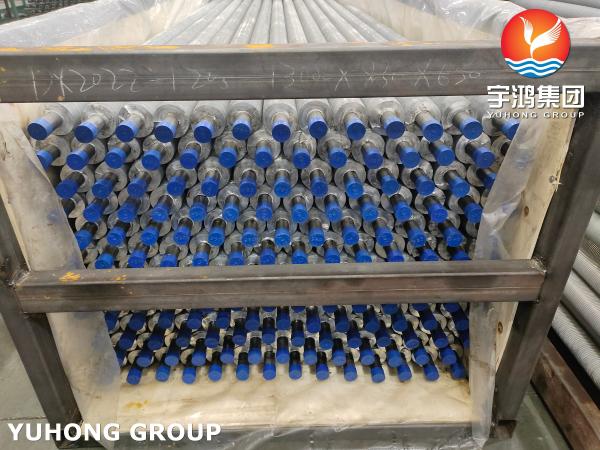

Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Product Name :
Extruded Finned Tube
Bare Tube Specification&Material :
ASTM A179
Bare Tube OD :
8~51mm
Fin material :
ASTM B221 AL-1060
Fin Height :
＜17mm
Fin Thickness :
0.2~0.4mm
Fin Pitch :
1.6~10mm
Application :
Heat exchangers for power plants, Steam condensate systems...
Description
Carbon Steel Extruded Fin Tube ASTM A179 With Al1060 Fins For Power Plants
Product Specifications
Attribute Value
Product Name Extruded Finned Tube
Bare Tube Specification & Material ASTM A179
Bare Tube OD 8~51mm
Fin material ASTM B221 AL-1060
Fin Height <17mm
Fin Thickness 0.2~0.4mm
Fin Pitch 1.6~10mm
Application Heat exchangers for power plants, Steam condensate systems
Product Overview

An extruded finned tube is a type of heat exchanger tube where fins are mechanically bonded to the outer surface of a base tube through an extrusion process. This design significantly increases the tube's surface area, improving heat transfer efficiency in applications involving air or gas cooling/heating.

Manufacturing Process
  • Base Tube Selection: Typically made of carbon steel (e.g., ASTM A179), stainless steel, or other alloys.
  • Fin Material: Common choices include Aluminum 1060 (Al1060) for lightweight and corrosion resistance.
  • Extrusion Process: The pressure and rotation mechanically bond the fin to the tube, creating a seamless, high-strength connection without soldering or welding.
Key Features
  • Strong Bond: The fins are integrally attached, reducing the risk of loosening under thermal cycling
  • High Heat Transfer Efficiency: More surface area = better heat exchange
  • Lightweight (if aluminum fins are used)
  • Corrosion-Resistant (if aluminum or stainless steel is used)
Comparison with Other Finned Tubes
Type Bonding Method Strength Thermal Performance Cost
Extruded Fins Mechanical (cold-welded) Very Strong Excellent Moderate
Embedded Fins Grooved & wrapped Good Good Lower
Welded Fins High-frequency welding Strong Very Good Higher
L-Footed Fins Crimped onto tube Moderate Good Low
Advantages Over Other Types
  • Better heat transfer than wrapped or L-footed fins
  • More durable than bonded fins (no adhesive failure risk)
  • Suitable for high-temperature cycling (unlike soldered fins)
Base Tube Material: ASTM A179

Material: Low-carbon steel (seamless cold-drawn tubes)

ASTM A179 Material Composition (Weight %)
Element Composition Range
Carbon (C) ≤ 0.06 - 0.18%
Manganese (Mn) 0.27 - 0.63%
Phosphorus (P) ≤ 0.035%
Sulfur (S) ≤ 0.035%
Silicon (Si) ≥ 0.10% (typically 0.25-0.50%)
Iron (Fe) Balance (≥ 98%)
ASTM A179 Mechanical Properties
Property Value
Tensile Strength ≥ 325 MPa (47,000 psi)
Yield Strength ≥ 180 MPa (26,000 psi)
Elongation (in 2") ≥ 35%
Hardness (Rockwell B) ≤ 72 HRB
Key Characteristics
  • Cold-drawn seamless tubes: Improved surface finish and dimensional accuracy
  • High ductility (≥35% elongation) for bending/flaring without cracking
  • Moderate strength: Suitable for low/medium-pressure heat exchangers
  • Good thermal conductivity
  • Corrosion resistance in certain environments
  • Suitable for moderate-temperature applications (e.g., boilers, condensers, heat exchangers)
Comparison with Similar Standards
Standard Carbon % Tensile Strength Key Difference
ASTM A179 0.06-0.18% ≥325 MPa Cold-drawn, seamless
ASTM A192 0.06-0.18% ≥325 MPa High-temp boilers
ASTM A106 0.30% max ≥415 MPa Higher strength, piping
Why ASTM A179 for Finned Tubes?
  • Excellent thermal conductivity (better than stainless steel)
  • Cost-effective vs. alloy tubes
  • Compatible with aluminum fins (extrusion-friendly)
Applications
Power Plants & Energy Generation
  • Air-Cooled Condensers (ACC)
  • Heat Recovery Steam Generators (HRSG)
  • Economizers
Petrochemical & Refineries
  • Process Gas Cooling/Heating
  • Lube Oil & Fuel Oil Coolers
HVAC & Refrigeration
  • Chillers & Evaporators
  • Heat Pumps
Industrial Process Heating/Cooling
  • Drying Systems
  • Chemical Reactors
Marine & Offshore
  • Seawater Coolers
Renewable Energy
  • Biomass & Waste Heat Recovery
