Specifications
Brand Name :
YUHONG
Model Number :
Extruded Fin tube , Aluminum Extruded Fin tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Payment Terms :
L/C, T/T
Base Tube Material Grade :
UNS NO8825 , Incoloy 825 , Alloy 825
Base Tube Material Standard :
ASTM B163 , ASME SB163
Type :
Straight Tube , U bend Tube , Coil Tube
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type :
Extruded Fin tube , Aluminum Extruded Fin tube , Fin tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description

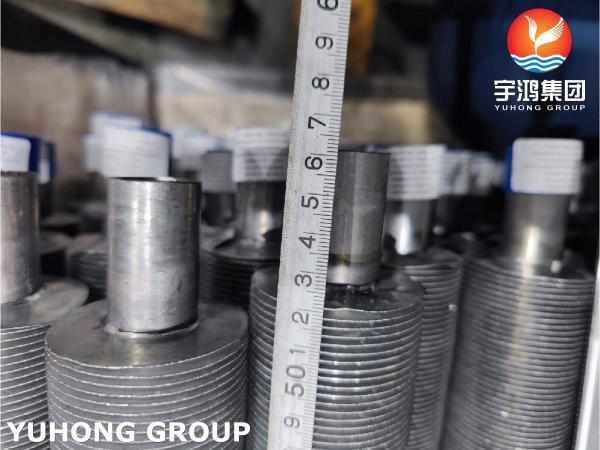

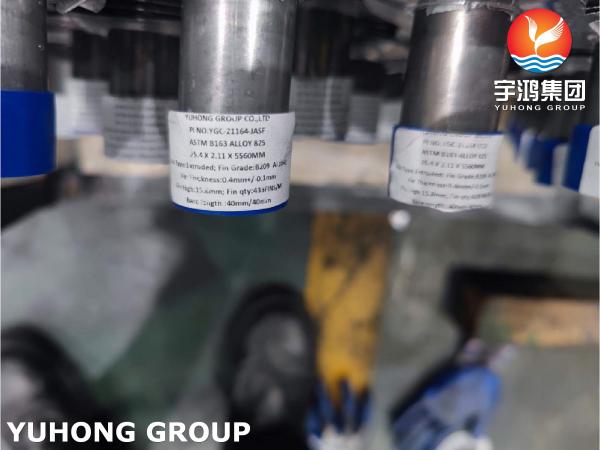

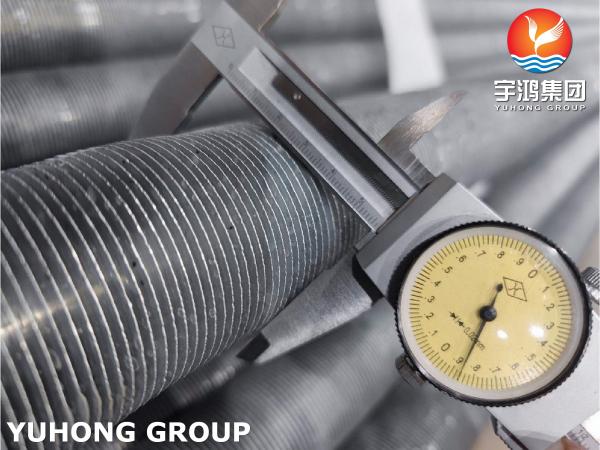

Extruded Fin Tube with ASTM B163 Incoloy 825 Base Tube and Aluminum Fins
Product Attributes
Attribute Value
Base Tube Material Grade UNS NO8825, Incoloy 825, Alloy 825
Base Tube Material Standard ASTM B163, ASME SB163
Type Straight Tube, U bend Tube, Coil Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

Extruded fin tubes with a base tube made of ASTM B163 Incoloy are specialized components designed for high-performance heat transfer applications. Incoloy, a family of nickel-chromium-based superalloys, provides excellent resistance to oxidation, corrosion, and high-temperature environments, making it an ideal choice for demanding applications.

Key Advantages
High Thermal Efficiency
  • Improved Heat Transfer: The extruded fins increase the surface area, enhancing heat transfer efficiency
  • Effective Bonding: The extrusion process ensures strong bonding between aluminum fins and Incoloy base tube
Durability and Longevity
  • Excellent corrosion and oxidation resistance for harsh environments
  • Robust construction maintains mechanical integrity under stress
Versatility
  • Suitable for petrochemical, power generation, chemical processing, oil and gas, marine applications
  • High-temperature capability for extreme operating conditions
Construction Features
  • Extrusion process creates strong mechanical bond between aluminum fins and Incoloy base tube
  • Enhanced surface area improves heat transfer efficiency
YUHONG GROUP Fin Tube Specifications
Type Description Base Tube OD (mm) Fin Pitch (mm) Fin Height (mm) Fin Thickness (mm)
Extruded Single Metal Combined Metal 8-51 1.6-10 <17 0.2-0.4
Low Fin tube T-type fin tube 10-38 0.6-2 <1.6 ~0.3
Bamboo tube Corrugated tube 16-51 8-30 <2.5 /
Material Specifications
Equivalent Materials
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT
Chemical Composition
Element Ni Cr Mo Cu Ti Fe C Mn S Si Al
% 38.0-46.0 19.5-23.5 2.5-3.5 1.5-3.0 0.6-1.2 22.0 min (~33%) 0.05 max 1.0 max 0.03 max 0.5 max 0.2 max
Mechanical Properties
Property Value
Density 8.14 g/cm³
Melting Point 1400 °C (2550 °F)
Tensile Strength 80,000 Psi / 550 MPa
Yield Strength (0.2% Offset) 32,000 Psi / 220 MPa
Elongation 30%
Applications
  • Petrochemical and Refinery Industry
  • Power Generation
  • Chemical Processing
  • Oil and Gas Industry
  • Marine Applications
  • High-Temperature Furnaces
