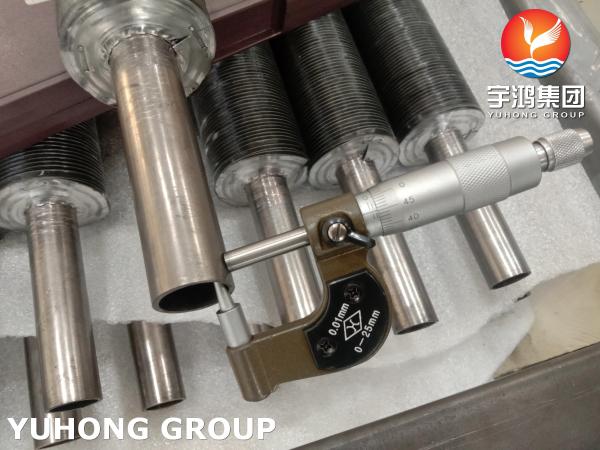

Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Straight Aluminium Extruded Fin Tube Pipe NO4400 For Intercooler ACHEs
Specifications
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Brand Name :
YUHONG
Model Number :
Extruded Fin tube , Aluminum Extruded Fin tube
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Payment Terms :
L/C, T/T
Base Tube Material Grade :
Monel 400 , NO4400 , 2.4360
Base Tube Material Standard :
ASTN B163 , ASME SB163
Type :
Straight Tube , U bend Tube , Coil Tube
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type :
Extruded Fin tube , Aluminum Extruded Fin tube , Fin tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description
Extruded Fin Tube With Base Tube ASME SB163 NO4400 And Aluminum Fin
Product Specifications
Attribute Value
Base Tube Material Grade Monel 400, NO4400, 2.4360
Base Tube Material Standard ASTN B163, ASME SB163
Type Straight Tube, U bend Tube, Coil Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

Extruded fin tubes feature fins formed by extruding a sleeve of aluminum or other materials over a base tube, creating a strong mechanical bond. This process delivers high-efficiency heat transfer with exceptional durability and resistance to thermal and mechanical stresses.

Widely used in air-cooled heat exchangers (ACHEs), these tubes provide superior heat transfer capabilities and robust construction. They efficiently transfer heat from process fluids within the tubes to surrounding air through the attached fins.

As integral components in industrial cooling systems, extruded fin tubes offer high efficiency, durability, and reliability across various applications. Their enhanced heat transfer performance and rugged construction make them ideal for demanding environments requiring efficient cooling and long service life.

Technical Specifications
Base Tube Details
  • Tube Diameter: 20 mm OD Min to 219 mm OD Max
  • Tube Thickness: Minimum 2 mm up to 16mm
  • Tube Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickel & Incolloy, CK 20 material
Fin Details
  • Fins Thickness: Min. 0.8 mm to Max. 4 mm
  • Fins Height: Min 0.25" (6.35 mm) To Max.1.5" (38 mm)
  • Fin Density: Min 43 Fins Per Meter To Max. 287 Fins Per Meter
  • Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy
Monel 400 Alloy Properties

Monel 400 is a nickel-copper alloy (67% Ni - 23% Cu) resistant to seawater, high-temperature steam, salt, and caustic solutions. This solid solution alloy can only be hardened by cold working, offering excellent corrosion resistance, weldability, and high strength. Its low corrosion rate in brackish or seawater and resistance to stress-corrosion cracking make it ideal for marine applications and non-oxidizing chloride solutions.

Chemical Composition
Grade C Mn Si S Cu Fe Ni Cr
Monel 400 0.30 max 2.00 max 0.50 max 0.24max 28.0-34.0 2.50 max 63.00 min –
Mechanical Properties
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000, MPa – 550 Psi – 35,000, MPa – 240 40 %
Physical Properties
Properties Metric Imperial
Density 8.8 gm/cm3 0.318 lb/in3
Pressure Rating
Tube O.D.(in.) Wall Thickness of Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16 3700 5400 7300
3/8 3100 4400 6100
1/2 2300 3200 4400
3/4 2200 3000 4000 4600
1 2200 2900 3400 3900 4300
Applications
  • Marine engineering
  • Chemical and hydrocarbon processing equipment
  • Gasoline and freshwater tanks
  • Crude petroleum stills
  • De-aerating heaters
  • Boiler feed water heaters and other heat exchangers
  • Valves, pumps, shafts, fittings, and fasteners
  • Industrial heat exchangers
  • Chlorinated solvents
  • Crude oil distillation towers
