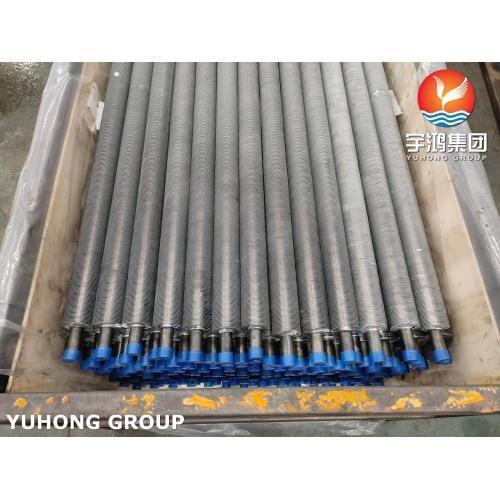

Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Industrial Extruded Fin Tube Products Carbon Steel ASTM A179 For Desalination Plants
Specifications
Brand Name :
YUHONG
Model Number :
Extruded Fin tube , Aluminum Extruded Fin tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Base Tube Material Grade :
A179
Base Tube Material Standard :
ASTM A179, ASME SA179
Type :
Straight Tube , U Bend Tube , Coil Tube
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type :
Extruded Fin tube , Aluminum Extruded Fin tube , Fin tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description
ASTM A179 With Aluminum 1060 Carbon Steel Extruded Fin Tube
Heat Exchanger and Air Cooler Application
Product Specifications
Attribute Value
Base Tube Material Grade A179
Base Tube Material Standard ASTM A179, ASME SA179
Type Straight Tube, U Bend Tube, Coil Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

ASTM A179 with Aluminum 1060 Carbon Steel Extruded Fin Tubes are specialized heat exchange elements designed for optimal thermal performance. These tubes feature extruded fins from the outer surface, created by sliding the base tube inside an outer copper or aluminum tube and passing through an automatic extrusion machine.

The extrusion process creates fins at precise heights and thicknesses, significantly increasing the surface area of the base tube to enhance heat exchange efficiency in various industrial applications.

Technical Specifications
Chemical Composition of ASTM A179 / ASME SA179
C Mn P S
0.06-0.18 0.27-0.63 ≤0.035 ≤0.035
Mechanical Properties of ASTM A179 / ASME SA179
Property Value
Tensile Strength, MPa 325 min
Yield Strength, MPa 180 min
Elongation, % 35 min
Hardness, HRB 72 max
Industrial Applications
  • Condenser and Evaporator systems
  • Desalination and Fertilization plants
  • Petrochemical Industries
  • Paper and Pulp Plants
  • Building and Construction Industries
  • Food Processing Industry
  • Heat Exchangers and Power Plants
  • Oil and Gas Plants
