Two Cores Fiber Optic Pigtails / Fiber Optic Patch Cord Single Mode OS2
Two Cores Fiber Optic Pigtails / Fiber Optic Patch Cord Single Mode OS2
Two Cores Fiber Optic Pigtails / Fiber Optic Patch Cord Single Mode OS2
Two Cores Fiber Optic Pigtails / Fiber Optic Patch Cord Single Mode OS2
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-0147
Certification :
CE, SGS, UL, ROHS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Fiber Type :
Singlemode, OS2
Fiber Count :
2
Connector 1 :
VF45
Connector 2 :
LC
Cable OD :
3.0mm
Cable Color :
Aqua
Insertion Loss :
0.35dB
Return Loss :
45dB
Description

3M VF45 to LC Fiber Optic Pigtails Singlemode OS2 Patch Lead

Feature

● Plug-to-socket design (no adapter needed);
● High-density duplex interconnect;
● V-groove alignment with injection-molded parts;
● RJ-45 style latch;
● Socket, snap together assembly;
● Eliminates expensive ferrules, sleeves or precision components;
● Easy to install, lower labor costs;
● Dependable in under-desk applications.

Specification

Volition VF-45 Patch Cords interconnected with Volition VF-45 Sockets perform to the following loss and reflection data and conform to the following combination of TIA, IEC and 3M performance specifications.

Material Specification
Singlemode Multimode
Connector Engineering Thermoplastic UL-94 VO
Boot Thermoplastic Elastomer
Fiber 9um Single-mode 50um or 62.5um, Multimode

Test Test Condition / Requirements
Singlemode Multimode
Attenuation ≤0.75dB <0.75dB
Reflection ≤-26dB >20dB
Mating Durability 500 Cycles, <0.75dB Max
Strength of coupling 33N , ≤0.75dB
Plug cable retention

Tensile load 66N, side pull 19.4N,

≤0.75dB

 Tensile load 66N, side pull 6.6N, <0.75dB
Plug flex 100 Cycles, ±90 degrees, 0.5kg, <0.75dB
Plug twist 10 Cycles, ±2.5 revolution, 15N, <0.75dB
Cold -10℃ (14°F) for 96 hours, <0.3dB increase
Heat 60℃ (140°F) for 14 days, <0.3dB increase
Humidity 40℃, 95% relative humidity for 96 hours, ≤0.4dB
Impact 8 drops @1.8m, <0.75dB
Thermal Cycling -10℃ to 60℃ (14° to 140°F), 5 cycles, 0.3dB increase
Vibration -10 to 55 Hz, 30min. each axis, <0.3dB increase

Loss (dB) Reflection (dB)
1310 850 1310 850
Mean 0.28 0.37 -33.3 -32.7
Sigmal 0.17 0.17 1.83 1.57

Volition VF-45 Patch Cords

VF-45 Patch Cords are available in the following combinations:
VF-45 to VF-45

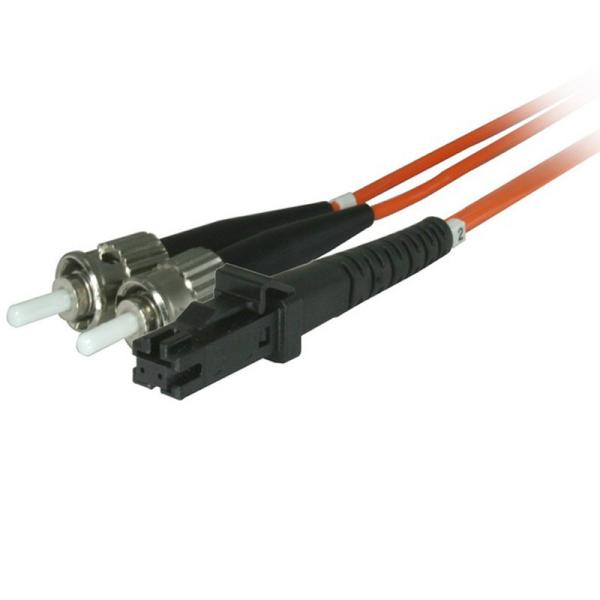

VF-45 to ST

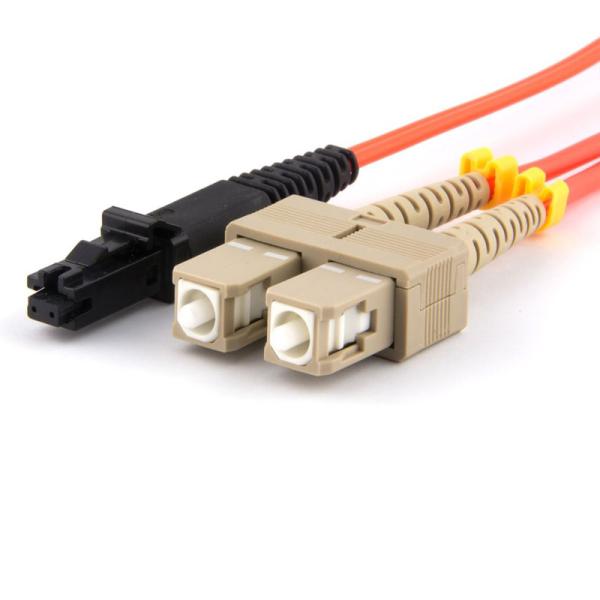

VF-45 to SC

50um Loss & Reflection Typical Performance

Loss (dB) Reflection (dB)
1.310 1.310
Mean 0.20 -56.2
Signal 0.18 3.4

Quality Guarantee

Hangalaxy has those fiber optical patch cables in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
