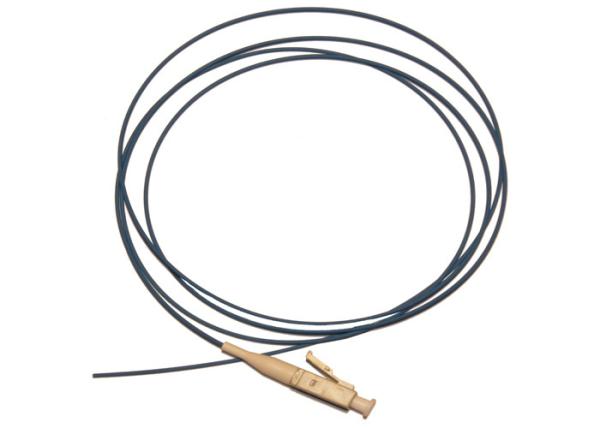

LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend 0.2dB Insertion Loss
LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend 0.2dB Insertion Loss
LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend 0.2dB Insertion Loss
LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend 0.2dB Insertion Loss
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-013
Certification :
ISO9001, CE, RohS, SGS, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Fiber Count :
1
Connector Type :
LC
Polishing Type :
UPC
Cable OD :
0.9mm
Insertion Loss :
0.2dB
Jacket Sheath :
LSZH
Cable Color :
Yellow
Return Loss :
55dB
Description

0.9mm LC UPC Singlemode Fiber Optic G657A1 Ultra Bend Pigtail LSZH Jacket


Application Supported

(1) Fusion splicing to OSP or building cables;
(2) Pigtailing to active devices such as LASERS or LEDs;
(3) Active device termination;
(4) CATV system;
(5) Active device terminations;
(6) LAN / WAN;
(7) FTTx (including FTTB, FTTC, FTTD, FTTH).

Keyed Characteristics

(1) Zirconia Ceramic Ferrule Optimum IL and RL;
(2) 0.9mm cable available for high density splicing applications;
(3) Tight buffer pigtail for ease of splicing.

Technical Details

Fiber Type SM MM

Connector Tytpe

 MTRJ

D4, FC, SC, ST, LC,

E-2000, MU

D4, FC, SC, ST, LC,

E-2000, MU

 MTRJ
Insertion Loss (Typical) ≤0.4dB ≤0.2dB ≤0.4dB ≤0.2dB
Insertion Loss (Max) ≤0.5dB ≤0. 3dB ≤0.3dB ≤0.5dB

Return Loss (Typical)

 PC ≥50dB
APC ≥65dB
UPC ≥55dB ≥55dB
Mating Durability ≤0.2dB
Durability ≥1000 times
Storage Temperature - 40℃～+ 85℃

Dimensions

Cable Diameter 0.9mm
Jacket Color Yellow or Customized
Connector LC
Polishing Type UPC
Fiber Type G657A1, SM, Single-mode
Cable Length 1m / 10ft; or customized

Environmental Specifications

Environmental Space Plenum
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

Inspection Focus - Zone A, B, C, D of the fiber connector end face

Zone Single-Mode (µm)
A - Core (Detection fineness 0.5µm) 0 - 25
B - Cladding 25 - 120
C - Adhesive 120 - 130
D - Contact 130 - 250

Zone A: Do not have any scratches, dents or Epoxy.

Zone B to Zone C: Allows for minor scratches and dents. There can be no dirt.

Zone D: Although this area is already close to the outer ferrule, it must still be inspected in detail. Because this area still belongs to the transmission area and is located in an important position to engage with the connector.

OEM/ODM Service


If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. 0.9mm LC UPC Singlemode Fiber Optic G657A1 Ultra Bend Pigtail LSZH Jacket.

Packing


(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

Shipping


(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.
