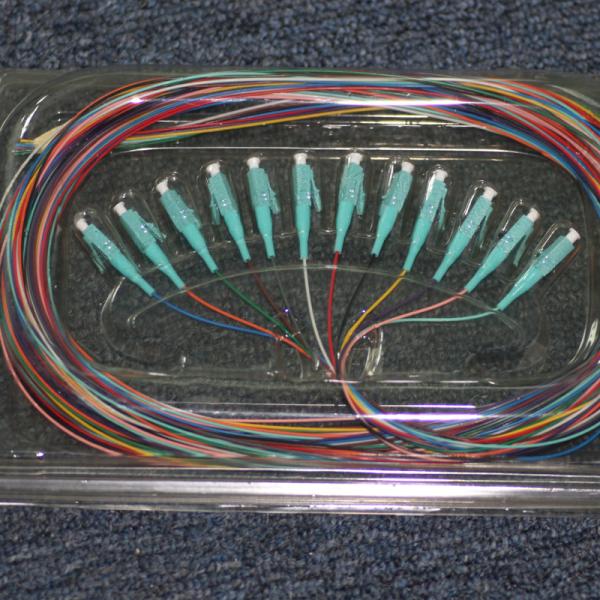

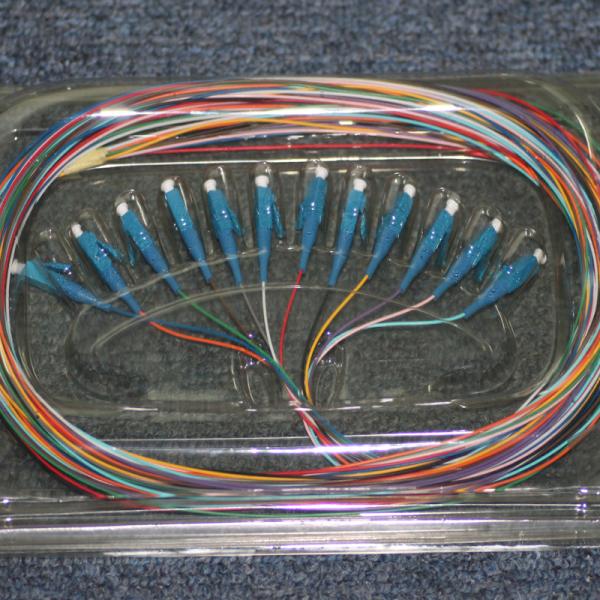

0.9mm Fiber Optic LC UPC Multimode OM3 Ribbon Fanouit Kits LSZH Pigtails

Hangalaxy provides Ribbon fan-out pigtails are made of ribbon fiber optic cables. It is generally installed in closet area or horizontal patch extension from consolidation point to the workstation outlets. Ribbonized fibers are primary coated fibers placed next to each other in one plane. An acrylate coating or polyester tape keeps the fibers together. The fiber is flat type. Most common are 4-, 8- and 12-fiber ribbon cable. Ribbon pigtails use a special device to protect the separated optic fibers(for example 12 cores),through connectors to accomplish links with other cables. Ribbon fan-out pigtails generally have two types:jacket ribbon fan-out pigtails and bare ribbon fan-out pigtails. Jacket ribbon fan-out pigtails have outer jacket on fiber ribbon. Bare ribbon fan-out pigtails have no outer jacket and generally protected by transparent tube.

Complied with or exceeds Standard

● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];

● SC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Features

1. Top quality ceramic ferrule . Top quality ber cable;
2. Low insertion loss and high return loss . UPC, APC or PC polish;
3. With a fan out kit at the junction of fibers, the fiber is flat type;
4. Good exchangeability;
5. GR-326-Core, UL94V-O, TIA/EIA-568-B.3, RoHS.

Application

1. Local area networks (LAN);
2. Wide area networks (WAN);
3. CATV, metro test equipment;
4. Telecommunication networks;
5. Data processing networks;
6. Premise installations;
7. Video and military active device termination.

Technical Parameter

Quality Control

Quality and standards are the foundation of Hangalaxy. We are dedicated to providing clients with the outstanding, standards-compliant products and services. Hanglaxy has passed many quality system verification, like ISO, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Shipping Return

Ribbon fan-out pigtails generally have two types:jacket ribbon fan-out pigtails and bare ribbon fan-out pigtails. Jacket ribbon fan-out pigtails have outer jacket on fiber ribbon. Bare ribbon fan-out pigtails have no outer jacket and generally protected by transparent tube.
