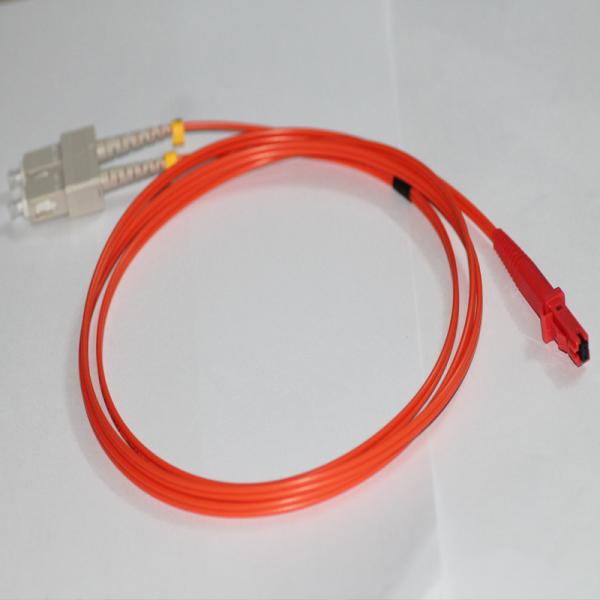

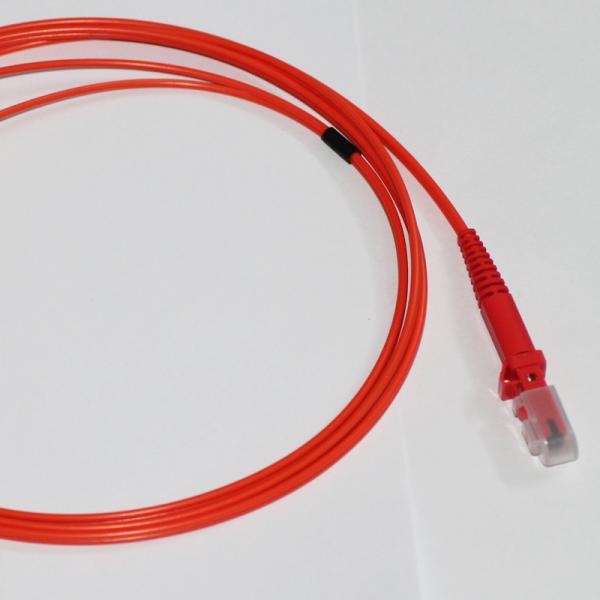

3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-0155
Certification :
CE, SGS, UL, ROHS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector 1 :
MTRJ
Connector 2 :
ST
Polish Type :
UPC
Cable OD :
3.0mm
Cable Color :
Red
Cable Jacket :
LSZH
Fiber Mode :
Multimode
Wavelength :
850nm
Description

3.0mm MTRJ to ST Fiber Multimode OM2 Optic Pigtails Duplex Patch Cable

Description

Hangalaxy manufactures offers a wide range of patch cords, designed and manufactured for demanding network applications. It comprises of multimode and singlemode. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex. Pigtails are available in LC, MT-RJ, SC and ST-style versions with both singlemode and multimode 900µm buffered fiber types. Pigtails are also available with laser optimized 50/125µm fiber. All pigtails are 100% factory tested for insertion loss after polishing. For special requirements such as custom lengths and buffer colors, contact our representative.

Features

(1) Zirconia Ceramic Ferrule Optimum IL and RL;
(2) 0.9mm cable available for high density splicing applications;
(3) Tight buffer pigtail for ease of splicing.

Applications

1. Active device termination;
2. CATV system;
3. Active device terminations;
4. LAN / WAN;
5. FTTx (including FTTB, FTTC, FTTD, FTTH).

Technical Parameter

Fiber Type SM MM

Connector Tytpe

 MTRJ

D4, FC, SC, ST, LC,

E-2000, MU

D4, FC, SC, ST, LC,

E-2000, MU

 MTRJ
Insertion Loss (Typical) ≤0.4dB ≤0.2dB ≤0.4dB ≤0.2dB
Insertion Loss (Max) ≤0.5dB ≤0. 3dB ≤0.3dB ≤0.5dB

Return Loss (Typical)

 PC ≥50dB
APC ≥65dB
UPC ≥55dB ≥55dB
Mating Durability ≤0.2dB
Durability ≥1000 times
Storage Temperature - 40℃～+ 85

Cable Diameter 0.9mm
Jacket Color Yellow or Customized
Connector LC
Polishing Type APC
Fiber Type G657A1, SM, Single-mode
Cable Length 1m / 10ft; or customized

Environmental Space Plenum
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket

3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket

PLC Spliters Workshop

3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket

Packing Information

1PCS Each Individual Quality PE Bag.

If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
