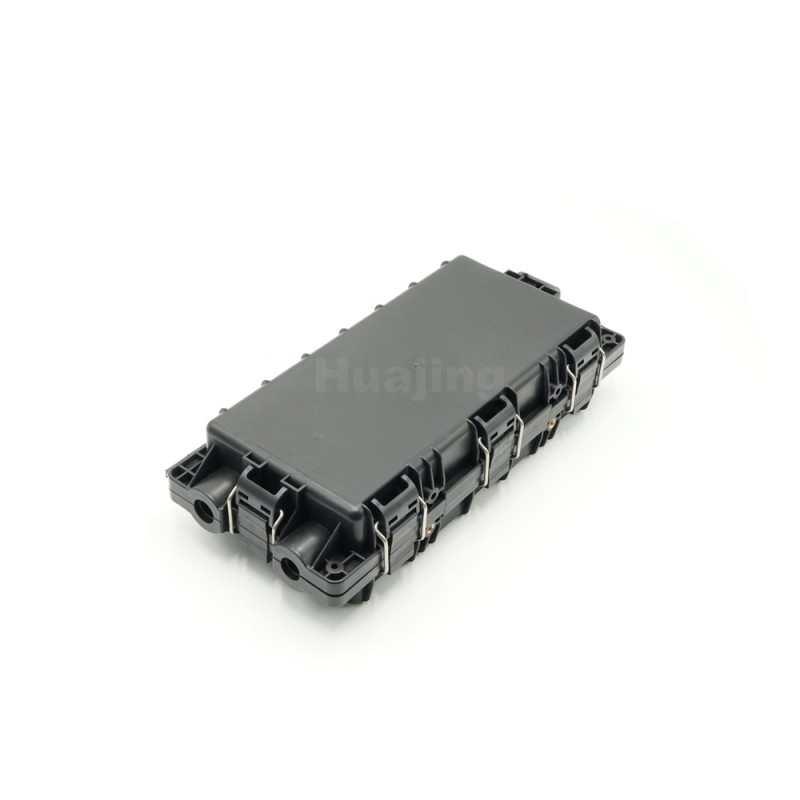

Horizontal Fiber Optic Closure Featuring Sealing With Silicon Gum And Stainless Steel Clamp For Optical Cable Protection
Horizontal Fiber Optic Closure Featuring Sealing With Silicon Gum And Stainless Steel Clamp For Optical Cable Protection
Horizontal Fiber Optic Closure Featuring Sealing With Silicon Gum And Stainless Steel Clamp For Optical Cable Protection
Horizontal Fiber Optic Closure Featuring Sealing With Silicon Gum And Stainless Steel Clamp For Optical Cable Protection
Horizontal Fiber Optic Closure Featuring Sealing With Silicon Gum And Stainless Steel Clamp For Optical Cable Protection
Horizontal Fiber Optic Closure Featuring Sealing With Silicon Gum And Stainless Steel Clamp For Optical Cable Protection
Specifications
Model Number :
GJS(08)-KS-2
Material :
ABS
Price :
8.6-12.5USD/PC
Weight :
1.85 kg
Delivery Time :
1-4weeks
Cover feature :
Hinged cover with spring locks
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cable port :
4
Place of Origin :
China
Splice capacity :
144 cores
Mounting options :
Pole, wall, and underground
Brand Name :
Huajing
Model. :
GJS(08)-KS-2
MOQ :
100
Dimensions :
337*160*84mm
Description

Application:

The product can be applied in the straight line and branch line connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

  1. The case body is made of high-intensity engineering plastics(ABS).
  2. The case body and cable ports are sealed with silicon gum combined with multiple stainless steel spring locks, with reliable sealing performance, easy to re-open, use and maintain.
  3. Unique configuration of different cable loops enables user to flexibly choose according to the outer diameter of optical cable, effectively enhancing the reliability of the cable inlet/outlet seal of the joint box
  4. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  5. Internal and external secondary optical cable fixing devices make the installation of optical cable more secure and convenient.

Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP67

Specification:

Parameter Packing Detail
Model. GJS(08)-KS-2 Carton Size(mm) 370×370×510/10pcs
Size(mm) 337*160*84 CBM(m³) 0.07
Weight(Kg) 1.85 Grossweight(Kg) 20.1
Cable in/out 2 in 2 out
Cable diameter (mm) Φ10~Φ18
Splice tray capacity＆quantity 24(single core)＆6pcs
Core capacity 144(single core)
Sealing type Silicon rubber
