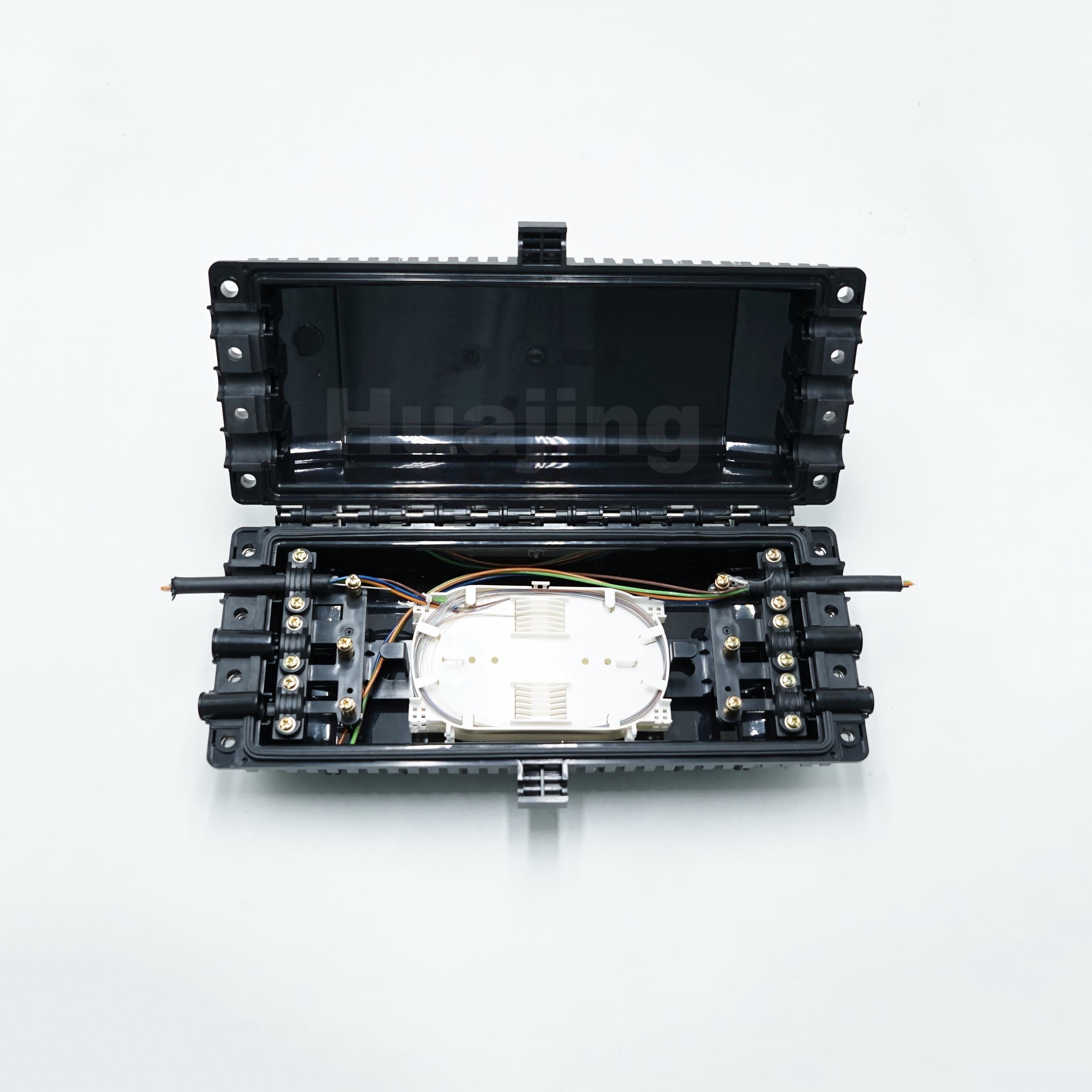

Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
Specifications
Model Number :
GJS(08)-KS-3
Material :
ABS
Capacity :
240 cores
Price :
100
Size :
410*205*135mm
Payment Terms :
T/T,D/P,D/A,L/C,Western Union
Cable port :
3 in /3 out
Delivery Time :
1-4weeks
Cable diameter :
Φ7~Φ23mm
Brand Name :
Huajing
Model. :
GJS(08)-KS-3
Description

Application:

This product is suitable for the direct connection of overhead, pipeline, direct buried and well laying of various types and different structures of optical cable with a diameter of φ 23mm.

Features:

  1. All performance indicators meet the requirements of the latest national standards
  2. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life;
  3. The sealing of the box body and the cable inlet outlet is made of integrally formed rubber, combined with hinges and inclined wedges. The sealing performance is reliable, and it is easy to open;
  4. According to the actual usage of users, the maximum cable inlet and outlet diameter of this product are 16mm, 20mm, 23mm, According to the requirements to configure plug sealing box body, effectively enhancing the reliability and stability of the sealing cable ports.
  5. Stacked structure splice tray make the fiber core configuration and expansion flexible
  6. Users can choose metal or plastic cable holder structures based on actual engineering needs.

Technical index:

  • Fiber-optic radius of curvature: 40mm
  • Additional loss of the fiber optic disc: 0.01dB
  • Temperature range: -20℃ ~ + 60℃
  • Lateral pressure resistance: 2,000 N / 10 cm
  • Impact resistance: 20N.m
  • Protection level: IP65

Specification:

Parameter Packing Detail
Model. GJS(08)-KS-3 Carton Size(mm) 460×460×620/8pcs
Size(mm) 410*205*135 CBM(m³) 0.14
Weight(Kg) 2.6 Grossweight(Kg) 22.3
Cable in/out 3 in 3 out Others
Cable diameter Φ7~Φ23
Splice tray capacity＆quantity 24(single core)＆10pcs
Core capacity 240(single core)
sealing type Silicon rubber inner box (mm) 430*120*145

Horizontal Optical Fiber Closure With Hinged Cover And 3 Inlets 3 Outlets Supporting 240 Cores Capacity
