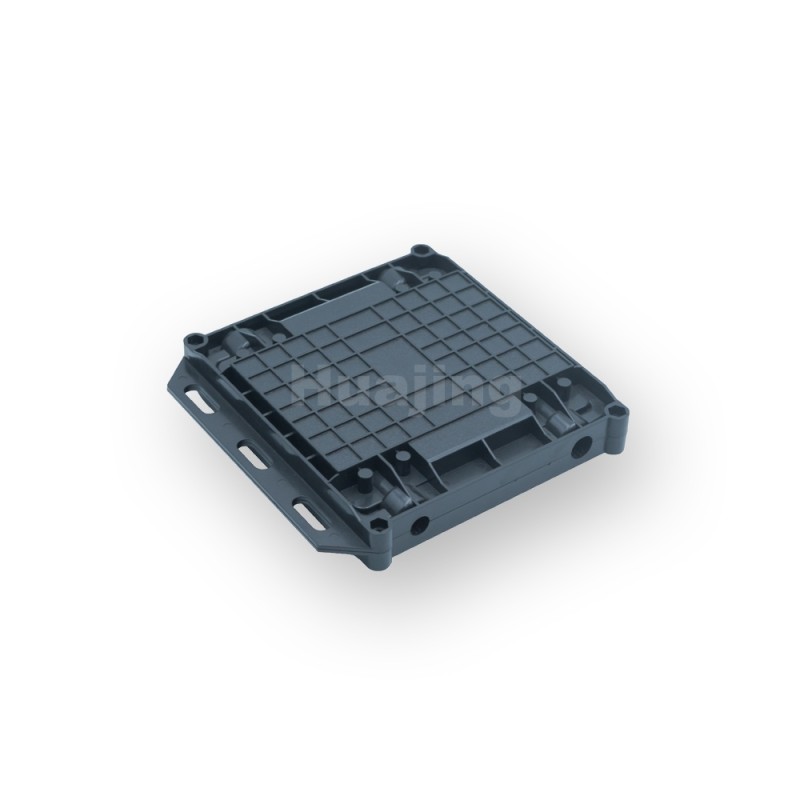

4 Ports Flexible In Line Splice Closure For Optical Fiber Cable 16 Cores Capacity
4 Ports Flexible In Line Splice Closure For Optical Fiber Cable 16 Cores Capacity
4 Ports Flexible In Line Splice Closure For Optical Fiber Cable 16 Cores Capacity
4 Ports Flexible In Line Splice Closure For Optical Fiber Cable 16 Cores Capacity
4 Ports Flexible In Line Splice Closure For Optical Fiber Cable 16 Cores Capacity
4 Ports Flexible In Line Splice Closure For Optical Fiber Cable 16 Cores Capacity
Specifications
Model Number :
GJS(04)-5C
Sealing method :
Silicon rubber
Material :
ABS
Cable diameter (mm) :
≤ Φ12
Cable port :
2 / 2
Brand Name :
Huajing
Price :
4.87-9.67USD/PC
Place of Origin :
China
Mounting options :
Pole, wall, and underground
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Splice capacity :
16 cores
Dimensions :
207*210*45mm
Delivery Time :
1-4weeks
MOQ :
100
Description

Application:

The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

  1. The case body is made from high-intensity engineering plastics(ABS).
  2. The case body and cable inlet/outlet are sealed with adhesive rubber strip (non-vulcanized) and belts, which have reliable sealing performance and are easy to reopen, use and maintain.

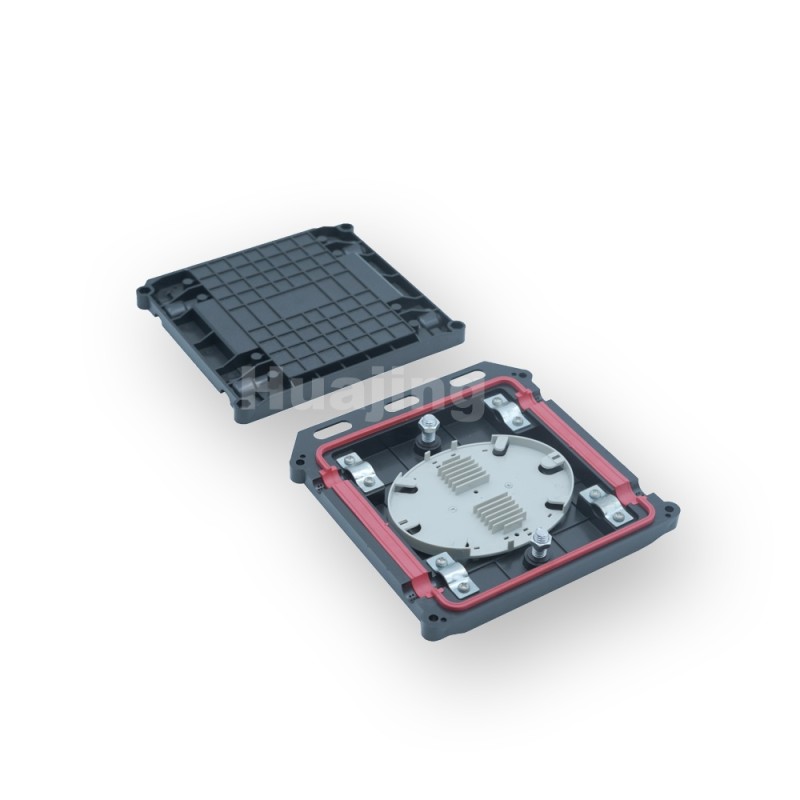

  3. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  4. The metal components and fasteners outside the box body are all made of stainless steel, which can meet various environments and be reused.
  5. Internal and external secondary optical cable fixing devices make the installation of optical cable more secure and convenient.

Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 65℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP66

Specification:

Parameter Packing Detail
Model. GJS(04)-5C Carton Size(mm) 530×500×390/20pcs
Size(mm) 207*210*45 CBM(m³) 0.104
Weight(Kg) 0.8 Grossweight(Kg) 17.6
Cable in/out 2 in 2 out
Cable diameter ≤ Φ12
Splice tray capacity＆quantity 16(single core)＆1pc
Core capacity 16(single core)
Sealing type Silicon rubber
