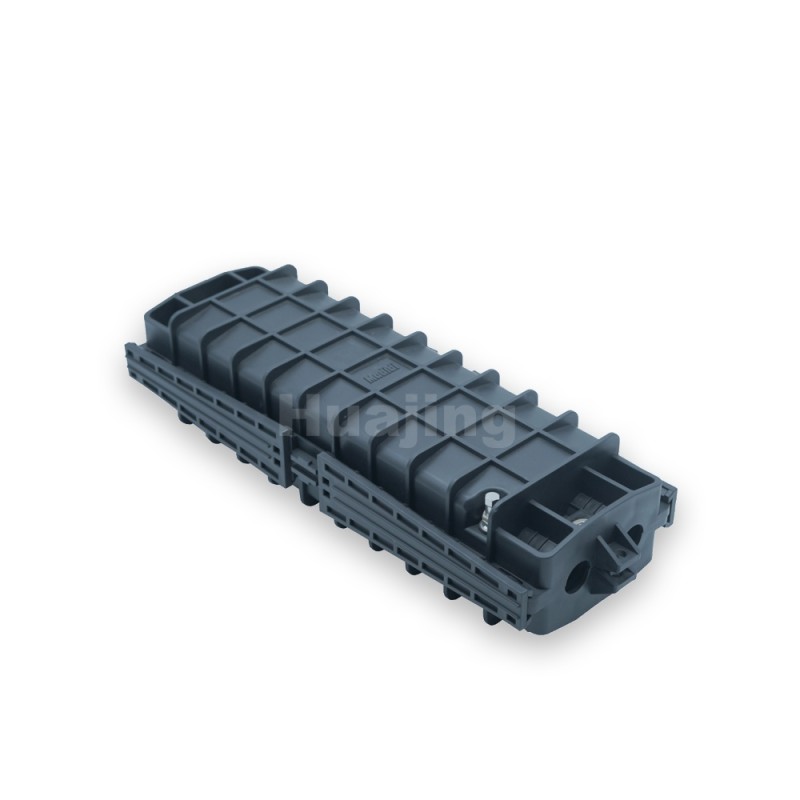

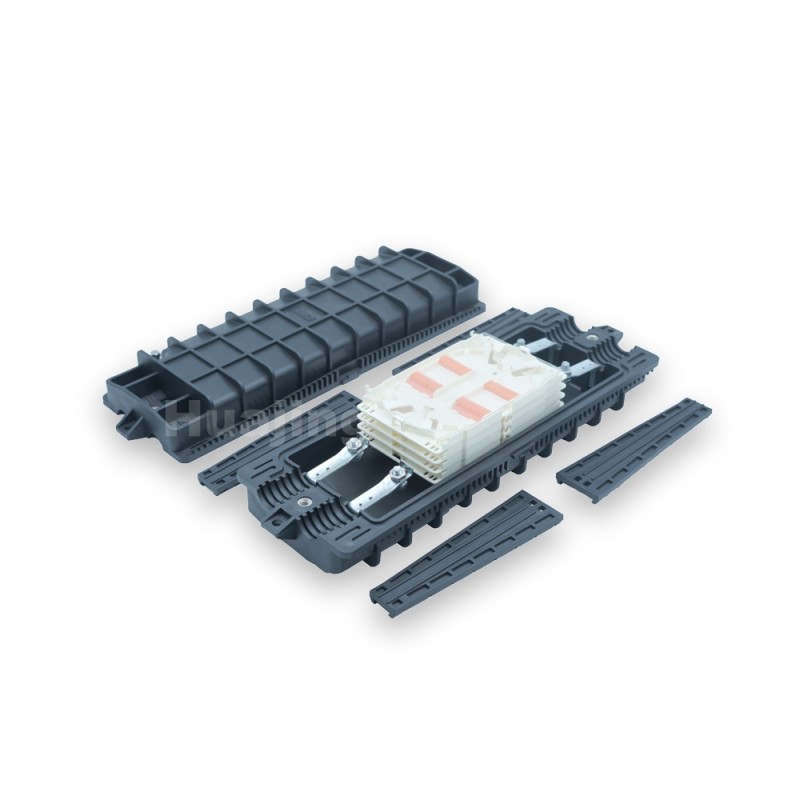

96 Cores Flexible Optical Fiber Splice Closure 4 Ports Unvulcanized Rubber Sealing
96 Cores Flexible Optical Fiber Splice Closure 4 Ports Unvulcanized Rubber Sealing
96 Cores Flexible Optical Fiber Splice Closure 4 Ports Unvulcanized Rubber Sealing
96 Cores Flexible Optical Fiber Splice Closure 4 Ports Unvulcanized Rubber Sealing
96 Cores Flexible Optical Fiber Splice Closure 4 Ports Unvulcanized Rubber Sealing
96 Cores Flexible Optical Fiber Splice Closure 4 Ports Unvulcanized Rubber Sealing
Specifications
Sealing method :
Unvulcanized rubber/Silicon rubber
Delivery Time :
1-4weeks
Material :
Alloy plastic MPP
Weight :
2.45 kg
Cable port :
4
Model Number :
GJS(05)-1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Price :
10.04-19.8USD/PC
Mounting options :
Pole, wall, and underground
Brand Name :
Huajing
Place of Origin :
China
MOQ :
100
Splice capacity :
96 cores
Dimensions :
470（440）*165*110
Description

Application:
The product can be applied in the straight line and branch line connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables. The most feature of this product suitable for extreme climate.


Features:

  1. Composite engineering plastic box body and sealing material filling structure suitable for extreme climates
  2. Adopts a four-plate locking and sealing structure for easy installation.
  3. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  4. The metal components outside the box body are all made of stainless steel, which can meet various environments and be reused.
  5. Internal and external secondary optical cable fixing devices make the installation of optical cable more secure and convenient.



Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP68



Specification:

ParameterPacking Detail
Model.GJS(05)-1Carton Size(mm)550×385×385/6pcs
Size(mm)470(440)*165*110CBM(m³)0.082
Weight(Kg)2.45Grossweight(Kg)16.3
Cable in/out2 in 2 out
Cable diameterΦ10~Φ22
Splice tray capacity＆quantity24(single core)＆4pcs
Core capacity96(single core)
Sealing typeUnvulcanized rubber/Silicon rubber
