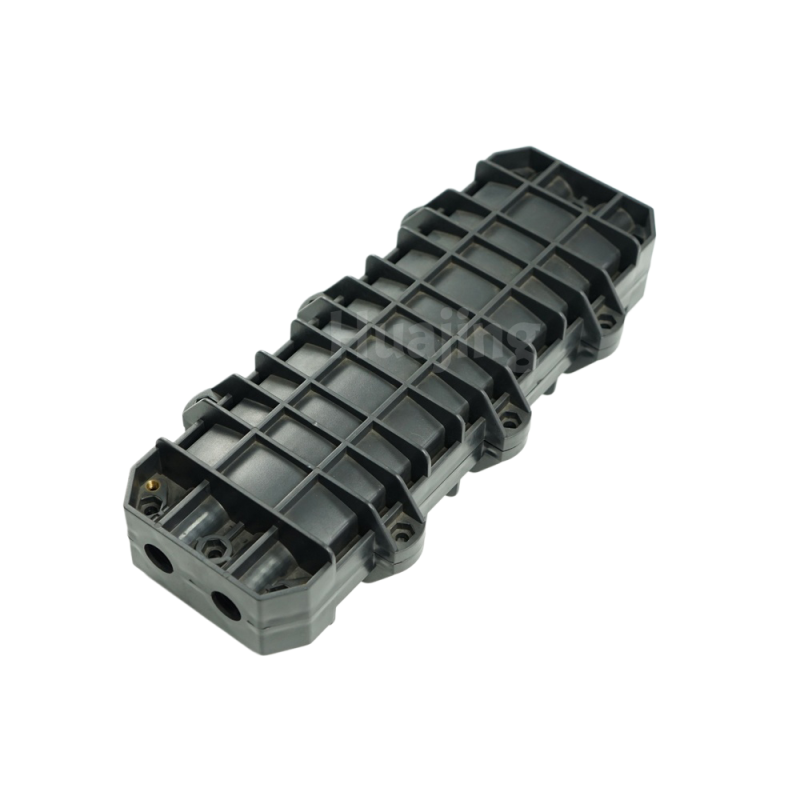

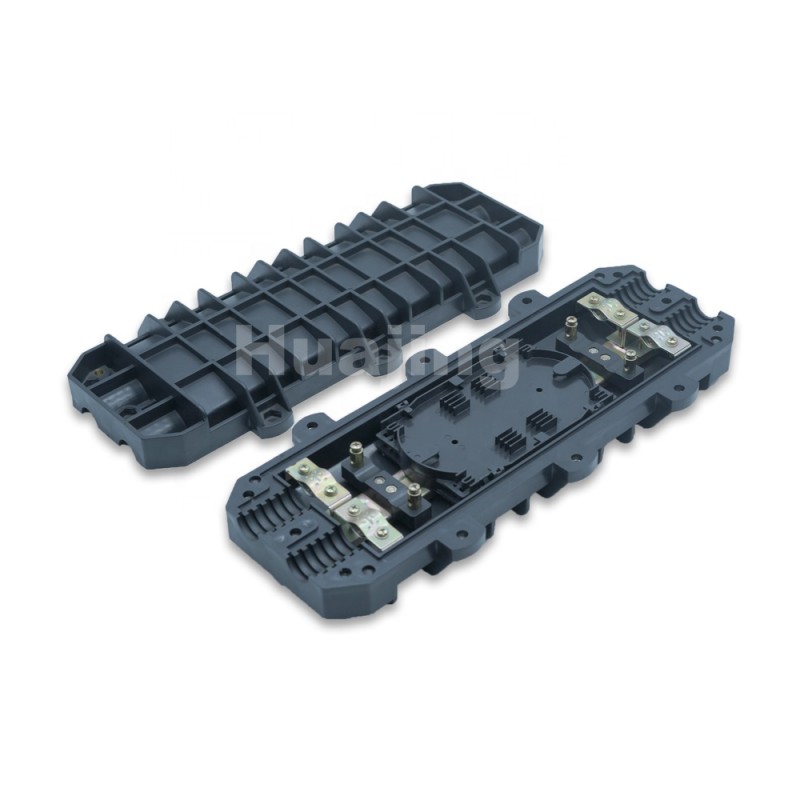

Flexible In Line Splice Closure For Optical Fiber 4 Ports 96 Cores Capacity
Flexible In Line Splice Closure For Optical Fiber 4 Ports 96 Cores Capacity
Flexible In Line Splice Closure For Optical Fiber 4 Ports 96 Cores Capacity
Flexible In Line Splice Closure For Optical Fiber 4 Ports 96 Cores Capacity
Specifications
Sealing method :
Unvulcanized rubber
Model Number :
GJS(04)1
Material :
ABS
Weight :
2.6 kg
Delivery Time :
1-4weeks
Cable port :
4
MOQ :
100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Mountingoptions :
Pole, wall, and underground
Supply Ability :
8.7-12.55
Brand Name :
Huajing
Price :
8.12-15.6USD/PC
Splice capacity :
96 cores
Place of Origin :
China
Dimensions :
435*185*85mm
Description

Application:

The product can be applied in the straight line and branch line connections of optical cables within the diameter of φ22mm, all types and structures, when laid overhead ,in the pipeline, underground. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

  1. All property indexes are in accordance with National YD/T814-2004 Standard.
  2. The case body is made of high-intensity engineering plastics(ABS) with less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
  3. The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) and sealed tape. With reliable sealing capability, it can be re-opened and easy to maintain.
  4. Unique disposition different cable loops enables user to flexibly choose according to different outer diameter to cables, which enhances the reliability of the cable inlet/outlet seal.
  5. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  6. All outer metal component and fixing unit are made of stainless steel.

Technical index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Fiber length left in tray: ≥1.6m
  • Working temperature: -40℃ ~ +70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • shock-resistance:≥20N.m
  • Protection: IP68

Specification:

Parameter Packing Detail
Model. GJS(04)-1 Carton Size(mm) 515×425×545/10pcs
Size(mm) 435*185*85 CBM(m³) 0.117
Weight(Kg) 2.6 Grossweight(Kg) 27.6
Cable in/out 2 in 2 out
Cable diameter (mm) Φ10～Φ22
Splice tray capacity＆quantity 24(single core)＆4pcs
Core capacity 96(single core)
Sealing type Unvulcanized rubber
