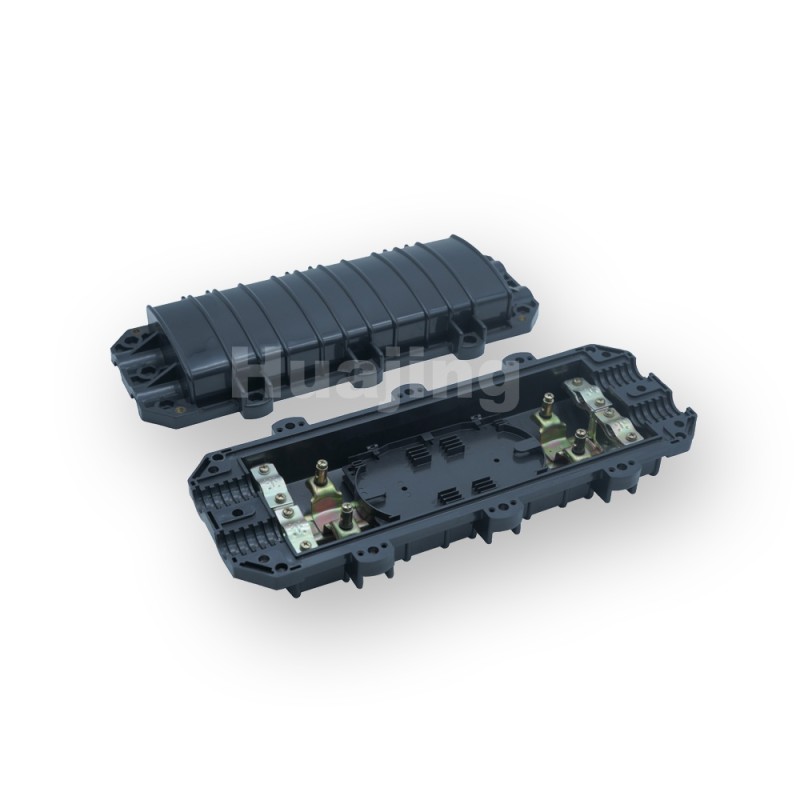

ABS Flexible In Line Fiber Optic Splice Enclosure 4 Ports 192 Cores Capacity
ABS Flexible In Line Fiber Optic Splice Enclosure 4 Ports 192 Cores Capacity
ABS Flexible In Line Fiber Optic Splice Enclosure 4 Ports 192 Cores Capacity
ABS Flexible In Line Fiber Optic Splice Enclosure 4 Ports 192 Cores Capacity
Specifications
Sealing method :
Unvulcanized rubber/Silicon rubber
Material :
ABS
Weight :
2.6 kg
Brand Name :
Huajing
Cable port :
4
Mountingoptions :
Pole, wall, and underground
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Model Number :
GJS(04)3
MOQ :
100
Splice capacity :
192 cores
Place of Origin :
China
Delivery Time :
1-4weeks
Price :
8.34-12.77USD/PC
Dimensions :
435*190*120mm
Description

Application:

The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features:

  1. The case body is made from high-intensity engineering plastics(ABS).
  2. The case body and cable inlet/outlet are sealed with adhesive rubber strip (non-vulcanized) and belts, which have reliable sealing performance and are easy to reopen, use and maintain.
  3. Unique configuration of different cable loops enables user to flexibly choose according to the outer diameter of optical cable, effectively enhancing the reliability of the cable inlet/outlet seal of the joint box
  4. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  5. The metal components outside the box body are all made of stainless steel, which can meet various environments and be reused.
  6. Internal and external secondary optical cable fixing devices make the installation of optical cable more secure and convenient.

Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP68​

Specification:

Parameter Packing Detail
Model. GJS(04)-3 Carton Size(mm) 515×425×575/8pcs
Size(mm) 435*190*120 CBM(m³) 0.126
Weight(Kg) 2.6 Grossweight(Kg) 22.4
Cable in/out 2 in 2 out
Cable diameter Φ10~Φ22
Splice tray capacity＆quantity 24(single core)＆8pcs
Core capacity 192(single core)
Sealing type Unvulcanized rubber/Silicon rubber
