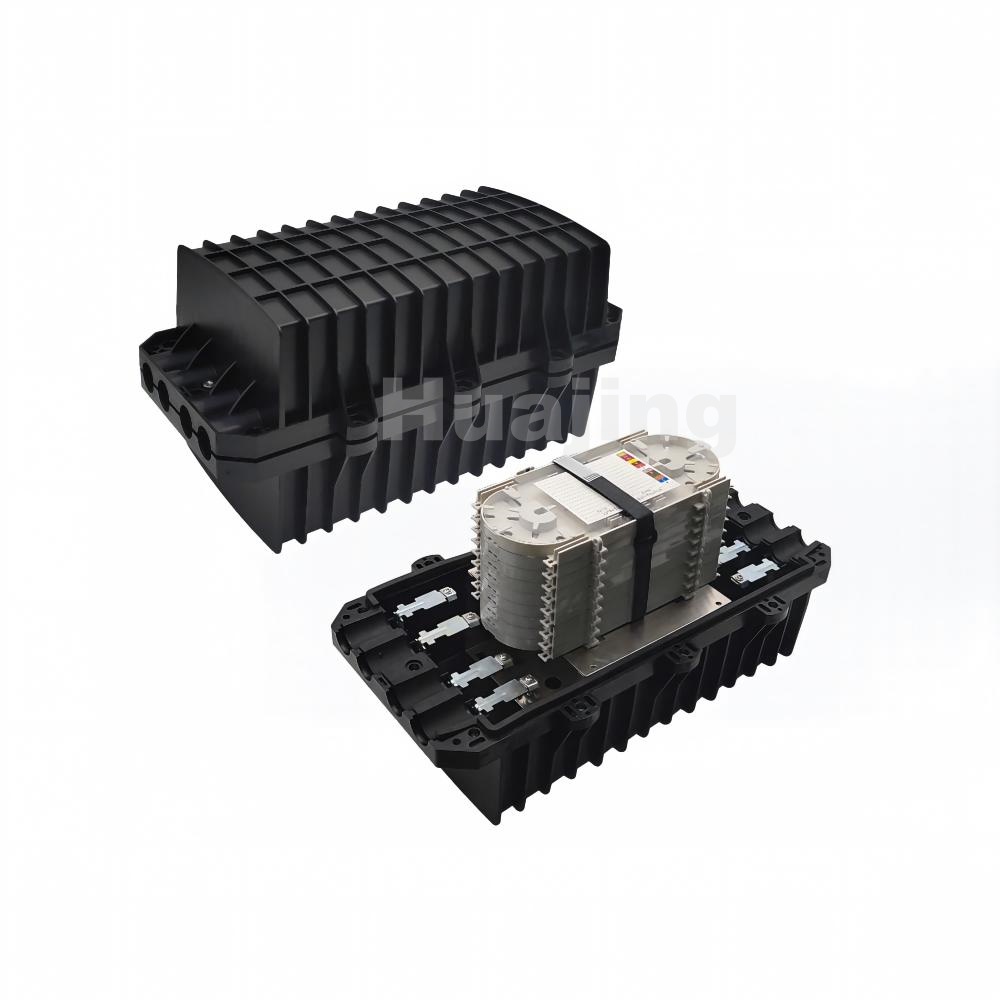

8 Cable Ports Horizontal Fiber Optic Closure With Max 432 Cores Capacity Featuring Stainless Steel Components For Optical Cable Joint Protection
8 Cable Ports Horizontal Fiber Optic Closure With Max 432 Cores Capacity Featuring Stainless Steel Components For Optical Cable Joint Protection
8 Cable Ports Horizontal Fiber Optic Closure With Max 432 Cores Capacity Featuring Stainless Steel Components For Optical Cable Joint Protection
8 Cable Ports Horizontal Fiber Optic Closure With Max 432 Cores Capacity Featuring Stainless Steel Components For Optical Cable Joint Protection
Specifications
Model Number :
GJS(04)-7C
Material :
ABS
Price :
17.1-22.5
Splice capacity :
432 cores
Delivery Time :
1-4weeks
Mountingoptions :
Pole, wall, and underground
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Cable diameter :
Ø10~Ø26mm
Place of Origin :
China
Cable port :
8
Brand Name :
Huajing
Model. :
GJS(04)-7C
MOQ :
100
Sealing method :
Silicon rubber
Description

Application:
The product can be applied in the straight line and branch line connections of optical cables. It can be laid overhead , in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.


Features:

  1. The case body is made from high-intensity engineering plastics(ABS).
  2. The case body and cable inlet/outlet are sealed with adhesive rubber strip (non-vulcanized) and belts, which have reliable sealing performance and are easy to reopen, use and maintain.
  3. Unique configuration of 4 type cable loops enables user to flexibly choose according to the outer diameter of optical cable, effectively enhancing the reliability of the cable inlet/outlet seal of the joint box
  4. Overlapping splice tray and the independent insulation make the fiber the configuration and expansion of the fiber cores flexible, convenient and safe.
  5. The metal components outside the box body are all made of stainless steel, which can meet various environments and be reused.
  6. Internal and external secondary optical cable fixing devices make the installation of optical cable more secure and convenient.




Techinical Index:

  • Optical fiber winding radius: ≥40mm
  • Extra loss of fiber tray:≤0.01dB
  • Working temperature: - 40℃ ~ + 70℃
  • Lateral pressure-resistance: ≥2000N / 10cm
  • Shock-resistance:≥20N.m
  • Protection level: IP67




Specification:

Model :GJS(04)-7C1GJS(04)-7C2GJS(04)-7C
Dimension(mm): W*D*H465*250*125465*250*180465*250*236
Weight (kg)3.43.65.4
Cable diameter (mm)Ø10~Ø26Ø10~Ø26Ø10~Ø26
Cable inlet / outlet4 / 44 / 44 / 4
Spice tray capacity (single core) / No.24 cores / 8pcs24 cores / 13pcs48 cores / 9 pcs
Capacity (single core)192 cores312 cores432 cores
Package size (mm )/ Qty.540×490×545 / 4pcs540×490×545 / 4pcs540×490×545 / 4pcs
Total outer package weight (kg)151623.2
