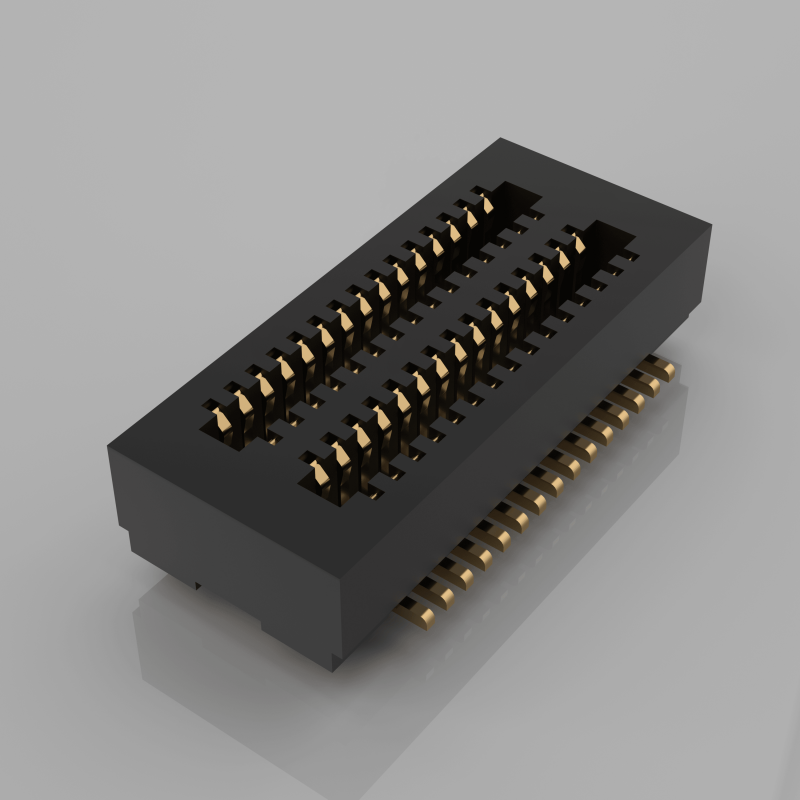

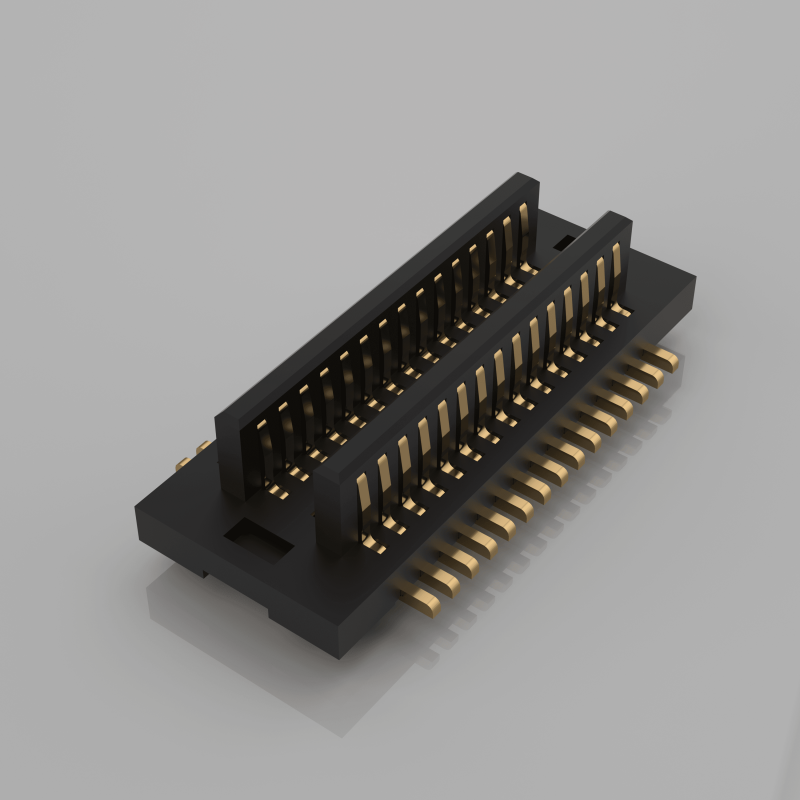

BTB 0.5mm Pitch Double Slot 20P 30P Board-to-Board Connector Male-Female Right-angle Connector for PCB Board

Product Highlights

✅ Blind‑Mating & Self‑Alignment anti‑misalignment design: Double‑slot guiding structure absorbs assembly offset tolerance, reduces mating failure risk during high‑volume SMT production ✅ High‑speed signal performance: Optimized dual‑slot contact geometry, stable signal integrity for high‑rate digital transmission

✅ Defined mated height options: Standard stacked height for right‑angle mating, clear Z‑dimension control for PCB stack‑up design

✅ 0.5mm high‑density pitch: Dual‑slot right‑angle SMT layout, saves PCB footprint for compact module design

✅ Dual‑contact double‑slot structure: Improved shock & vibration resistance, stable continuity under mechanical stress

Product Description

Cross‑Reference / Alternative

This double‑slot 0.5mm right‑angle BTB serves as a form‑fit‑function alternative for mainstream international series.

Note: Verify mated height, pin‑out, footprint and plating before direct drop‑in replacement.

• Replace for selected Molex, JAE, Amphenol 0.5mm dual‑slot right‑angle BTB series
• Custom footprint modification available if original vendor footprint cannot be matched
• We provide a footprint comparison document upon request for engineer validation

Product Feature

1. Double‑slot guiding mechanism supports blind‑mating & self‑alignment, tolerates minor assembly offset, lowers assembly reject rate
2. Dual‑slot dual‑contact contact system, anti‑vibration & anti‑shock, maintains stable connection under vibration environment
3. Right‑angle SMT termination, compact outline, fits side‑by‑side PCB interconnection
4. High‑temperature LCP insulator, withstands standard SMT reflow soldering without housing deformation
5. Multiple mated‑height options, flexible PCB stack‑up solution for different mechanical enclosure constraints
6. Gold‑plated contact area for long‑term stable signal transmission; tin‑plated solder tail ensures consistent SMT wetting performance
