0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
Specifications
MOQ :
1000pcs
Delivery Time :
5-7 days
Operation Temperature :
-40~+105℃
Price :
Negotiable price
Pin Length :
Customization
Packaging Details :
vacuum package,boxes in carton
Model Number :
BTB connector
Gender :
Female
Payment Terms :
L/C,T/T,Payyal
Supply Ability :
3KK pcs
Certification :
CE,SGS,ROHS,ISO9001
Function :
Used in consumer products
Place of Origin :
Guangdong,China
Current Rating :
3A
Brand Name :
XTKCONN
Application :
Power
Description

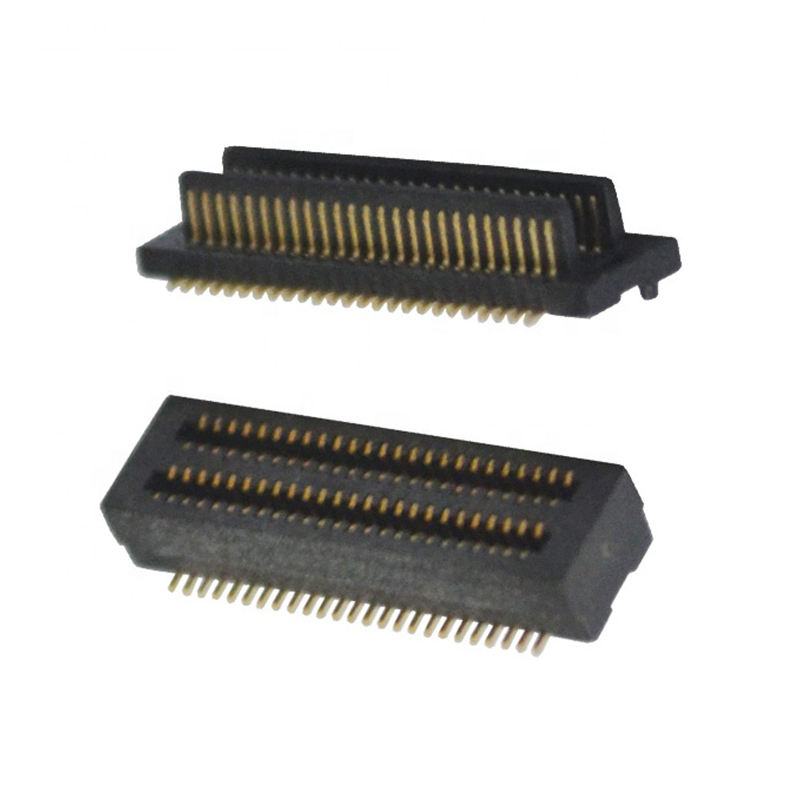

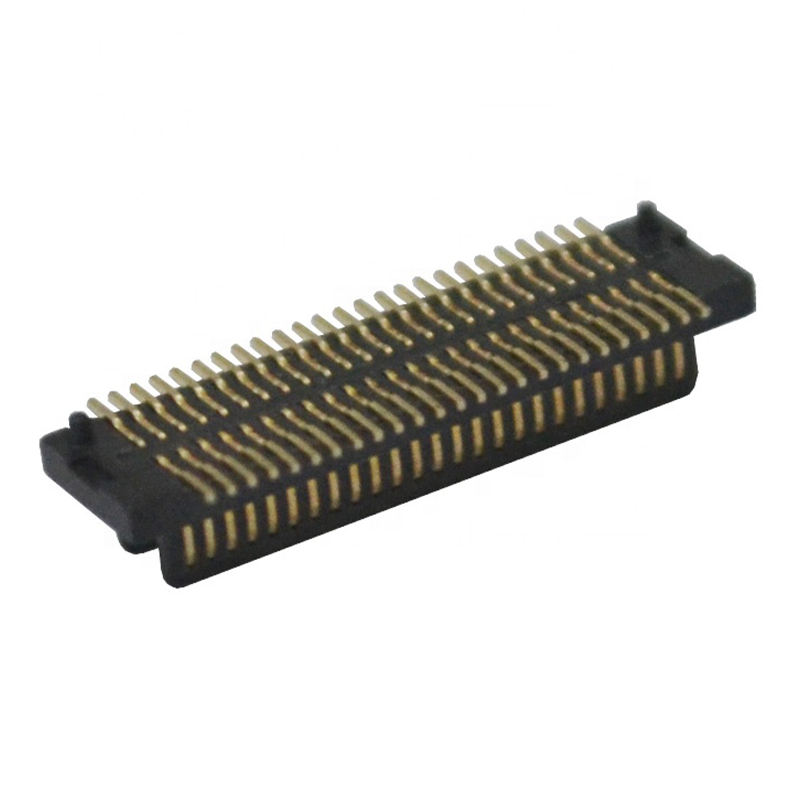

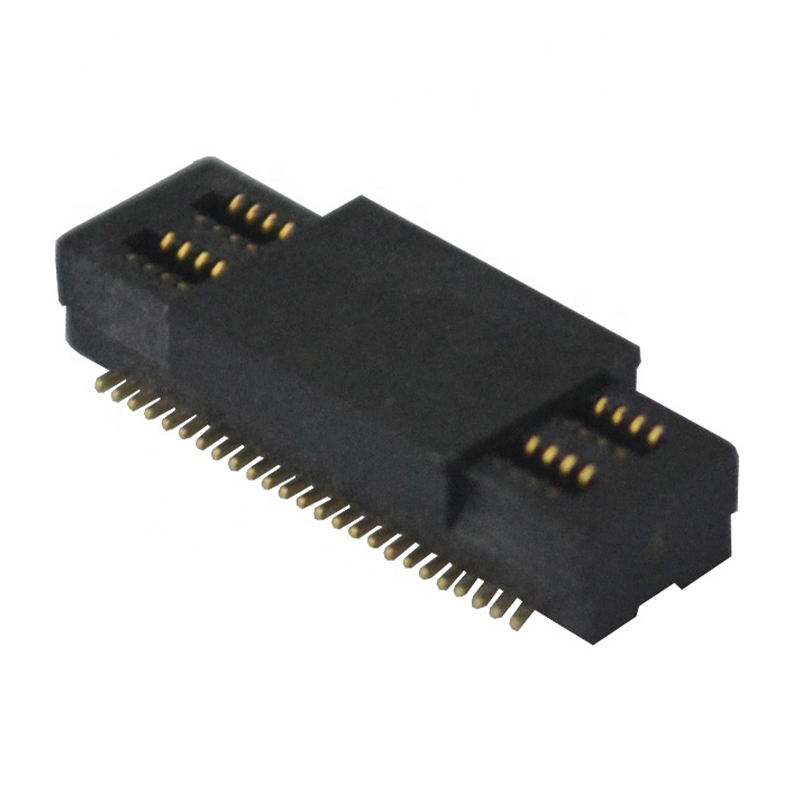

0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector



Product Description

1. MATERIAL:

1-1.SHELL:
BRASS
1-2.HOUSING:
lcp+30%G.F. UL94 V-0 BLACK
1-3.TERMINAL:
Phosphor Bronze
2. PLATING SPECIFICATION

2-1.TERMINAL:
GOLD PLATED/3U"/6U"/15U"/30U"
2-2.SHELL:
NICKEL PLATED
3. MECHANICAL PERFORMANCE

3-1.INSERTION FORCE:
5N~20N.
3-2.WITHDRAWAL FORCE:
INITIAL 8N~20N, AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:
750 Cycles MIN.
4. ELECTRICAL PERFORMANCE

4-1.CURRENT RATING:
1.5A.
4-2.CONTACT RESISTANCE:
30milliohm Max
4-3.INSULATION RESISTANCE:
500 MΩ MIN @ 500 V DC.
4-4.DIELECTRIC WITHSTAND VOLTAGE:
100V/AC.
5. OPERATING TEMPERATURE RANGE:
-40℃ to +85℃
6.RoHS COMPLIANT OR HALOGEN-FREE COMPLIANT.

The board-to-board connector is the most powerful connector product of all connector products. It is mainly used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, etc. Military manufacturing and other industries. At present, the main spacing of board-to-board connectors are 0.4mm 0.5mm, 0.8mm, 1.00m, 1.27mm and so on.

0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector

Features

  • 0.5mm fine pitch design for high-density PCB layouts
  • 50 positions (50P) supporting multi-signal interconnection
  • Male and Female mating structure for flexible board stacking designs
  • SMT mounting type compatible with automated assembly processes
  • Compact design for space-limited electronic applications
  • Suitable for modular PCB architectures
  • Available with different mating heights according to application requirements


Payment term and delivery
1. Delivery Time: 3-15 working days after order confirmed and the payment received.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, PayPal, Western Union, or other methods.
5. Samples: Samples are available to check the quality & specification, and it is free for 1-30 pcs.
6. Packing: Inside:PE bag, Tray, Tube, Box, Tape+Reel. Outside: export carton
7. Shipping method: UPS, DHL, FEDEX, EMS & air transportation & sea transportation.



Applications

Industrial Electronics

  • Industrial control boards
  • Automation equipment
  • Embedded controllers
  • Measurement instruments

Communication Equipment

  • Network devices
  • Communication modules
  • Signal processing units

Consumer Electronics

  • Smart terminals
  • Portable electronic devices
  • Display modules
  • Embedded systems

AI & Computing Related Hardware

Potential applications include:

  • AI edge computing devices
  • Embedded AI controllers
  • Intelligent terminal hardware
  • Compact computing modules



Advantage

Compact 0.5mm Pitch Design for Space-Saving PCB Layout

The 0.5mm pitch structure allows more signal contacts to be integrated into a limited PCB area compared with conventional larger pitch connectors.

This makes it suitable for:

  • Compact industrial controllers
  • Embedded computing systems
  • Communication modules
  • Smart electronic devices

Fine-pitch BTB connectors are commonly selected for applications requiring reduced PCB size and higher component density.

Reliable PCB-to-PCB Modular Connection

The male/female mating design enables direct connection between two PCBs, supporting modular electronic architectures.

Typical design benefits include:

  • Reduced wiring requirements
  • Simplified internal assembly
  • Improved space utilization
  • Easier module integration

SMT Compatible for Automated Manufacturing

The SMT termination structure allows compatibility with modern PCB assembly lines, including automated placement and reflow soldering processes.

This helps manufacturers optimize:

  • Production efficiency
  • Assembly consistency
  • PCB manufacturing workflow
Send your message to this supplier
Send Now

0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector

Ask Latest Price
Watch Video
Product Detail
MOQ :
1000pcs
Delivery Time :
5-7 days
Operation Temperature :
-40~+105℃
Price :
Negotiable price
Pin Length :
Customization
Packaging Details :
vacuum package,boxes in carton
Contact Supplier
video
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector
0.5mm Pitch BTB Male/Female 50P SMT Board-to-Board Connector

Shenzhen Xietaikang Precision Electronic Co., Ltd.

Verified Supplier
6 Years
guangdong, shenzhen
Since 1989
Business Type :
Manufacturer, Exporter
Main Products :
FFC FPC Connector, Card Connectors, Type C Female Connector
Total Annual :
14,000,000-21,000,000
Employee Number :
300~450
Certification Level :
Verified Supplier
