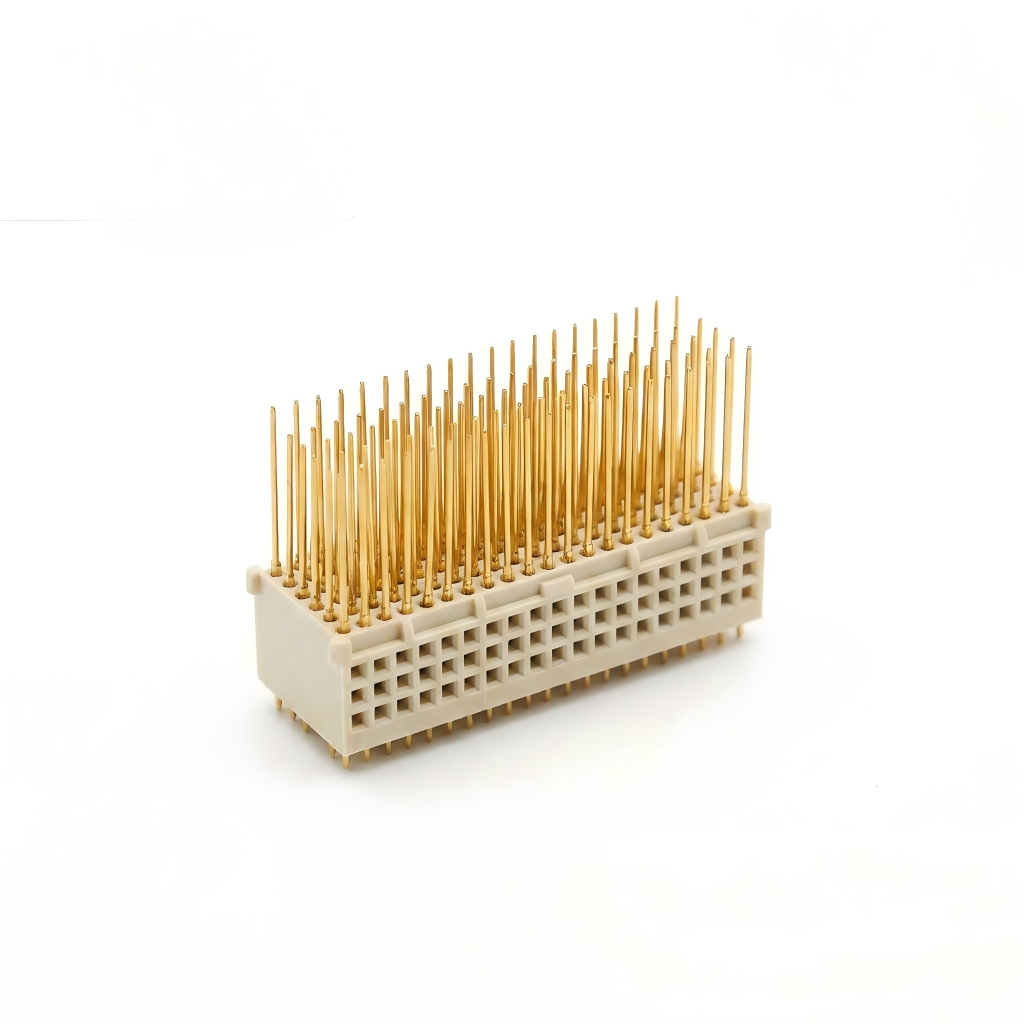

BTB 95 Pin Female Copper Alloy Press-fit Type Fish-eye Header Connector High-Speed Server Mainboard 1.5A 12V
BTB 95 Pin Female Copper Alloy Press-fit Type Fish-eye Header Connector High-Speed Server Mainboard 1.5A 12V
Specifications
MOQ :
1000pcs
Delivery Time :
5-7 days
Operation Temperature :
-40~+105℃
Price :
Negotiable price
Pin Length :
Customization
Packaging Details :
vacuum package,boxes in carton
Model Number :
BTB connector
Gender :
Female
Supply Ability :
3KK pcs
Payment Terms :
L/C,T/T,Payyal
Certification :
CE,SGS,ROHS,ISO9001
Function :
Used in consumer products
Place of Origin :
Guangdong,China
Current Rating :
3A
Brand Name :
XTKCONN
Application :
Power
Description

BTB 95 Pin Female Copper Alloy Press-fit Type Fish-eye Header Connector High-Speed Server Mainboard 1.5A 12V



Product Description

Item Specification
Product Type Board to Board Connector / BTB Connector
Product Name 2*5 Pin 0.4mm Pitch Board to Board Connector
Connector Type PCB to PCB Interconnect Connector
Pitch 0.40mm
Number of Positions 10 Pins (2 Rows × 5 Pins)
Contact Arrangement Dual Row
Mounting Type SMT (Surface Mount Technology)
Connector Orientation Vertical / Stacking Type (Based on mating design)
Contact Material Phosphor Bronze (Typical for Fine Pitch BTB Series)
Insulator Material High Temperature Thermoplastic (LCP Typical)
Contact Plating Gold Plating / Gold Flash (According to configuration)
Application High-density PCB interconnection
Assembly Process Automated SMT Assembly
Mating Structure Plug & Receptacle Pair
Pitch Category Fine Pitch Connector
Operating Temperature According to product configuration
Electrical Rating Depends on terminal design and customer requirement


Board-to-board connector is the most powerful connector product of all connector products. It is mainly used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, etc. Military manufacturing and other industries. At present, the main spacing of board-to-board connectors are 0.4mm 0.5mm, 0.8mm, 1.00m, 1.27mm and so on.

BTB 95 Pin Female Copper Alloy Press-fit Type Fish-eye Header Connector High-Speed Server Mainboard 1.5A 12V

Features

Ultra-Fine 0.4mm Pitch Design

The 0.4mm pitch structure allows more contacts to be integrated into a smaller footprint compared with conventional board-to-board connectors, making it suitable for compact PCB designs.

Space-Saving PCB Interconnection

The low-profile BTB structure helps reduce the installation area between two PCBs, supporting thinner and more compact electronic product designs.

SMT Compatible for Automated Assembly

The surface mount design supports modern PCB assembly processes, including automated pick-and-place production lines.

High-Density Signal Connection

The 2-row 10-pin configuration provides a compact signal interconnection solution for communication between PCB modules.


Payment term and delivery
1. Delivery Time: 3-15 working days after order confirmed and the payment received.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, PayPal, Western Union or others method.
5. Samples: Samples are available to check the quality & specification, and it is free for 1-30 pcs.
6. Packing: Inside:PE bag, Tray, Tube, Box, Tape+Reel. Outside: export carton
7. Shipping method: UPS, DHL, FEDEX, EMS & air transportation & sea transportation.


Applications

Consumer Electronics

  • Smartphones
  • Tablets
  • Wearable devices
  • Portable terminals

Industrial Electronics

  • Industrial controllers
  • Embedded systems
  • Measurement equipment
  • Automation modules

AI & Smart Hardware

  • AI edge devices
  • Intelligent control terminals
  • Compact computing modules
  • Smart cameras

Medical Electronics

  • Portable medical instruments
  • Diagnostic equipment
  • Monitoring devices

Why Choose 0.4mm Pitch BTB Connector?

For product engineers and purchasing teams, the key evaluation factors are:

1. Space Efficiency

0.4mm pitch helps achieve higher contact density within limited PCB space.

2. Manufacturing Compatibility

SMT mounting supports automated production processes and simplifies PCB assembly.

3. Flexible Module Design

BTB connectors enable modular PCB architectures, allowing different circuit boards to be combined within compact equipment.

4. Application Adaptability

Suitable for industries requiring compact design, high-density interconnection, and reliable PCB integration.
