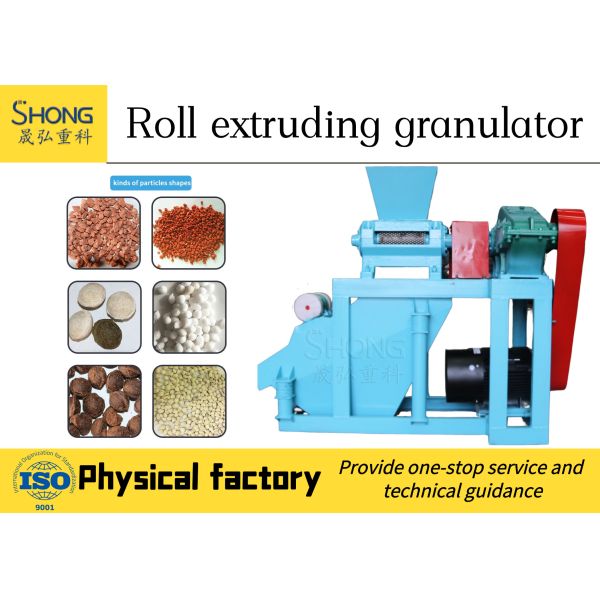

Dry Type Fertilizer Granulator Machine with 5T/H Capacity and 10mm Pellet Double Roller Extrusion Granulator
Dry Type Fertilizer Granulator Machine with 5T/H Capacity and 10mm Pellet Double Roller Extrusion Granulator
Dry Type Fertilizer Granulator Machine with 5T/H Capacity and 10mm Pellet Double Roller Extrusion Granulator
Dry Type Fertilizer Granulator Machine with 5T/H Capacity and 10mm Pellet Double Roller Extrusion Granulator
Dry Type Fertilizer Granulator Machine with 5T/H Capacity and 10mm Pellet Double Roller Extrusion Granulator
Dry Type Fertilizer Granulator Machine with 5T/H Capacity and 10mm Pellet Double Roller Extrusion Granulator
Specifications
Brand Name :
Shenghong
Model Number :
SDZ-I-1.0
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 Days
Packaging Details :
Package or Container
Material Moisture :
2%-5%
Powder :
15-22KW
Material :
Carbon steel
Weight :
Customized
Capacity :
1-3t/h
Suit for :
NPK Compound fertilizer
Warranty :
12 Months
Pellet Diameter :
2-10mm
Usage :
Making Fertilizer Granules
Speed :
Adjustable
Raw Material :
NPK,ammonium nitrate, etc.
Brandn :
SHENGHONG
Granulation Type :
Dry Type
Additional Capability :
Compound Fertilizer Granulator
Granules Shape :
Oblate
Drying After Granulator :
No Need
Using :
Fertilizer Granulator Machine
Description
Dry Compound Fertilizer Granulator Machine 5T/H With 10mm Pellet
Extrusion Fertilizer Granulator Machine, Double Roller Granulator
Introduction of Double Roller Press Granulator
Working principle: Adopts the design solution of extrusion sliding model. The raw materials pass through double rollers, then enter into the scattering room and come out as granulation. A sieving mechanism is mounted at the bottom of the machine, customized according to client's requirements. Finally, qualified granules are sieved out while remaining materials return to the mixer for re-granulation.
Equipment Features
  • Double shaft power output - each shaft drives its roller through coupling to perform synchronous work in opposite directions, resulting in better granule formation and higher strength
  • Simple and convenient contraposition adjustment of ball socket design - clients can easily adjust themselves with provided roller adjustment drawings and operation steps
  • All machines undergo professional testing and trial production before leaving the factory
Technical Parameters
Model Capacity (t/h) Power (kw) Rotation Speed (r/min) Overall Dimensions (mm)
SDZ-I-1.01-1.511Speed adjustable1420×750×1310
SDZ-I-2.01.5-2.518.5Speed adjustable1570×920×1450
SDZ-I-3.02.5-3.522Speed adjustable1750×870×1530
SDZ-I-4.03.5-4.545Speed adjustable1900×1050×1680
SDZ-II-1.01-215Speed adjustable1340×930×1310
SDZ-II-2.01.5-2.518.5Speed adjustable1750×870×1530
SDZ-II-3.02.5-3.522Speed adjustable1900×1050×1680
Granule Strength and Appearance Type
Shape of finished productsOval, irregular, wheat shaped, etc. Can be customized according to customer requirements
Material moisture requirementNot more than 10%
The rate of ball formation95%
Output1-4t/h (can combine multiple granulators to increase output)
Granule size3-8mm (popular market granule diameter: 2.8-4mm)
Product Introduction
The electric motor drives the pulley, and the transmission belt is transmitted through the speed reducer to a pair of two high-pressure roller bodies with a sliding mold shell to perform relative work.
The SDZ-I extruder has two rollers interacting with each other by the work of a pair of split gears.
The two rollers of the SDZ-II extruder are driven directly by two output shafts on a dedicated reducer to achieve the purpose of extrusion.
During production, raw materials enter the hopper and are pressed and formed by the high-pressure roller body. After the mold is released, it flows to the crushing and forming part in the lower part of the roller body.
The power of crushing and forming is the relative movement of a pair of crusher rollers driven by the sprocket of the active press roller shaft via a chain drive.
After crushing and screening in the working chamber, the finished particles pass through the screen to the discharge then come out of the machine.
Working Flow
The roller is first forged and processed from special materials into roughcast, then machined by numerical lathe and milling machine to become finished product. The roller features rust resistance, acid and alkali resistance, long service life, and resistance to cracking.
Input (if blocked, use chain crusher to deal with) → Granulation → Screening (select the right sieving hole diameter) → Finished granules → Next process (optional equipment: 1. Screening machine: for more accurate granule size; 2. Coating machine: improves granule appearance; 3. Weighing and package: facilitates product sale and transportation)
