SHZ Series Hydraulic Roller Extrusion Granulator for NPK Compound Fertilizer with Hydraulic System, No Drying Needed, and One-Step Forming
SHZ Series Hydraulic Roller Extrusion Granulator for NPK Compound Fertilizer with Hydraulic System, No Drying Needed, and One-Step Forming
Specifications
Brand Name :
SHENGHONG
Model Number :
SHZ
Certification :
SGS BV ISO
Place of Origin :
Zhengzhou China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20 pcs per day
Delivery Time :
15 work days
Packaging Details :
Package or Container
Material :
Carbon steel
Model :
1mm-15cm
Weight :
1.2T
Capacity :
1-4 t/h
Suit for :
NPK Compound fertilizer
Warranty :
12 Months
Pellet Diameter :
2-10mm
Voltage :
380V
Usage :
Making fertilizer granules
Description

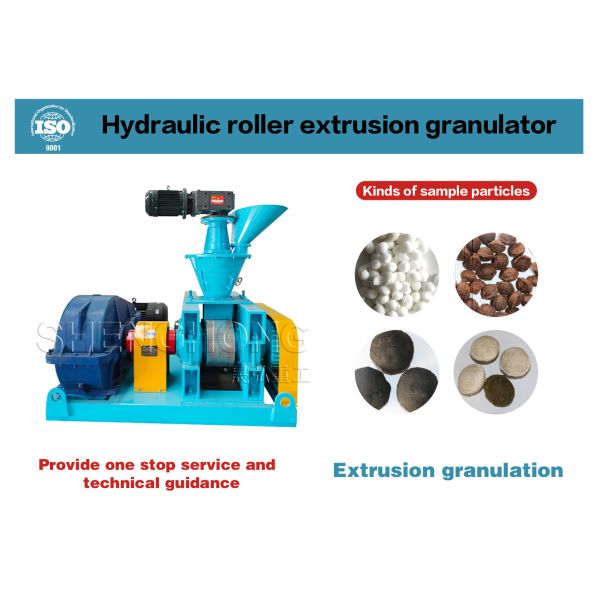

NPK Compound Fertilizer Granulation Machine SHZ Series Hydraulic Roller Extrusion Granulator
Product Overview

The SHZ series hydraulic roller extrusion granulator is a dry-type granulation machine that combines hydraulic power with mechanical extrusion. It is designed to transform powder materials into dense, uniform granules in a single pass — without drying or binding agents.

SHZ Series Hydraulic Roller Extrusion Granulator for NPK Compound Fertilizer with Hydraulic System, No Drying Needed, and One-Step Forming
Typical Applications
  • Compound fertilizer production
  • Pharmaceutical powder granulation
  • Feed additive processing
  • Chemical material compacting
  • Rare earth and metallurgical powder treatment
  • Coal dust briquetting
  • Environmental waste recycling
Main Features
Hydraulic System
Provides adjustable, stable pressure for consistent granule quality
No Drying Needed
Room temperature operation saves energy and reduces equipment costs
One-Step Forming
Powder to granules directly, simplifying the production line
Strong Rollers
Made of wear-resistant, anti-corrosion alloy for long service life
Wide Particle Range
3-60 mm adjustable output size
High Output
2-10 t/h capacity covering small to medium-large scale production
Operational Principle

The motor drives two rollers in opposite directions. The hydraulic system applies controlled pressure to the rollers. Powder materials are fed in, squeezed into dense sheets, then crushed, shaped, and screened into finished granules. Undersized particles are automatically returned for re-granulation.

Technical Specifications
Model Power (kW) Speed (r/min) Capacity (t/h) Granule Size (mm) Dimensions (L×W×H) (mm)
SHZ-30 55 1450 2-4 3-30 2300×2480×2050
SHZ-45 75 1480 3-6 3-50 2580×2100×2110
SHZ-60 90 1485 5-10 5-60 3000×2800×2200
Customer Benefits
  • Lower energy bills - No drying stage means less power consumption
  • Less waste - High granulation rate with recyclable fines
  • Easy to operate - User-friendly controls and low noise level
  • Simple maintenance - Quick roller access and durable seals
